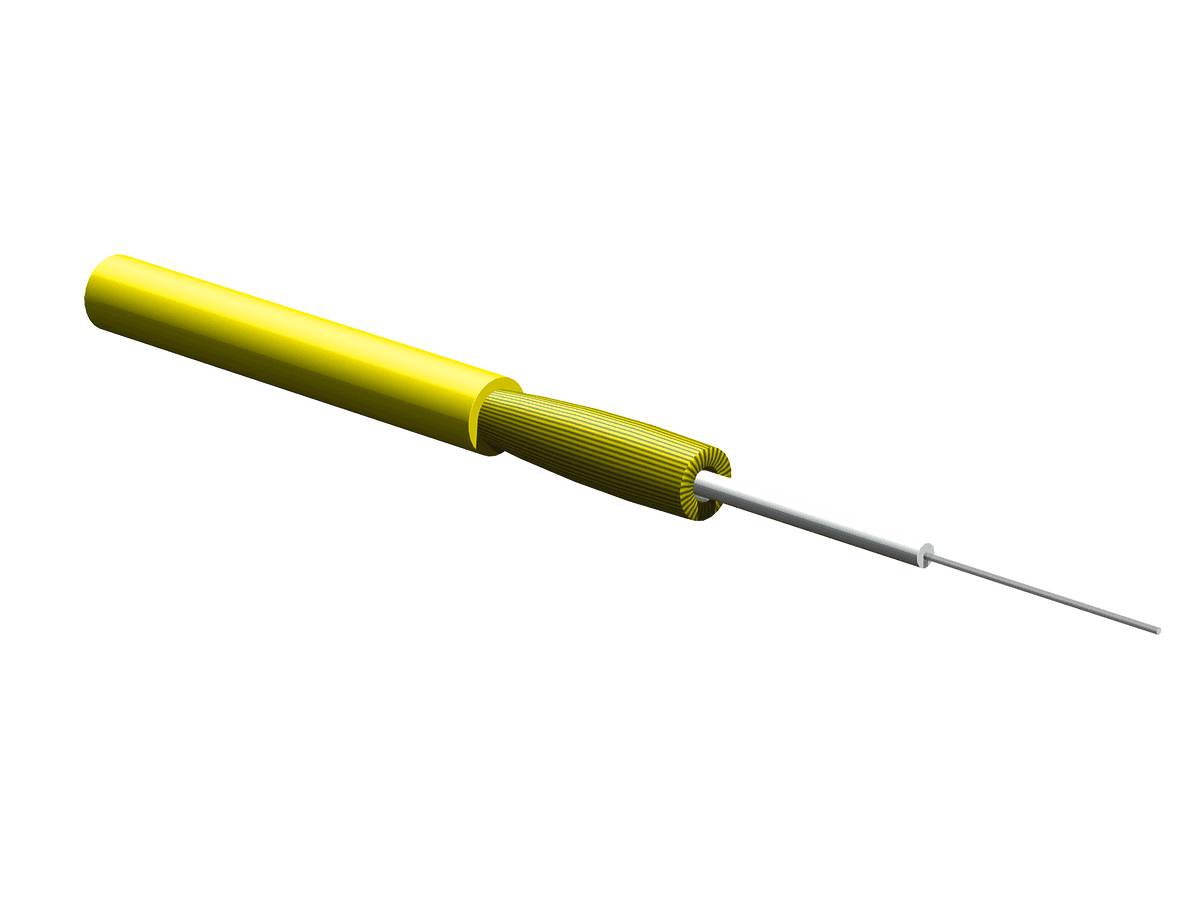

Corning 001U28-31131-29, Plenum 1F Single-mode (OS2) ClearCurve® Compact Drop Indoor Tight-Buffered Cable

Corning 001U28-31131-29, Plenum 1F Single-mode (OS2) ClearCurve® Compact Drop Indoor Tight-Buffered Cable

High-performance Corning 001U28-31131-29 Plenum 1F Single-mode (OS2) ClearCurve® Compact Drop Indoor Tight-Buffered Cable designed for various indoor applications.

Specifications:

• Product Number: 001U28-31131-29
• Cable Type: Single Tube
• Environment: Indoor
• Product Type: Interconnect
• Fiber Category: ClearCurve® ZBL
• Flame Rating: Plenum (OFNP)
• Application: Horizontal, Plenum, Riser, Drop
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNP, FT-6
• Design and Test Criteria: ANSI/ICEA S-104-596, Telcordia GR-409, CSA FT-6

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Temperature Range, Operation: -20 °C to 70 °C (-4 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Fiber Count: 1
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Fiber Coloring: White
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 66 N (14.84 lbf)
• Max. Tensile Strength, Short-Term: 220 N (49.46 lbf)
• Min. Bend Radius Installation: 5 mm (0.2 in)
• Min. Bend Radius Operation: 5 mm (0.2 in)
• Nominal Outer Diameter: 2.9 mm (0.11 in )

Optical Characteristics:

• Fiber Code: U
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: ClearCurve® ZBL
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU
