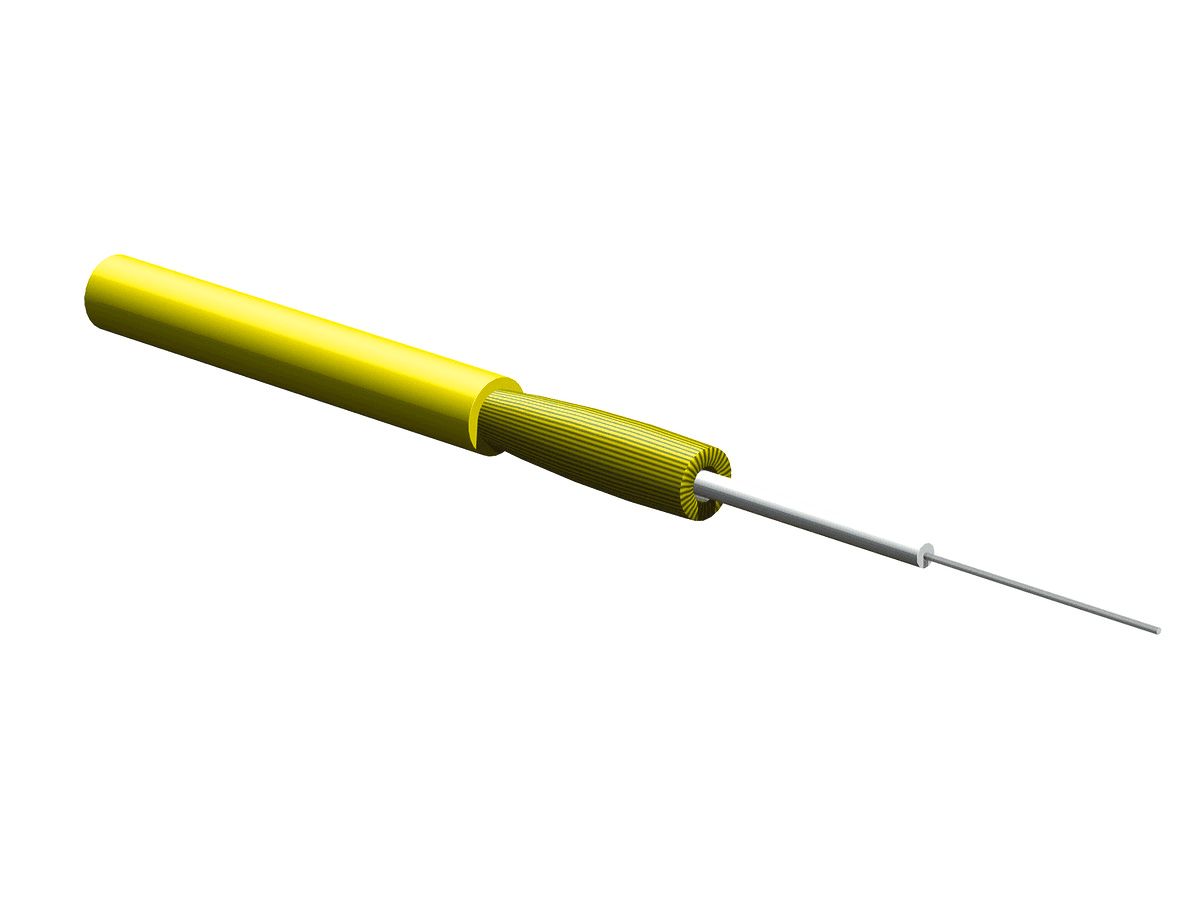

Corning 001U31-31131-B1, Single-Fiber Tight-Buffered Cable, Riser 2.9 mm diameter, Single-mode (OS2) Reel In A Box

Corning 001U31-31131-B1, Single-Fiber Tight-Buffered Cable, Riser 2.9 mm diameter, Single-mode (OS2) Reel In A Box

General Specifications

• Product Number: 001U31-31131-B1
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Interconnect
• Fiber Category: ClearCurve® ZBL
• Flame Rating: Riser (OFNR)
• Application: Horizontal, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Fiber Count: 1
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Tight Buffer Color: White
• Flame Rating: Riser (OFNR)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 12 N (2.7 lbf)
• Max. Tensile Strength, Short-Term: 40 N (8.99 lbf)
• Min. Bend Radius Installation: 43.5 mm (1.71 in)

Optical Characteristics:

• Fiber Code: U
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: ClearCurve® ZBL
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.B3

Dimensions:

• Cable Weight: 65 kg/km (43.68 lb/1000 ft)

Shipping Dimensions:

• Height: 393.7 cm
• Width: 393.7 cm
• Depth: 387.3 cm
