Corning 001UB4-14101-F9, Dielectric 1 F SST-Drop™ ClearCurve® ZBL Single-mode Indoor/Outdoor Gel-Free Cable OS2

Corning 001UB4-14101-F9, Dielectric 1 F SST-Drop™ ClearCurve® ZBL Single-mode Indoor/Outdoor Gel-Free Cable OS2

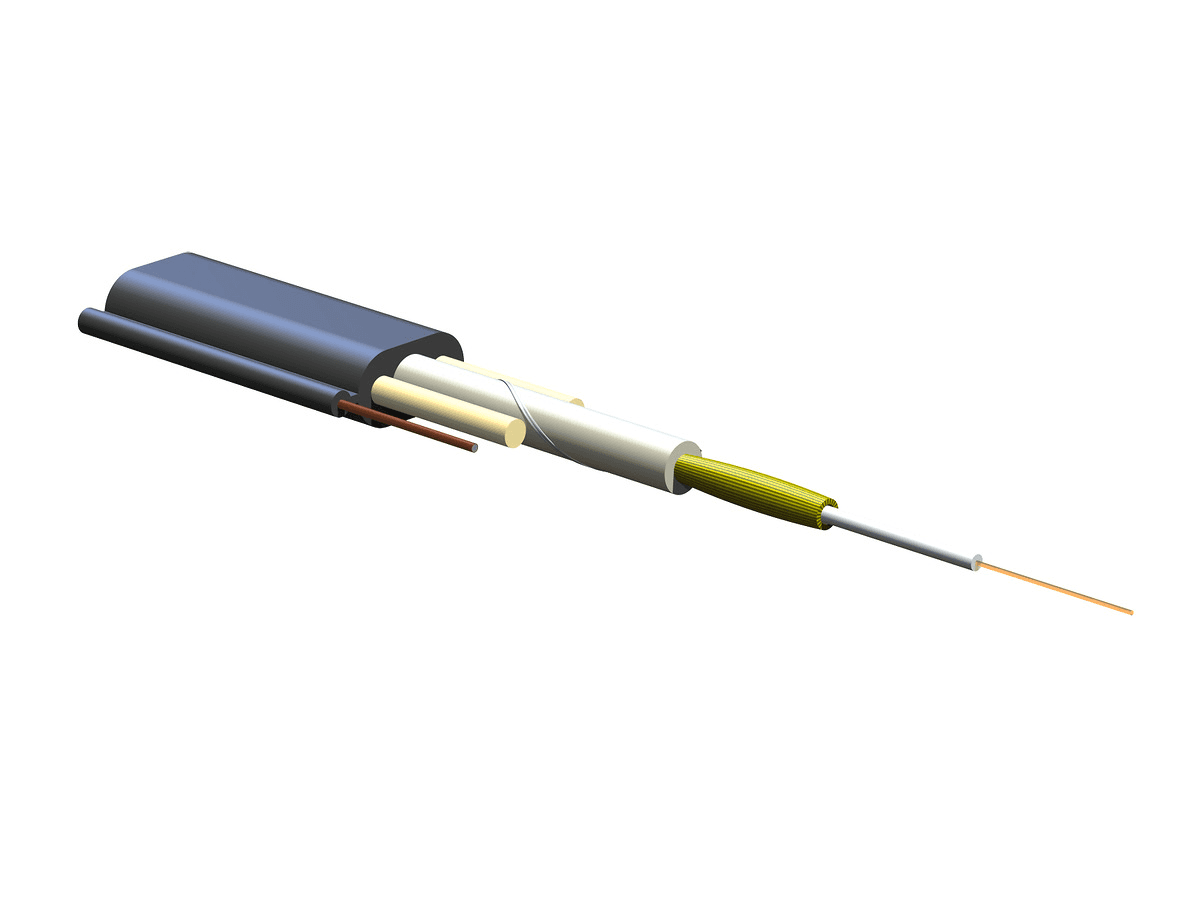

Summary: Corning 001UB4-14101-F9 is a self-supporting, figure-8 single-mode indoor/outdoor gel-free cable with ClearCurve® ZBL fiber category, suitable for aerial, duct, direct buried, and drop applications.

General Specifications:

• Product Number: 001UB4-14101-F9
• Cable Type: Single Tube
• Environment: Indoor/Outdoor
• Product Type: Self-Supporting, Figure-8
• Fiber Category: ClearCurve® ZBL
• Application: Aerial, Duct, Direct Buried, Drop
• Cable geometry: Other

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: Compact Drop listed to National Electrical Code® (NEC®) OFNR, FT-4
• Design and Test Criteria: ANSI/ICEA S-110-717, Telcordia GR-20-CORE, Telcordia GR-409-CORE
• Compliance: Not Available

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Fiber Count: 1
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Tensile Strength Elements and/or Armoring - Layer 2: Dielectric strength members
• Inner Jacket Material: Flame-retardant
• Subunit Color: Natural
• Subunit Diameter: 2.9 mm (0.11 in)
• Tight Buffer Color: White
• Cable Print Unit of Measure: Feet

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
• Min. Bend Radius Operation: 80 mm (3.15 in)
• Nominal Outer Diameter: 8.1 mmx 4.5 mm (0.32 inx 0.18 in )

Optical Characteristics:

• Fiber Code: U
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: ClearCurve® ZBL
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.30 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.B3
• Fiber Core Diameter: 8.2 µm
• Cladding diameter: 125 µm
• Coating diameter: 242 µm
• Dispersion @ 1550 nm: ≤ 18 [ps/(nm*km)]
• Dispersion @ 1625 nm: ≤ 23 [ps/(nm*km)]
• Cable cutoff wavelength: 1260 nm
• Mode-Field Diameter at 1310 nm: 8.6 µm
• Mode-Field Diameter at 1550 nm: 9.65 µm

Dimensions:

• Cable Weight: 32 kg/km (21.5 lb/1000 ft)

Ordering Information:

• Convenient Contractor-sized Packaging Length: 609.6 m (2000 ft) gross weight 72 lbs., no specialized equipment needed
