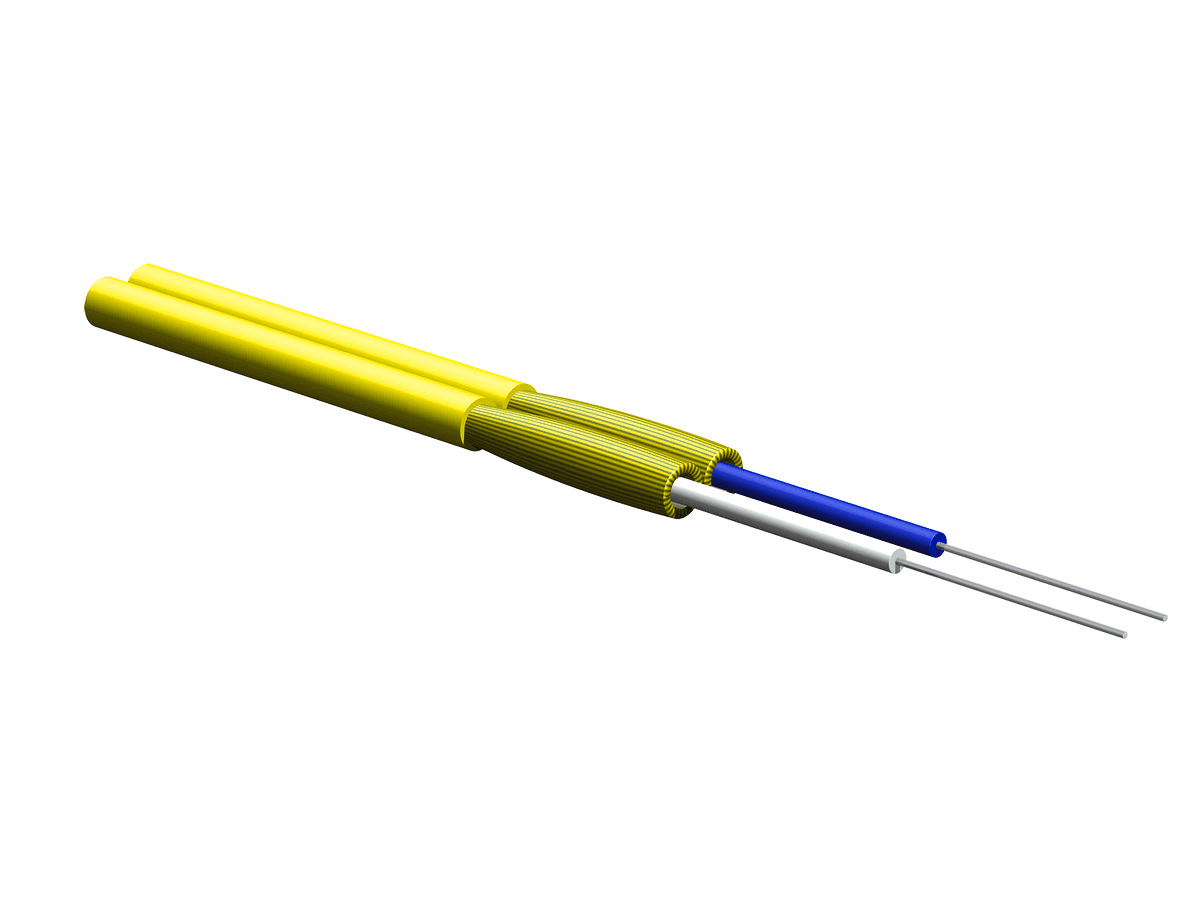

Corning 002E58-31331-24, Plenum 2 F Zipcord Tight-Buffered Cable, Single-mode (OS2), 2.0mm Diameter

Corning 002E58-31331-24, Plenum 2 F Zipcord Tight-Buffered Cable, Single-mode (OS2), 2.0mm Diameter

High-quality Corning 002E58-31331-24 Plenum 2 F Zipcord Tight-Buffered Cable designed for indoor interconnect applications. This single-mode (OS2) cable with a 2.0mm diameter is ideal for horizontal, plenum, and riser installations.

Specifications:

• Product Number: 002E58-31331-24
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Interconnect
• Fiber Category: Single-mode (OS2)
• Flame Rating: Plenum (OFNP)
• Application: Horizontal, Plenum, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Fiber Count: 2
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Number of Subunits: 2
• Tight Buffer Color: Blue, White
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Short-Term: 220 N (49.46 lbf)
• Min. Bend Radius Installation: 50 mm (1.97 in)
• Min. Bend Radius Operation: 10 mm (0.39 in)

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 74 kg/km (49.
