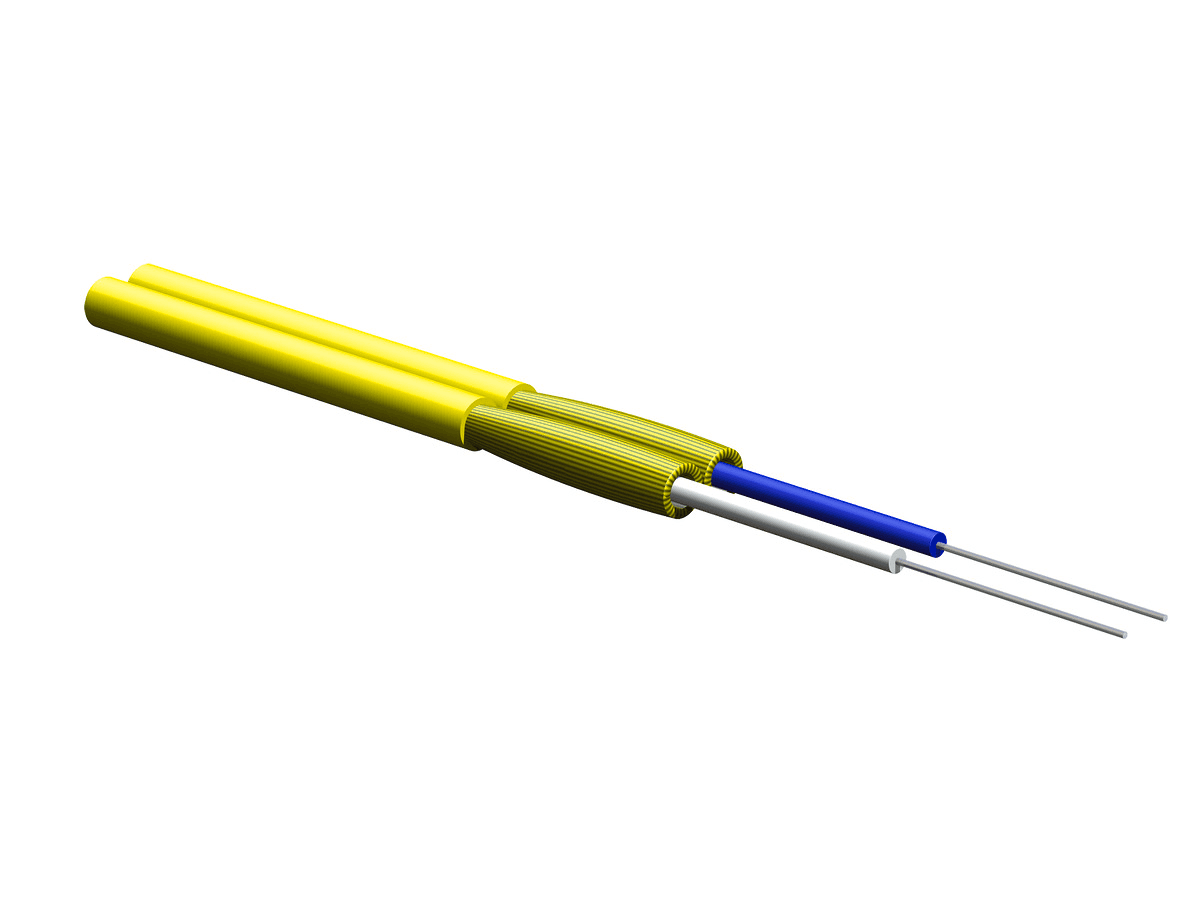

Corning 002E58-31331-B4, Plenum 2 F Single-mode (OS2) Zipcord Tight-Buffered Cable Reel In A Box

Corning 002E58-31331-B4, Plenum 2 F Single-mode (OS2) Zipcord Tight-Buffered Cable Reel In A Box

Summary: This Corning 002E58-31331-B4 cable reel in a box features a single-mode (OS2) tight-buffered cable suitable for indoor interconnect applications. With plenum flame rating and round cable geometry, it meets various standards and environmental conditions for reliable performance.

General Specifications:

• Product Number: 002E58-31331-B4
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Interconnect
• Fiber Category: Single-mode (OS2)
• Flame Rating: Plenum (OFNP)
• Application: Horizontal, Plenum, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNP, CSA FT-6
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Fiber Count: 2
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Number of Subunits: 2
• Tight Buffer Color: Blue, White
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Short-Term: 220 N (49.46 lbf)
• Min. Bend Radius Installation: 50 mm (1.97 in)
• Min. Bend Radius Operation: 10 mm (0.39 in)

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 74 kg/km (49.73 lb/1000 ft)

Shipping Dimensions:

• Height: 393.7 cm
• Width: 393.7 cm
• Depth: 387.3 cm

Ordering Information:

• Packaging Method: Reel in a Box
