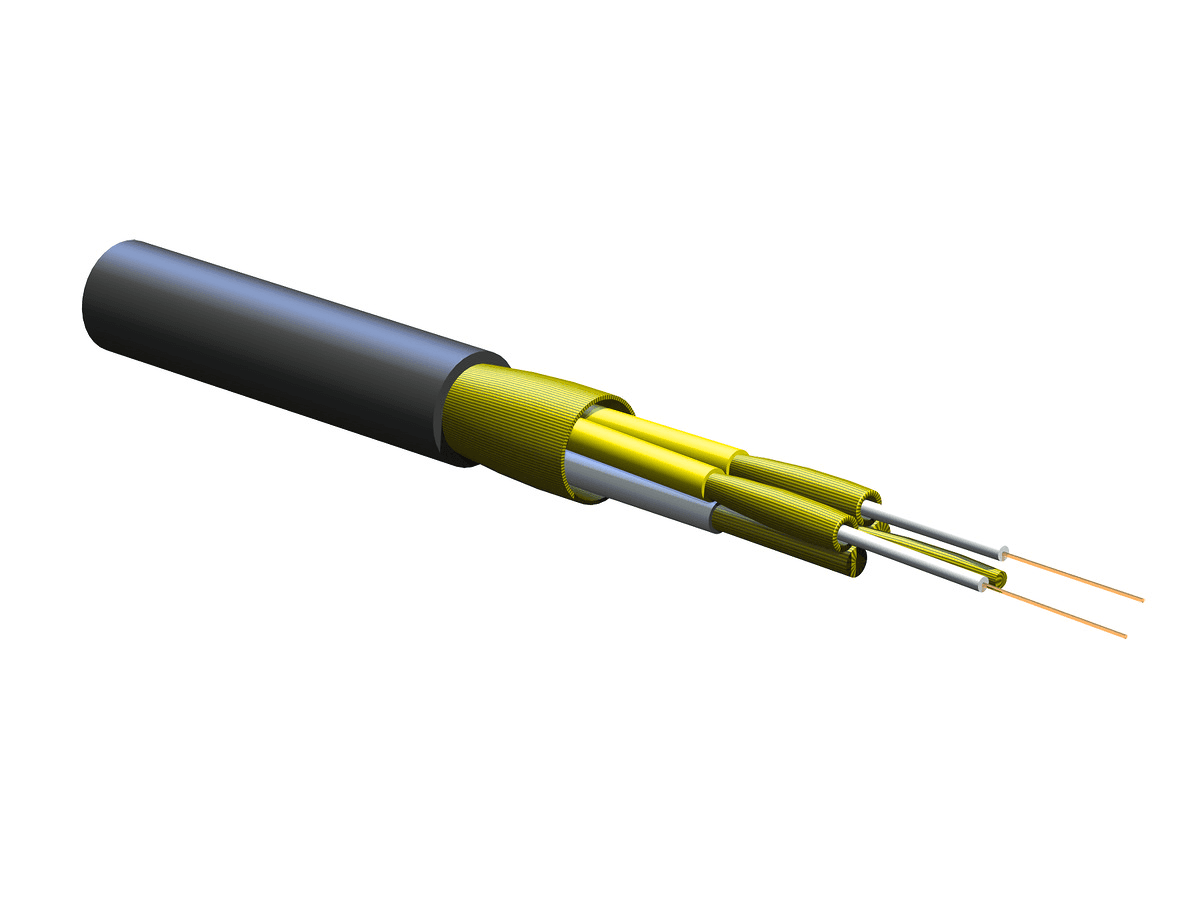

Corning 002E6F-31331-29, Riser 2 F FREEDM® Single-mode (OS2) Fan-Out Tight-Buffered Cable

Corning 002E6F-31331-29, Riser 2 F FREEDM® Single-mode (OS2) Fan-Out Tight-Buffered Cable

Summary: This Corning 002E6F-31331-29 Riser 2 F FREEDM® Single-mode (OS2) Fan-Out Tight-Buffered Cable is designed for indoor/outdoor use with a flame rating of Riser (OFNR). It features a dielectric product type, round cable geometry, and meets various approvals and listings for safety and quality.

General Specifications:

• Product Number: 002E6F-31331-29
• Cable Type: Tight-Buffered
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: Single-mode (OS2)
• Flame Rating: Riser (OFNR)
• Application: Direct Buried, Duct, Horizontal
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR, UL-1666, CSA FT-4
• Design and Test Criteria: ICEA S-104-696

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 70 °C (14 °F to 158 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 2
• Buffer Tube Diameter: 2 mm (0.08 in)
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Fiber Coloring: Yellow
• Number of Active Tubes: 2
• Number of Filling Elements: 2
• Fibers per Tube: 1
• Number of Tube Positions: 4
• Flame Rating: Riser (OFNR)

Mechanical Specifications:

• Max. Tensile Strength, Short-Term: 660 N (148.37 lbf)
• Min. Bend Radius Installation: 105 mm (4.13 in)
• Min. Bend Radius Operation: 70 mm (2.76 in)

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 32 kg/km (21.5 lb/1000 ft)
