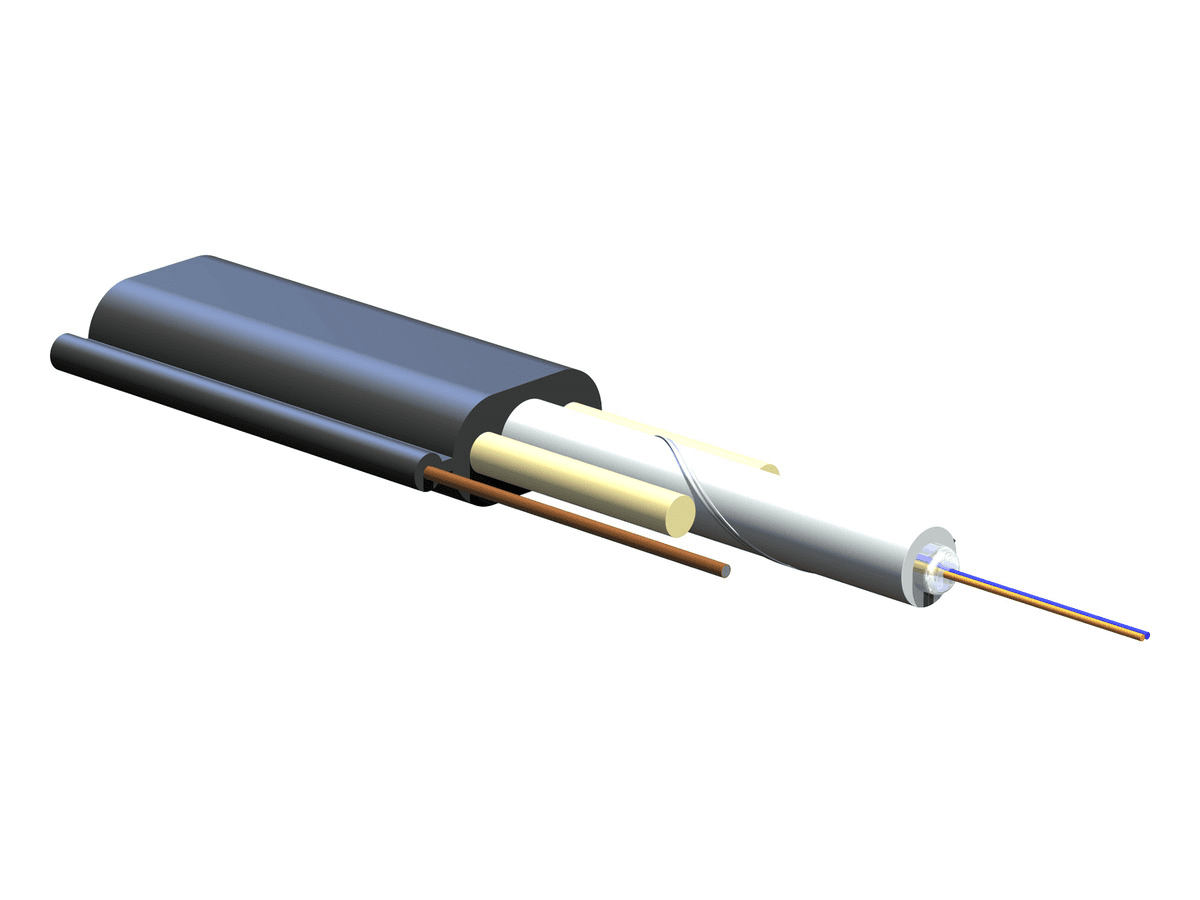

Corning 002EB1-14101A20, Single-mode (OS2) SST-Drop™ Gel-Filled Cable 2 F, Single-Tube

Corning 002EB1-14101A20, Single-mode (OS2) SST-Drop™ Gel-Filled Cable 2 F, Single-Tube

Summary: This Corning Single-mode (OS2) SST-Drop™ Gel-Filled Cable is designed for outdoor use with a toneable feature. It has a fiber count of 2 and meets various standards for safety and performance.

General Specifications:

• Product Number: 002EB1-14101A20
• Cable Type: Single Tube
• Environment: Outdoor
• Product Type: Toneable
• Fiber Category: Single-mode (OS2)
• Application: Direct Buried, Duct, Drop
• Cable geometry: Other

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: Compact Drop Subunit listed to National Electrical Code® (NEC®) OFNR, CSA FT-4
• Compliance: Not Available

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Cable Print Unit of Measure: Feet
• Fiber Count: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric Strength Members with Copper Toning Wire
• Buffer Tube Color: Natural
• Buffer Tube Diameter: 3 mm (0.12 in)
• Toning Conductor: Copper Wire, AWG 24
• Fiber Coloring: Blue, Orange
• Fibers per Tube: 2
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
• Min. Bend Radius Operation: 80 mm (3.15 in)
• Nominal Outer Diameter: 10.2 mmx 4.7 mm (0.4 inx 0.19 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 37 kg/km (24.86 lb/1000 ft)

Ordering Information:

• Convenient Contractor-sized Packaging Length: 609.6 m (2000 ft) gross weight 75 lbs., no specialized equipment needed
