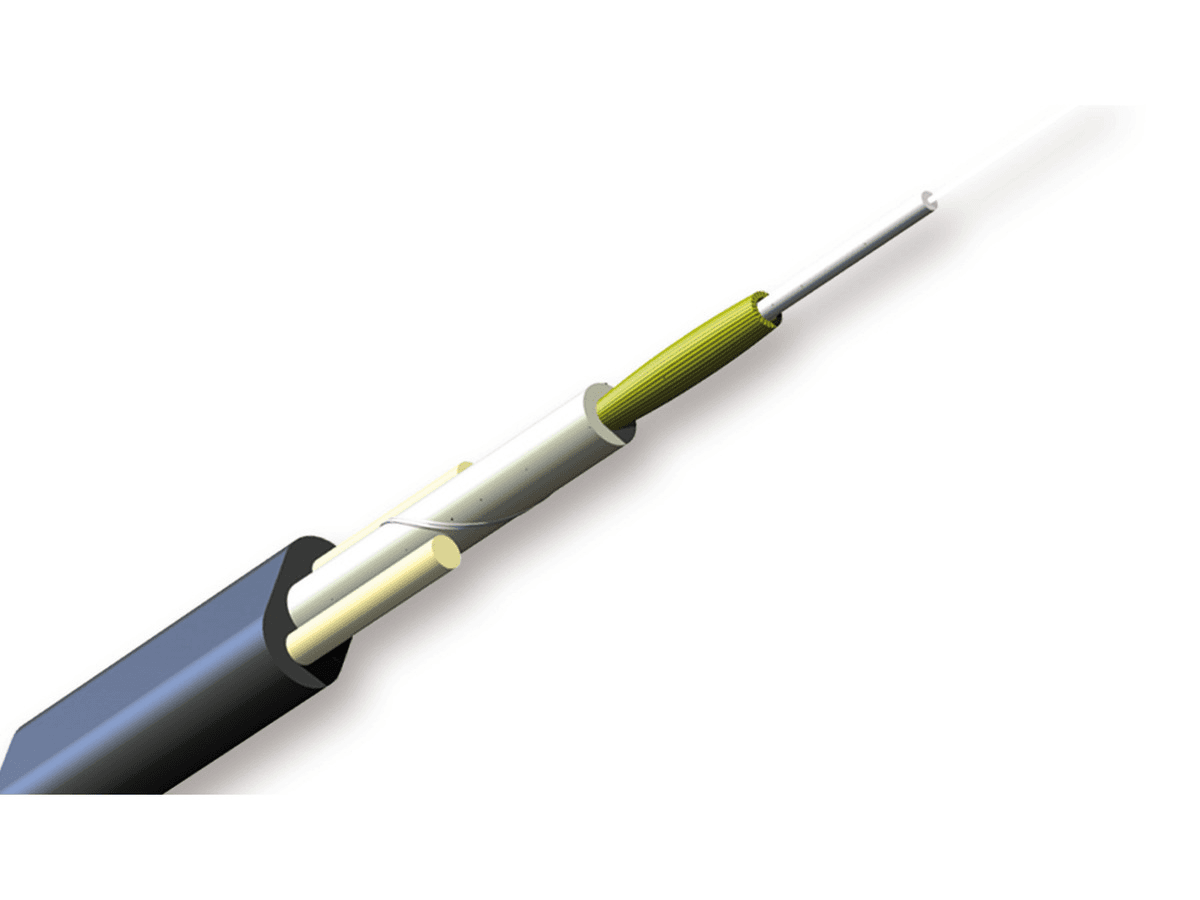

Corning 002JB1-13101-F9, ClearCurve® LBL SST-Drop™ Indoor/Outdoor Gel-Free Cable, Toneable 2 F Single-mode (OS2)

Corning 002JB1-13101-F9, ClearCurve® LBL SST-Drop™ Indoor/Outdoor Gel-Free Cable, Toneable 2 F Single-mode (OS2)

Summary: This Corning 002JB1-13101-F9 cable is a toneable single tube designed for indoor/outdoor use with ClearCurve® LBL fiber. It is suitable for various applications and features a flat cable geometry.

General Specifications:

• Product Number: 002JB1-13101-F9
• Cable Type: Single Tube
• Environment: Indoor/Outdoor
• Product Type: Toneable
• Fiber Category: ClearCurve® LBL
• Application: Aerial, Direct Buried, Duct, Horizontal, Riser, Drop
• Cable geometry: Flat

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: Compact Drop Subunit listed to National Electrical Code® (NEC®) OFNR, FT-4
• Design and Test Criteria: ANSI/ICEA S-110-717, Telcordia GR-20-CORE, Telcordia GR-409-CORE
• Compliance: Not Available

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Fiber Count: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Inner Jacket Material: Flame-retardant
• Tight Buffer Color: Blue, White
• Toning Conductor: Copper Wire, AWG 24
• Cable Print Unit of Measure: Meter

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
• Min. Bend Radius Operation: 80 mm (3.15 in)
• Nominal Outer Diameter: 10.1 mmx 4.4 mm (0.4 inx 0.17 in )

Optical Characteristics:

• Fiber Code: J
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: ClearCurve® LBL
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.30 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A2/B2

Dimensions:

• Cable Weight: 35 kg/km (23.52 lb/1000 ft)

Ordering Information:

• Convenient Contractor-sized Packaging Length: 609.6 m (2000 ft) gross weight 72 lbs., no specialized equipment needed
