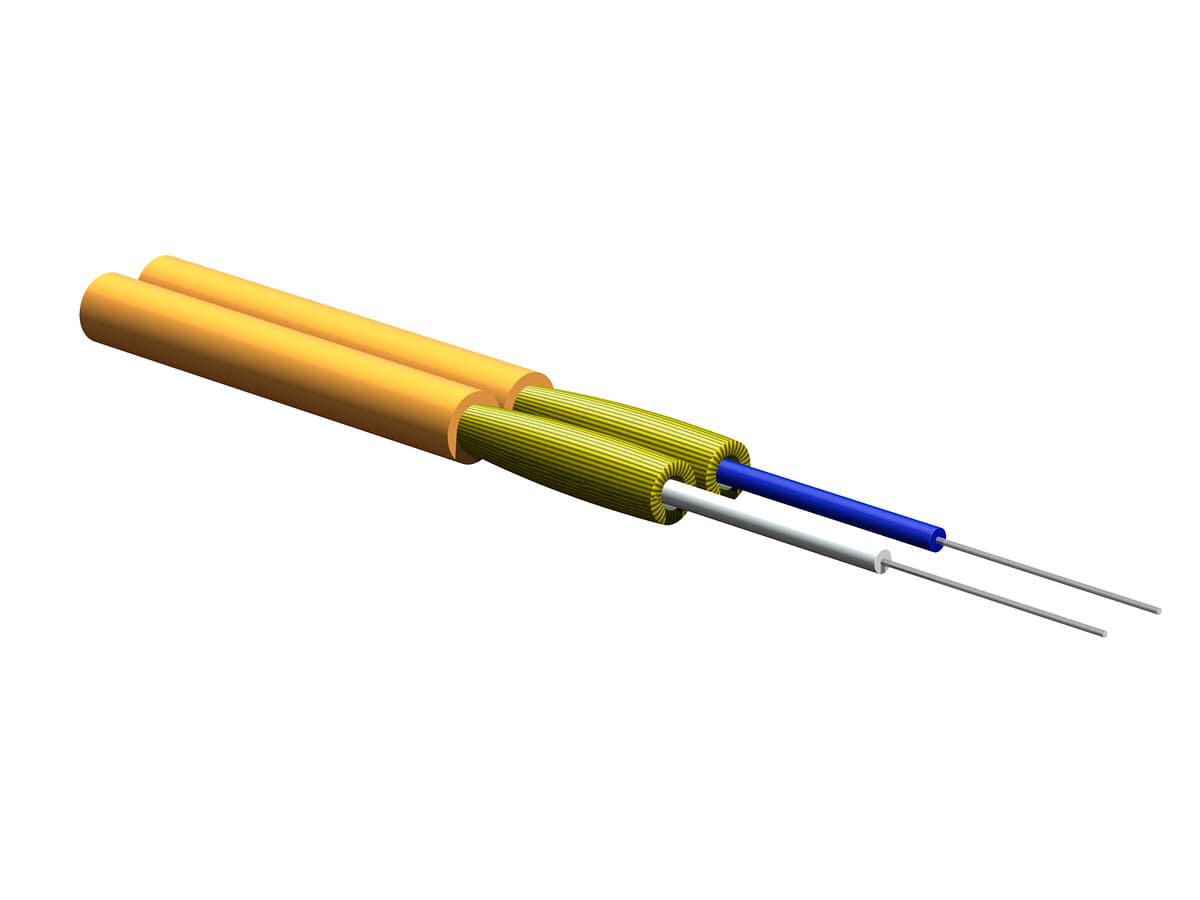

Corning 002K51-31130-24 2-F – OM1 Tight-Buffered Riser Fiber Cable, 62.5 µm, Orange, OFNR

Corning 002K51-31130-24 2-F – OM1 Tight-Buffered Riser Fiber Cable, 62.5 µm, Orange, OFNR

The 2-F OM1 Tight-Buffered Riser Fiber Cable is designed for indoor horizontal and riser applications. Built with 62.5 µm multimode (OM1) fiber, this cable meets the highest standards for flame resistance, with an OFNR (Riser) rating. The cable is equipped with two tight-buffered subunits, each containing two fibers, and is coated with a durable, flame-retardant orange jacket. This fiber cable is compliant with National Electrical Code (NEC®) Article 800, UL-1666, and CSA FT-4 standards. It offers a reliable solution for high-speed networking, supporting 1 Gigabit Ethernet up to 300 meters and 10 Gigabit Ethernet up to 33 meters.

General Specifications

• Product Number: 002K51-31130-24

• Cable Type: Tight-Buffered

• Environment: Indoor

• Product Type: Interconnect

• Fiber Category: 62.5 µm MM (OM1)

• Flame Rating: Riser (OFNR)

• Application: Horizontal, Riser

• Cable Geometry: Round

Standards

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Approvals and Listings: National Electrical Code® (NEC®) OFNR, UL-1666, CSA FT-4

• Design and Test Criteria: ICEA S-83-596

Environmental Conditions

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F)

• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F)

• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design

• Fiber Count: 2

• Outer Jacket Color: Orange

• Outer Jacket Material: Flame-retardant

• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members

• Number of Subunits: 2

• Tight Buffer Color: Blue, White

• Flame Rating: Riser (OFNR)

Mechanical Specifications

• Max. Tensile Strength, Short-Term: 220 N (49.46 lbf)

• Min. Bend Radius Installation: 50 mm (1.97 in)

• Min. Bend Radius Operation: 25 mm (0.98 in)

• Nominal Outer Diameter: 2.8 mm x 5.65 mm (0.11 in x 0.22 in)

Optical Characteristics

• Fiber Code: K

• Performance Option Code: 30

• Fiber Category: OM1

• Fiber Type: Multimode

• Fiber Name: 62.5 µm MM (OM1)

• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km

• Wavelengths: 850 nm / 1300 nm

• Fiber Compliance: ISO/IEC 11801

• Fiber Core Diameter: 62.5 µm

• Coating Diameter: 242 µm

• Serial 1 Gigabit Ethernet: 300 m / 550 m

• Serial 10 Gigabit Ethernet: 33 m / -

• Minimum Effective Modal Bandwidth (EMB): 220 MHz*km / -

• Min. Overfilled Launch (OFL) Bandwidth: 200 MHzkm / 500 MHzkm

Dimensions

• Cable Weight: 146 kg/km (98.11 lb/1000 ft)
