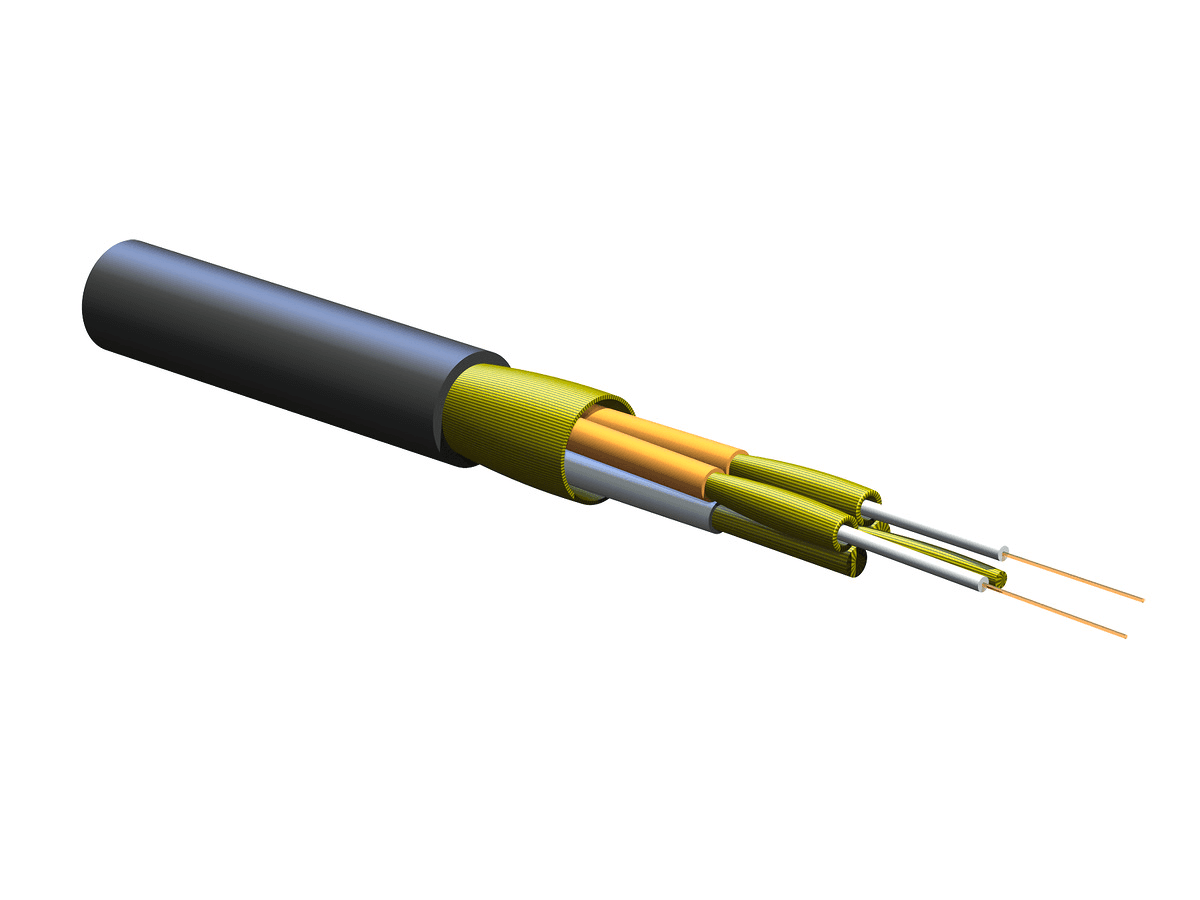

Corning 002K6F-31330-29, Riser 2 F FREEDM® Fan-Out Tight-Buffered Cable, 62.5 µm multimode (OM1)

Corning 002K6F-31330-29, Riser 2 F FREEDM® Fan-Out Tight-Buffered Cable, 62.5 µm multimode (OM1)

Summary:

This Corning 002K6F-31330-29 Riser 2 F FREEDM® Fan-Out Tight-Buffered Cable is designed for indoor/outdoor use with a dielectric product type and 62.5 µm multimode fiber category. It has a flame rating of Riser (OFNR) and is suitable for direct buried, duct, and horizontal applications.

General Specifications:

• Product Number: 002K6F-31330-29
• Cable Type: Tight-Buffered
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: 62.5 µm MM (OM1)
• Flame Rating: Riser (OFNR)
• Application: Direct Buried, Duct, Horizontal
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR
• Design and Test Criteria: ICEA S-104-696

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 70 °C (14 °F to 158 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 2
• Buffer Tube Diameter: 2 mm (0.08 in)
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Fiber Coloring: Orange
• Number of Active Tubes: 2
• Number of Filling Elements: 2
• Fibers per Tube: 1
• Number of Tube Positions: 4
• Flame Rating: Riser (OFNR)

Mechanical Specifications:

• Max. Tensile Strength, Short-Term: 660 N (148.37 lbf)
• Min. Bend Radius Installation: 105 mm (4.13 in)
• Min. Bend Radius Operation: 70 mm (2.76 in)

Optical Characteristics:

• Fiber Code: K
• Performance Option Code: 30
• Fiber Category: OM1
• Fiber Type: Multimode
• Fiber Name: 62.5 µm MM (OM1)
• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: ISO/IEC 11801
• Fiber Core Diameter: 62.5 µm
• Coating diameter: 242 µm
• Serial 1 Gigabit Ethernet: 300 m / 550 m
• Serial 10 Gigabit Ethernet: 33 m / -
• Minimum Effective Modal Bandwidth (EMB): 220 MHz*km / -
• Min. Overfilled Launch (OFL) Bandwidth: 200 MHz*km / 500 MHz*km

Dimensions:

• Cable Weight: 32 kg/km (21.5 lb/1000 ft)
