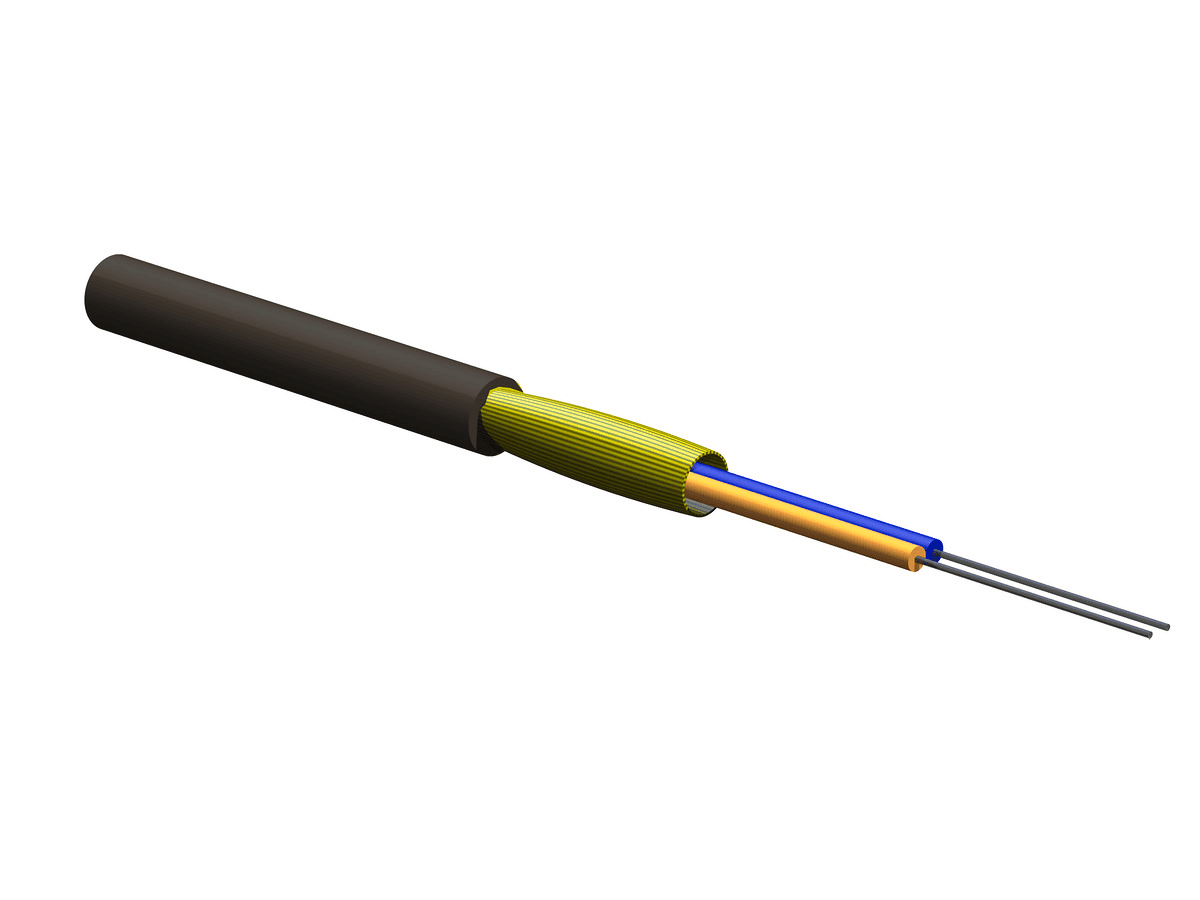

Corning 002U2F-31531-29, 2F Single-mode (OS2) ClearCurve® Rugged Drop Indoor/Outdoor Tight-Buffered Cable

Corning 002U2F-31531-29, 2F Single-mode (OS2) ClearCurve® Rugged Drop Indoor/Outdoor Tight-Buffered Cable

Summary: This Corning 002U2F-31531-29 cable is a single-mode (OS2) ClearCurve® Rugged Drop Indoor/Outdoor Tight-Buffered Cable designed for various applications, featuring a flame rating of Riser (OFNR) and a round cable geometry.

General Specifications:

• Product Number: 002U2F-31531-29
• Cable Type: Single Tube
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: Single-mode (OS2)
• Flame Rating: Riser (OFNR)
• Application: Direct Buried, Duct, Aerial, Horizontal, Riser, Drop
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR, UL-1666, CSA FT-4
• Common Installations: MDU drop cable applications from last terminal to and within living unit including outdoor and indoor vertical riser and general-purpose horizontal according to NEC Article 770
• Design and Test Criteria: ANSI/ICEA S-104-696, Telcordia GR-409

Environmental Conditions:

• Temperature Range, Installation: -5 °C to 60 °C (23 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Fiber Count: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Water-swellable dielectric strength members
• Fiber Coloring: Blue, Orange
• Flame Rating: Riser (OFNR)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 150 N (33.72 lbf)
• Max. Tensile Strength, Short-Term: 450 N (101.16 lbf)
• Min. Bend Radius Installation: 4 mm (0.16 in)
• Min. Bend Radius Operation: 4 mm (0.16 in)
• Nominal Outer Diameter: 4.8 mm (0.19 in )

Optical Characteristics:

• Fiber Code: U
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: ClearCurve® ZBL
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.30 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.B3
• Fiber Core Diameter: 8.2 µm
• Cladding diameter: 125 µm
• Coating diameter: 242 µm
• Dispersion @ 1550 nm: ≤ 18 [ps/(nm*km)]
• Dispersion @ 1625 nm: ≤ 23 [ps/(nm*km)]
• Cable cutoff wavelength: 1260 nm
• Mode-Field Diameter at 1310 nm: 8.6 µm
• Mode-Field Diameter at 1550 nm: 9.65 µm

Dimensions:

• Cable Weight: 21 kg/km (14.11 lb/1000 ft)
