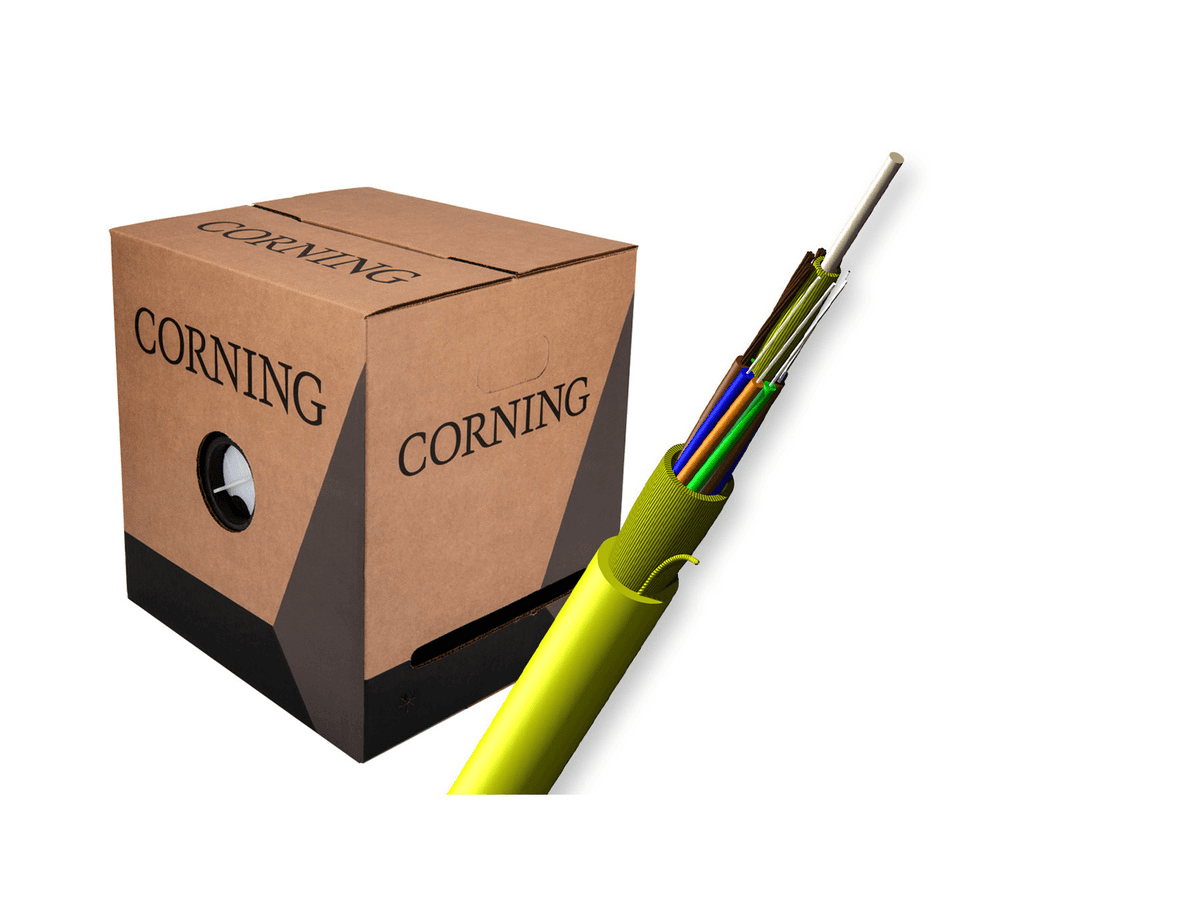

Corning 002Z48-21V31MB2, ActiFi® Composite Cable Reel in a Box, Tight-Buffered, Indoor Plenum 2 F, 2 Cu Conductor, 18AWG, 1000 Feet

Corning 002Z48-21V31MB2, ActiFi® Composite Cable Reel in a Box, Tight-Buffered, Indoor Plenum 2 F, 2 Cu Conductor, 18AWG, 1000 Feet

Summary: This Corning ActiFi® Composite Cable Reel in a Box is designed for indoor use with 2 copper conductors, 18AWG, and a length of 1000 feet.

General Specifications:

• Product Number: 002Z48-21V31MB2
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Distribution
• Fiber Category: SMF-28® Ultra
• Flame Rating: Plenum (OFCP)
• Application: Horizontal, Plenum, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR, UL-1666, CSA FT-4
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Yarn
• Fiber Count: 2
• Number of Ripcords: 1
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Conductor: 18 AWG
• Tight Buffer Color: Blue, Orange
• Tight Buffer Diameter: 0.9 mm (0.04 in)
• Number of Conductors: 2
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 100 N (22.48 lbf)
• Max. Tensile Strength, Short-Term: 334 N (75.09 lbf)
• Min. Bend Radius Installation: 84 mm (3.31 in)
• Min. Bend Radius Operation: 56 mm (2.2 in)
• Nominal Outer Diameter: 5.6 mm (0.22 in )

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1

Dimensions:

• Cable Weight: 424 kg/km (284.91 lb/1000 ft)

Ordering Information:

• Packaging Method: Reel in a Box
