Corning 004T88-31180-29 — 2-F OM1 Tight-Buffered Plenum Zipcord, 62.5 µm OM1 Fiber, Orange Jacket, 3.4 dB/km Attenuation, OFNP Rated

Corning 004T88-31180-29 — 2-F OM1 Tight-Buffered Plenum Zipcord, 62.5 µm OM1 Fiber, Orange Jacket, 3.4 dB/km Attenuation, OFNP Rated

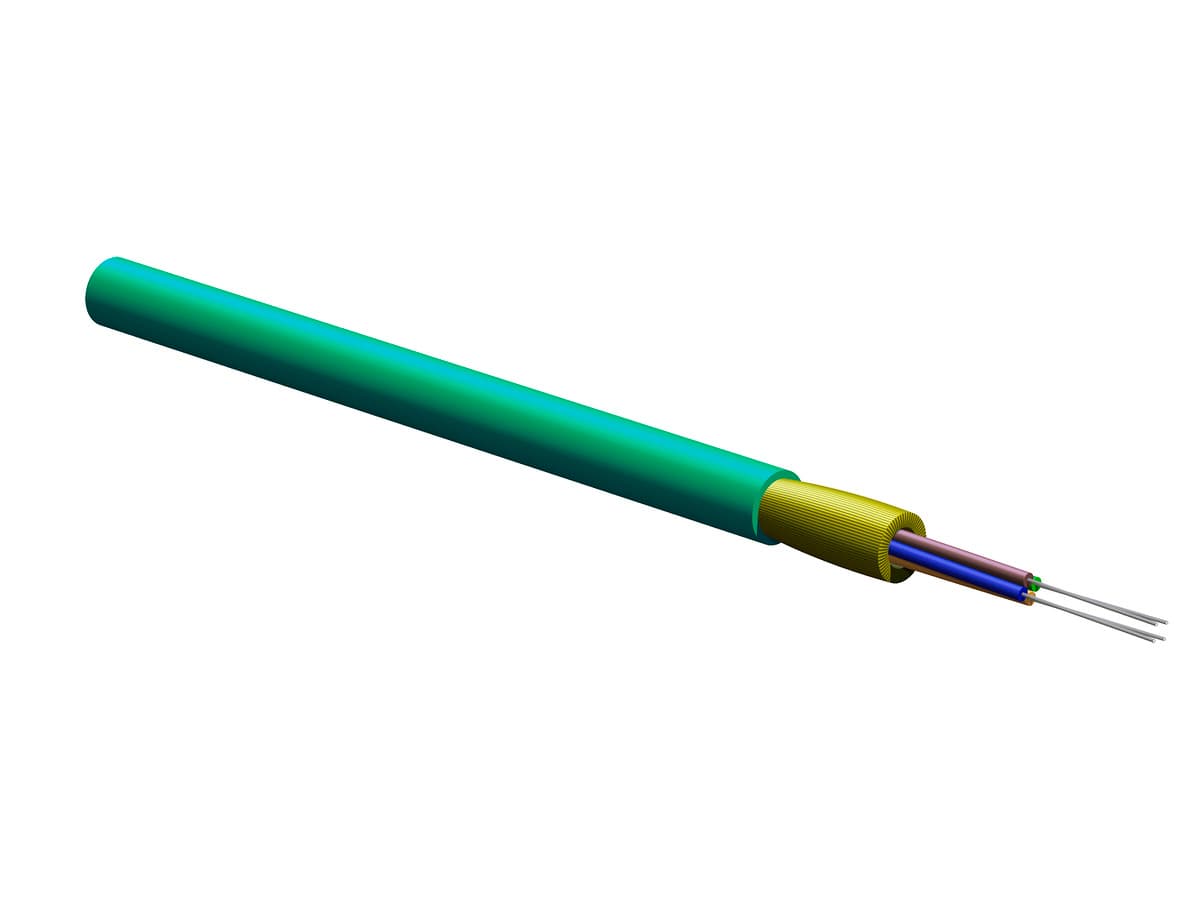

This 4-fiber OM3 tight-buffered distribution cable is designed for indoor use in general purpose, horizontal, plenum, and riser applications. Built with 50 µm multimode (OM3) fibers, it delivers excellent performance at both 850 nm and 1300 nm wavelengths with low attenuation of 2.8 dB/km and 1.0 dB/km. The cable features a flame-retardant aqua outer jacket with dielectric strength members for durability and compliance with Plenum (OFNP) and NEC standards. It supports high-speed data transmission, including 1 Gigabit Ethernet up to 1000 meters and 10 Gigabit Ethernet up to 300 meters. With a compact 5.2 mm diameter and robust tensile strength, this cable is ideal for demanding enterprise and data center environments.

General Specifications
Product Number: 004T88-31180-29
Cable Type: Tight-Buffered
Environment: Indoor
Product Type: Distribution
Fiber Category: 50 µm MM (OM3)
Flame Rating: Plenum (OFNP)
Application: General purpose, Horizontal, Plenum, Riser
Cable geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: National Electrical Code® (NEC®) OFNP, NFPA 262, CSA FT-6
Design and Test Criteria: ICEA S-83-596

Environmental Conditions
Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F)
Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Yarn
Fiber Count: 4
Outer Jacket Color: Aqua
Outer Jacket Material: Flame-retardant
Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
Tight Buffer Color: Blue, Orange, Green, Brown
Flame Rating: Plenum (OFNP)

Mechanical Specifications
Max. Tensile Strength, Long-Term, ≤12F: 132 N (29.67 lbf)
Max. Tensile Strength, Long-Term, >12F: 200 N (44.96 lbf)
Max. Tensile Strength, Short-Term, ≤12F: 440 N (98.92 lbf)
Max. Tensile Strength, Short-Term, >12F: 660 N (148.37 lbf)
Min. Bend Radius Installation: 78 mm (3.07 in)
Min. Bend Radius Operation: 52 mm (2.05 in)
Nominal Outer Diameter: 5.2 mm (0.2 in)

Optical Characteristics
Fiber Code: T
Performance Option Code: 80
Fiber Category: OM3
Fiber Type: Multimode
Fiber Name: 50 µm MM (OM3)
Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: IEC 60793-2-10
Fiber Core Diameter: 50 µm
Serial 1 Gigabit Ethernet: 1000 m / 600 m
Serial 10 Gigabit Ethernet: 300 m / -
Minimum Effective Modal Bandwidth (EMB): 2000 MHz·km / -
Min. Overfilled Launch (OFL) Bandwidth: 1500 MHz·km / 500 MHz·km

Dimensions
Cable Weight: 222 kg/km (149.18 lb/1000 ft)
