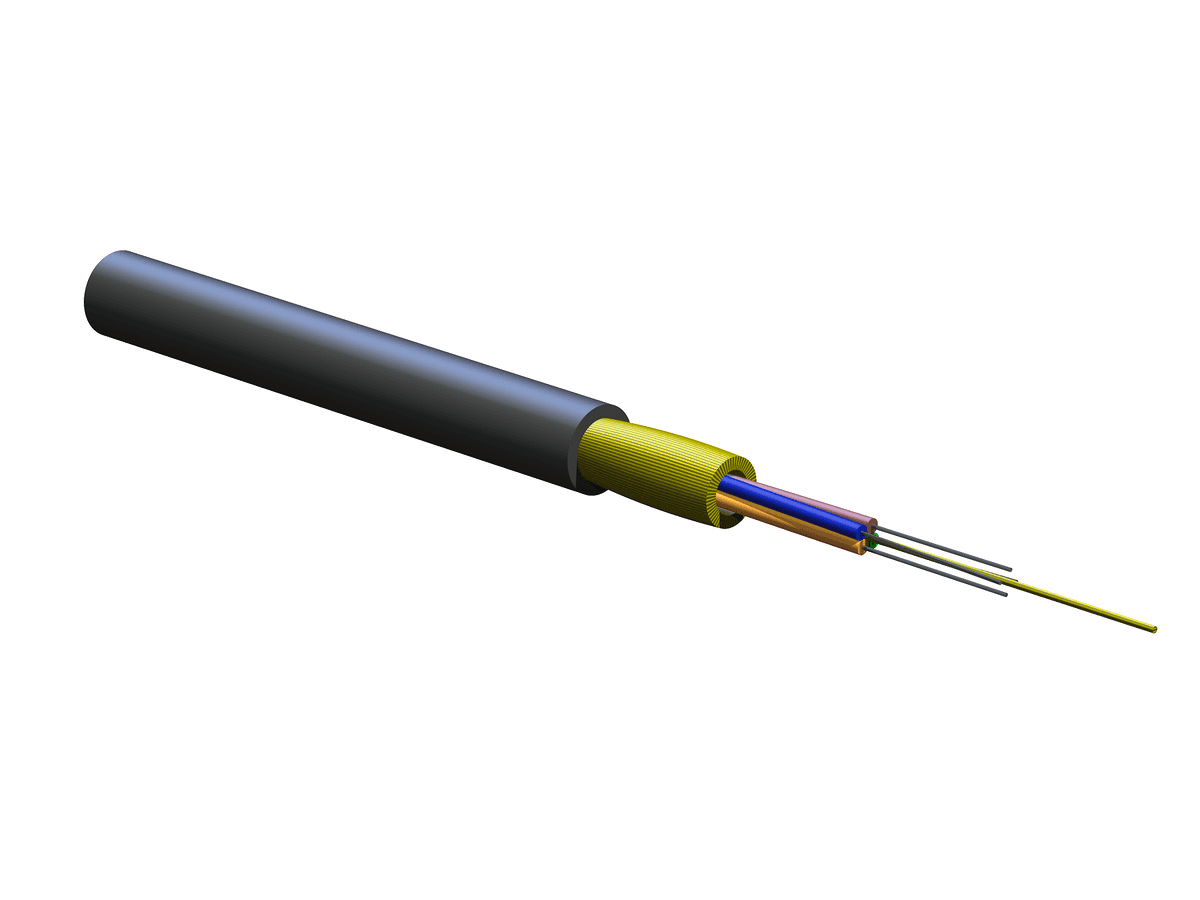

Corning 004T8F-31180-29, Riser 4F FREEDM® One Tight-Buffered Cable, 50 µm multimode (OM3)

Corning 004T8F-31180-29, Riser 4F FREEDM® One Tight-Buffered Cable, 50 µm multimode (OM3)

Summary: Corning 004T8F-31180-29 is a Riser 4F FREEDM® One Tight-Buffered Cable designed for indoor/outdoor use with a dielectric product type. It has a 50 µm multimode fiber category (OM3) and is suitable for aerial, duct, horizontal, and riser applications.

General Specifications:

• Product Number: 004T8F-31180-29
• Cable Type: Tight-Buffered
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: 50 µm MM (OM3)
• Flame Rating: Riser (OFNR)
• Application: Aerial, Duct, Horizontal, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR, UL-1666, CSA OFN FT-4
• Design and Test Criteria: ICEA S-104-696

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 4
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Water-Swellable Strength Yarns
• Tight Buffer Color: Blue, Orange, Green, Brown
• Flame Rating: Riser (OFNR)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 200 N (44.96 lbf)
• Max. Tensile Strength, Short-Term: 675 N (151.75 lbf)
• Min. Bend Radius Installation: 82.5 mm (3.25 in)
• Min. Bend Radius Operation: 55 mm (2.17 in)
• Nominal Outer Diameter: 5.5 mm (0.22 in )

Optical Characteristics:

• Fiber Code: T
• Performance Option Code: 80
• Fiber Category: OM3
• Fiber Type: Multimode
• Fiber Name: 50 µm MM (OM3)
• Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: IEC 60793-2-10
• Fiber Core Diameter: 50 µm
• Serial 1 Gigabit Ethernet: 1000 m / 600 m
• Serial 10 Gigabit Ethernet: 300 m / -
• Minimum Effective Modal Bandwidth (EMB): 2000 MHz*km / -
• Min. Overfilled Launch (OFL) Bandwidth: 1500 MHz*km / 500 MHz*km

Dimensions:

• Cable Weight: 24.42 kg/km (16.41 lb/1000 ft)
