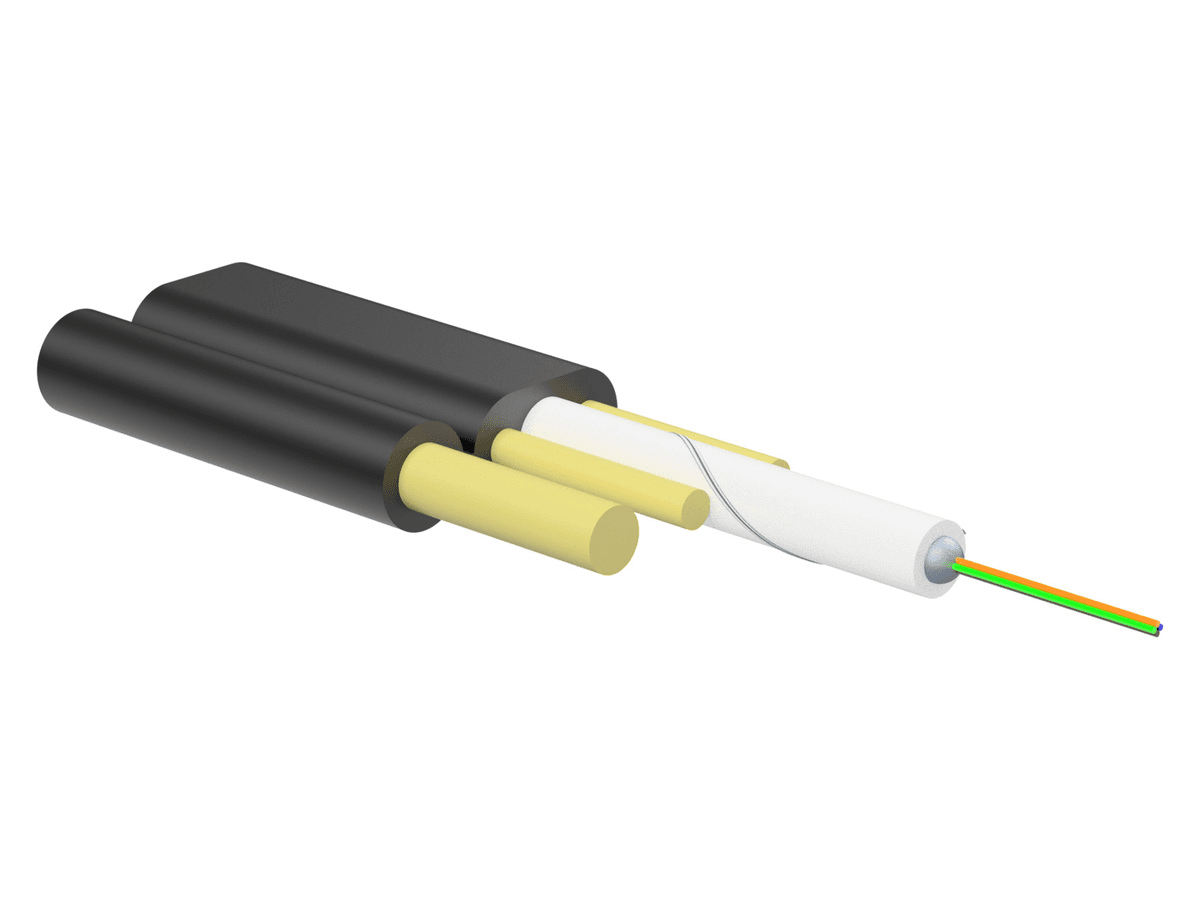

Corning 004ZBA-14101A20, Single-mode (OS2) SST-Drop™ Gel-Filled Cable 4 F, Self-Supporting, Single-Tube, SMF-28® Ultra fiber

Corning 004ZBA-14101A20, Single-mode (OS2) SST-Drop™ Gel-Filled Cable 4 F, Self-Supporting, Single-Tube, SMF-28® Ultra fiber

Summary:

This Corning SST-Drop™ Gel-Filled Cable is designed for outdoor use with self-supporting features and SMF-28® Ultra fiber. It is a single-tube, single-mode cable ideal for drop applications.

General Specifications:

• Product Number: 004ZBA-14101A20
• Cable Type: Single Tube
• Environment: Outdoor
• Product Type: Self-Supporting
• Fiber Category: SMF-28® Ultra
• Application: Drop
• Cable geometry: Other

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: USDA Rural Development Programs, ANSI/ICEA S-110-717
• Design and Test Criteria: ANSI/ICEA S-110-717, Telcordia GR-20-CORE
• Compliance: Not Available

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 60 °C (-22 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Cable Print Unit of Measure: Feet
• Fiber Count: 4
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Buffer Tube Color: Natural
• Buffer Tube Diameter: 3 mm (0.12 in)
• Tensile Strength Elements and/or Armoring: Dielectric strength members
• Fiber Coloring: Blue, Orange, Green, Brown
• Fibers per Tube: 4
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1335 N (300.12 lbf)
• Min. Bend Radius Installation: 450 mm (17.72 in)
• Min. Bend Radius Operation: 135 mm (5.31 in)
• Nominal Outer Diameter: 12.3 mmx 4.4 mm (0.48 inx 0.17 in )

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1

Dimensions:

• Cable Weight: 52.5 kg/km (35.28 lb/1000 ft)
