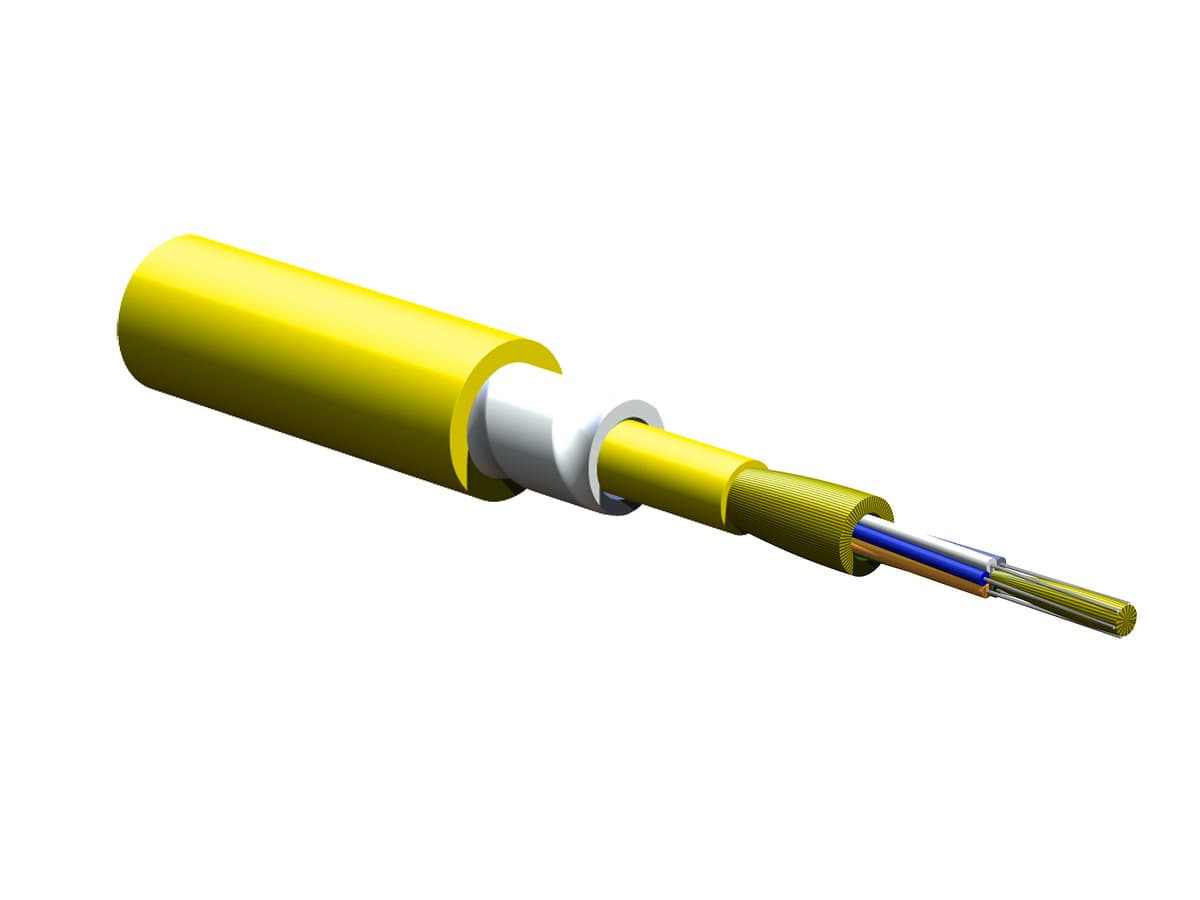

Corning 006E88-31131-D3 – Interlocking Dielectric Cable, Tight-Buffered, OS2, 6 Fiber

Corning 006E88-31131-D3 – Interlocking Dielectric Cable, Tight-Buffered, OS2, 6 Fiber

This 6-fiber OS2 single-mode interlocking dielectric cable is built for high-performance indoor networking in environments that demand both durability and safety. Its tight-buffered construction, yellow flame-retardant plenum-rated (OFNP) jacket, and interlocking dielectric armor offer superior protection without metallic components. Designed for general purpose, horizontal, and plenum applications, it maintains consistent performance even in challenging conditions. The cable supports low-loss transmission with a maximum attenuation of 0.4 dB/km across 1310, 1383, and 1550 nm wavelengths, meeting ITU-T G.652.D standards. With a compact 10.2 mm outer diameter, it balances strength, flexibility, and ease of installation.

Specifications:

• Product Number: 006E88-31131-D3

• Cable Type: Tight-Buffered

• Environment: Indoor

• Product Type: Dielectric Armor

• Fiber Category: Single-mode (OS2)

• Flame Rating: Plenum (OFNP)

• Applications: General purpose, Horizontal, Plenum

• Cable Geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Approvals & Listings: National Electrical Code® (NEC®) OFNP, CSA FT-6

• Design & Test Criteria: ICEA S-83-596

Environmental Conditions:

• Installation Temperature Range: 0°C to 60°C (32°F to 140°F)

• Operation Temperature Range: 0°C to 70°C (32°F to 158°F)

• Storage Temperature Range: -40°C to 70°C (-40°F to 158°F)

Cable Design:

• Fiber Count: 6

• Outer Jacket Color: Yellow

• Outer Jacket Material: Flame-retardant

• Tensile Strength Elements/Armoring – Layer 1: Dielectric strength members

• Inner Jacket Material: Flame-retardant

• Tensile Strength Elements/Armoring – Layer 3: Interlocking Armor

• Tight Buffer Colors: Blue, Orange, Green, Brown, Slate, White

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 132 N (29.67 lbf)

• Max. Tensile Strength, Short-Term: 440 N (98.92 lbf)

• Min. Bend Radius, Installation: 153 mm (6.02 in)

• Min. Bend Radius, Operation: 102 mm (4.02 in)

• Nominal Inner Cable Diameter: 5.2 mm (0.2 in)

• Nominal Outer Diameter: 10.2 mm (0.4 in)

Optical Characteristics:

• Fiber Code: E

• Performance Option Code: 31

• Fiber Category: OS2

• Fiber Type: Single-mode (OS2) / 250 µm

• Fiber Name: Single-mode (OS2)

• Maximum Attenuation: 0.4 dB/km @ 1310 nm / 1383 nm / 1550 nm

• Wavelengths: 1310 nm, 1383 nm, 1550 nm

• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 110 kg/km (73.92 lb/1000 ft)
