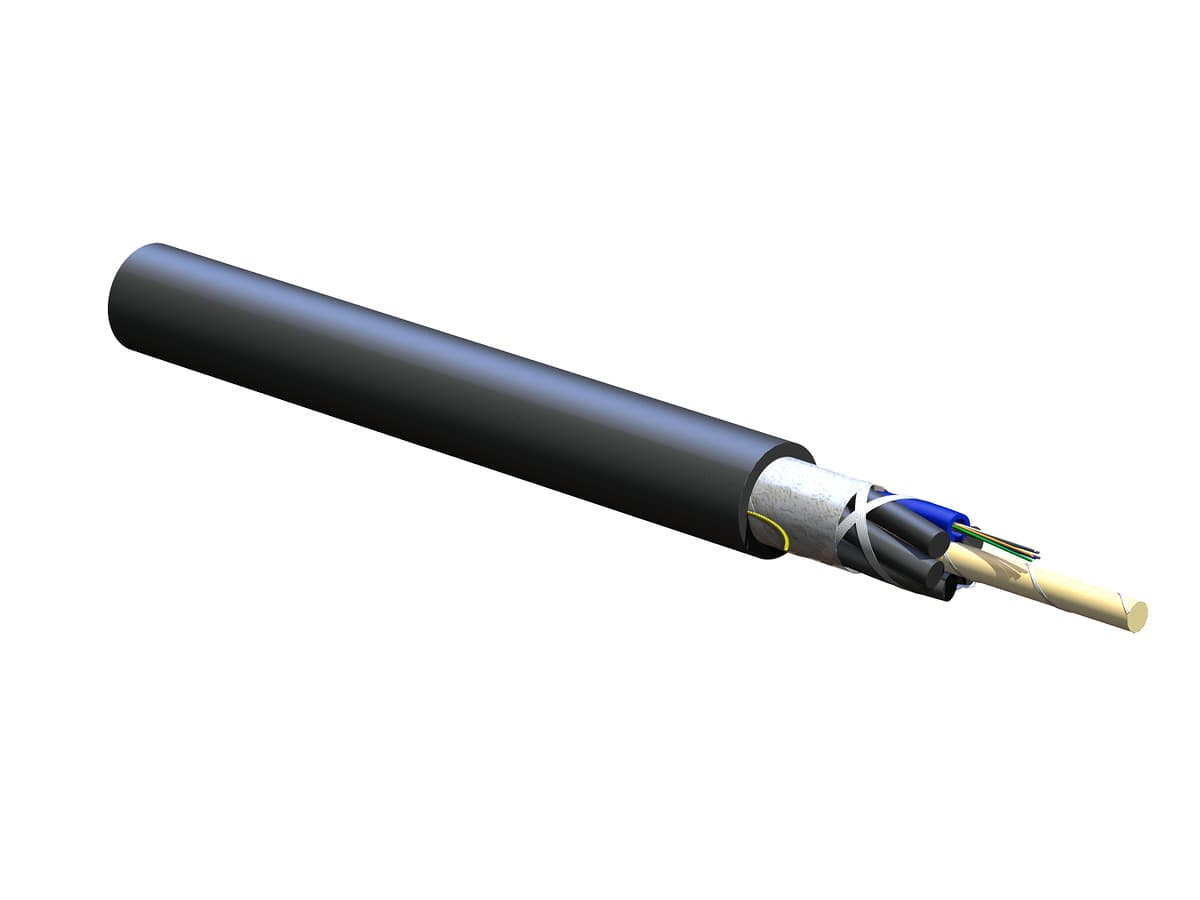

Corning 006EUZ-T4101D2N — 6-Fiber Gel-Free Cable, OS2, Single-Mode

Corning 006EUZ-T4101D2N — 6-Fiber Gel-Free Cable, OS2, Single-Mode

The Corning 006EU4-T4101D20 is a gel-free, loose tube, dielectric fiber optic cable engineered for outdoor aerial and duct installations. It contains 6 single-mode (OS2) fibers compliant with ITU-T G.652.D standards, delivering low attenuation of 0.4 dB/km at 1310 nm and 1383 nm, and 0.3 dB/km at 1550 nm. The cable features a polyethylene (PE) outer jacket, water-swellable tape, and a dielectric central element, ensuring lightweight durability and moisture resistance. With a tensile strength rating of 2700 N short-term and 890 N long-term, it is built to withstand demanding environmental conditions. Designed to ANSI/ICEA S-87-640 standards, this cable is ideal for long-distance, high-performance network applications.

General Specifications

• Product Number: 006EU4-T4101D20

• Cable Type: Loose Tube

• Environment: Outdoor

• Product Type: Dielectric

• Fiber Category: Single-mode (OS2)

• Application: Aerial, Duct

• Cable Geometry: Round

Standards

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Common Installations: Outdoor lashed aerial and duct, indoor when installed according to National Electrical Code® (NEC®) Article 770

• Design and Test Criteria: ANSI/ICEA S-87-640

Environmental Conditions

• Notes: Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best results.

• Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F)

• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)

• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design

• Central Element: Dielectric

• Fiber Count: 6

• Number of Ripcords: 1

• Outer Jacket Color: Black

• Outer Jacket Material: Polyethylene (PE)

• Buffer Tube Color: Blue

• Buffer Tube Diameter: 2.5 mm (0.1 in)

• Number of Active Tubes: 1

• Number of Filling Elements: 5

• Number of Tube Positions: 6

• Tape: Water-swellable

• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White

• Fibers per Tube: 6

• Color Code Standards: Telcordia

Mechanical Specifications

• Max. Tensile Strength, Long-Term: 890 N (200.08 lbf)

• Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)

• Nominal Outer Diameter: 10.5 mm (0.41 in)

• Min. Bend Diameter Installation: 316 mm (12.44 in)

• Min. Bend Diameter Operation: 210 mm (8.27 in)

Optical Characteristics

• Fiber Code: E

• Performance Option Code: 01

• Fiber Category: OS2

• Fiber Type: Single-mode (OS2) / 250 µm

• Fiber Name: Single-mode (OS2)

• Maximum Attenuation: 0.4 dB/km @ 1310 nm, 0.4 dB/km @ 1383 nm, 0.3 dB/km @ 1550 nm

• Wavelengths: 1310 nm / 1383 nm / 1550 nm

• Fiber Compliance: ITU-T G.652.D

Dimensions

• Cable Weight: 73 kg/km (49.05 lb/1000 ft)
