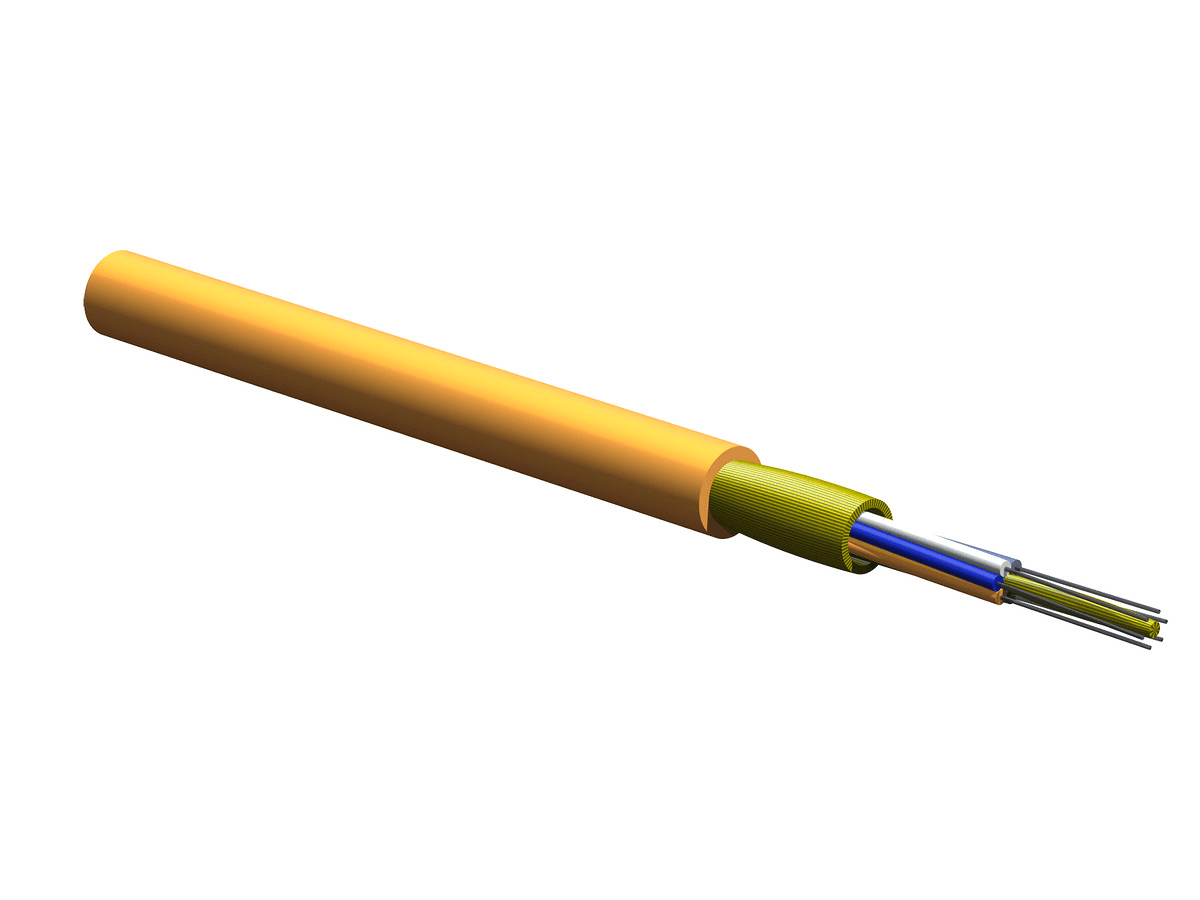

Corning 006K88-31130-29, Plenum 6 F MIC® Tight-Buffered Cable, 62.5 µm multimode (OM1)

Corning 006K88-31130-29, Plenum 6 F MIC® Tight-Buffered Cable, 62.5 µm multimode (OM1)

Summary: Corning 006K88-31130-29 is a plenum 6 F MIC® tight-buffered cable designed for indoor distribution applications. It features 62.5 µm multimode fiber (OM1) and meets various standards for safety and performance.

General Specifications:

• Product Number: 006K88-31130-29
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Distribution
• Fiber Category: 62.5 µm MM (OM1)
• Flame Rating: Plenum (OFNP)
• Application: Horizontal, Plenum, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNP, NFPA 262, CSA FT-6
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Yarn
• Fiber Count: 6
• Outer Jacket Color: Orange
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term, ≤12F: 132 N (29.67 lbf)
• Max. Tensile Strength, Long-Term, >12F: 200 N (44.96 lbf)
• Max. Tensile Strength, Short-Term, ≤12F: 440 N (98.92 lbf)
• Max. Tensile Strength, Short-Term, >12F: 660 N (148.37 lbf)
• Min. Bend Radius Installation: 78 mm (3.07 in)
• Min. Bend Radius Operation: 52 mm (2.05 in)
• Nominal Outer Diameter: 5.2 mm (0.2 in )

Optical Characteristics:

• Fiber Code: K
• Performance Option Code: 30
• Fiber Category: OM1
• Fiber Type: Multimode
• Fiber Name: 62.5 µm MM (OM1)
• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: ISO/IEC 11801
• Fiber Core Diameter: 62.5 µm
• Coating diameter: 242 µm
• Serial 1 Gigabit Ethernet: 300 m / 550 m
• Serial 10 Gigabit Ethernet: 33 m / -
• Minimum Effective Modal Bandwidth (EMB): 220 MHz*km / -
• Min. Overfilled Launch (OFL) Bandwidth: 200 MHz*km / 500 MHz*km

Dimensions:

• Cable Weight: 242 kg/km (162.62 lb/1000 ft)
