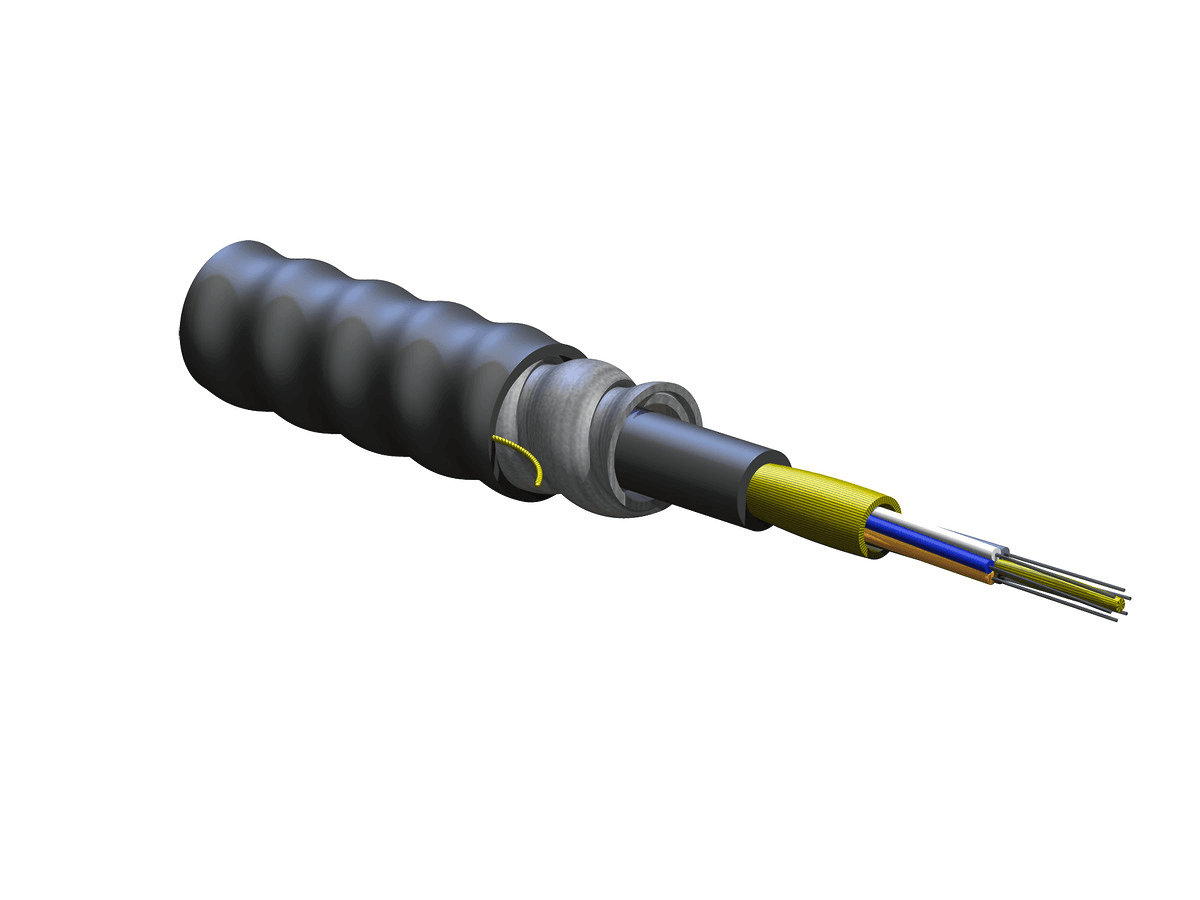

Corning 006K8P-31130-A3, Plenum 6 F FREEDM® One Tight-Buffered, Interlocking Armored Cable, 62.5 µm multimode (OM1)

Corning 006K8P-31130-A3, Plenum 6 F FREEDM® One Tight-Buffered, Interlocking Armored Cable, 62.5 µm multimode (OM1)

Summary: Corning 006K8P-31130-A3 is a Plenum 6 F FREEDM® One Tight-Buffered, Interlocking Armored Cable with 62.5 µm multimode fiber category (OM1) suitable for various applications in indoor/outdoor environments.

General Specifications:

• Product Number: 006K8P-31130-A3
• Cable Type: Tight-Buffered
• Environment: Indoor/Outdoor
• Product Type: Interlocking Armor
• Fiber Category: 62.5 µm MM (OM1)
• Flame Rating: Plenum (OFCP)
• Application: Aerial, Direct Buried, Duct, Horizontal, Riser, Plenum
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCP, CSA FT-6
• Design and Test Criteria: ICEA S-104-696

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 6
• Number of Ripcords: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Water-swellable strength members
• Tensile Strength Elements and/or Armoring - Layer 2: Interlocking Armor
• Inner Jacket Material: Flame-Retardant, UV-Resistant
• Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White
• Flame Rating: Plenum (OFCP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 200 N (44.96 lbf)
• Max. Tensile Strength, Short-Term: 675 N (151.75 lbf)
• Min. Bend Radius Installation: 169.5 mm (6.67 in)
• Min. Bend Radius Operation: 113 mm (4.45 in)
• Nominal Inner Cable Diameter: 5.3 mm (0.21 in)
• Nominal Outer Diameter: 11.3 mm (0.44 in )

Optical Characteristics:

• Fiber Code: K
• Performance Option Code: 30
• Fiber Category: OM1
• Fiber Type: Multimode
• Fiber Name: 62.5 µm MM (OM1)
• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: ISO/IEC 11801
• Fiber Core Diameter: 62.5 µm
• Coating diameter: 242 µm
• Serial 1 Gigabit Ethernet: 300 m / 550 m
• Serial 10 Gigabit Ethernet: 33 m / -
• Minimum Effective Modal Bandwidth (EMB): 220 MHz*km / -
• Min. Overfilled Launch (OFL) Bandwidth: 200 MHz*km / 500 MHz*km

Dimensions:

• Cable Weight: 108.2 kg/km (72.71 lb/1000 ft)
