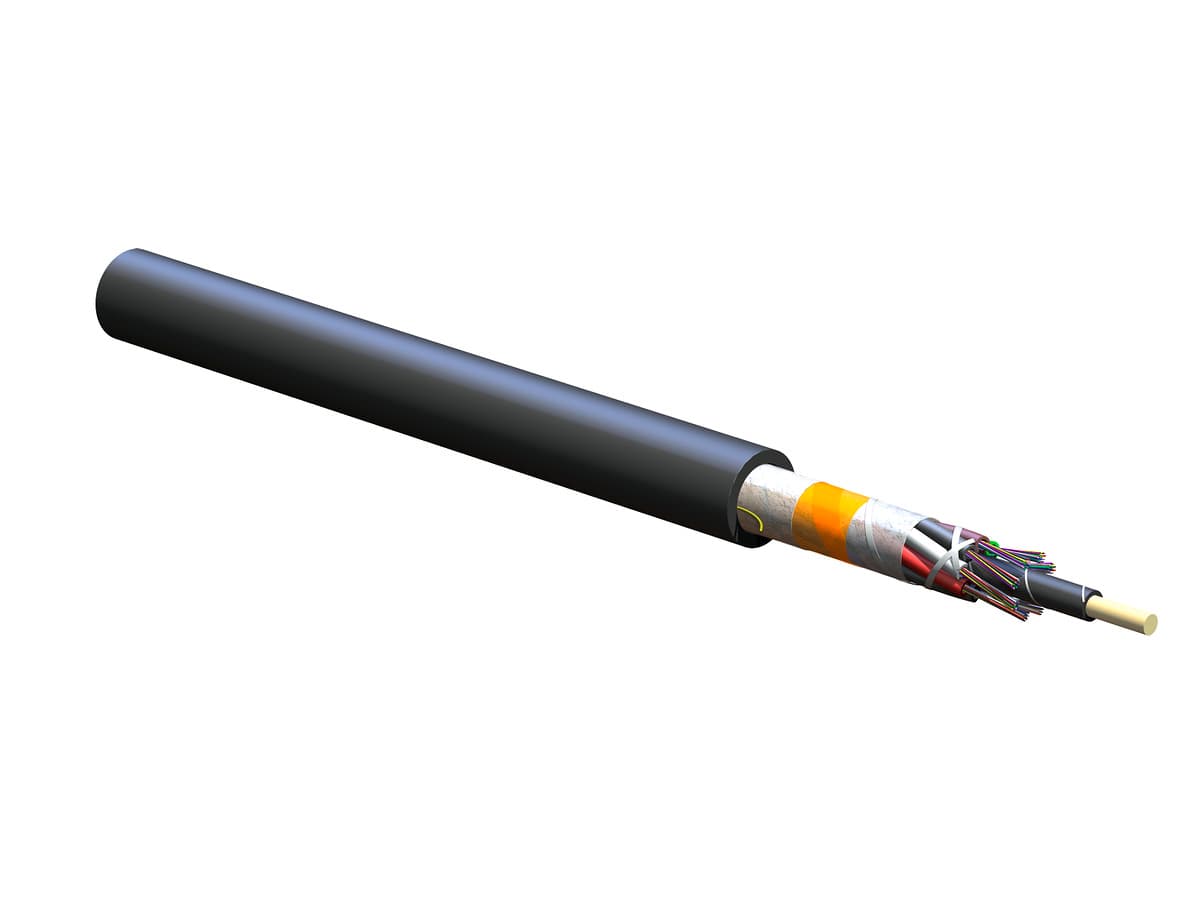

Corning 006KSP-T4130D20 — Fiber Cable, Indoor/Outdoor, Interlocking, Armored, Loose Tube, Black, OM1, Black, Plenum 6 F, 7.4 mm OD, 250 um, Multimode

Corning 006KSP-T4130D20 — Fiber Cable, Indoor/Outdoor, Interlocking, Armored, Loose Tube, Black, OM1, Black, Plenum 6 F, 7.4 mm OD, 250 um, Multimode

This indoor/outdoor fiber optic cable features a loose tube dielectric design with interlocking armor, offering robust protection in demanding environments. It houses six OM1 multimode fibers (62.5 µm) within a flame-retardant, UV-resistant black jacket rated for plenum (OFNP) applications, meeting strict fire safety standards such as NFPA 262. The cable supports versatile installation options including aerial, direct buried, duct, and general-purpose horizontal runs. Its rugged construction ensures reliable performance across a wide temperature range, with a maximum short-term tensile strength of 1350 N and excellent bend radius tolerance. Ideal for high-performance network backbones, this cable supports Gigabit Ethernet up to 550 m and 10 Gigabit Ethernet over shorter distances.

General Specifications
Product Number: 006KSP-T4130D20
Cable Type: Loose Tube
Environment: Indoor/Outdoor
Product Type: Dielectric
Fiber Category: 62.5 µm MM (OM1)
Flame Rating: Plenum (OFNP)
Application: Aerial, Direct Buried, Duct, General Purpose, Horizontal
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: National Electrical Code® (NEC®) OFNP
Design and Test Criteria: ANSI/ICEA S-104-696, NFPA 262 (for plenum, riser, and general building applications)

Environmental Conditions
Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Fiber Count: 6
Number of Ripcords: 2
Outer Jacket Color: Black
Outer Jacket Material: Flame-Retardant, UV-Resistant
Tensile Strength Elements/Armoring - Layer 1: Dielectric Strength Members
Buffer Tube Color: Orange
Number of Active Tubes: 1
Number of Tube Positions: 1
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White
Fibers per Tube: 6
Color Code Standards: Telcordia

Mechanical Specifications
Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
Min. Bend Radius Installation: 135 mm (5.31 in)
Min. Bend Radius Operation: 90 mm (3.54 in)
Nominal Outer Diameter: 9 mm (0.35 in)

Optical Characteristics
Fiber Code: K
Performance Option Code: 30
Fiber Category: OM1
Fiber Type: Multimode
Fiber Name: 62.5 µm MM (OM1)
Maximum Attenuation: 3.4 dB/km (850 nm) / 1.0 dB/km (1300 nm)
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: ISO/IEC 11801
Fiber Core Diameter: 62.5 µm
Coating Diameter: 242 µm
Serial 1 Gigabit Ethernet: 300 m / 550 m
Serial 10 Gigabit Ethernet: 33 m / -
Minimum Effective Modal Bandwidth (EMB): 220 MHz·km / -
Minimum Overfilled Launch (OFL) Bandwidth: 200 MHz·km / 500 MHz·km

Dimensions
Cable Weight: 73 kg/km (49.05 lb/1000 ft)
