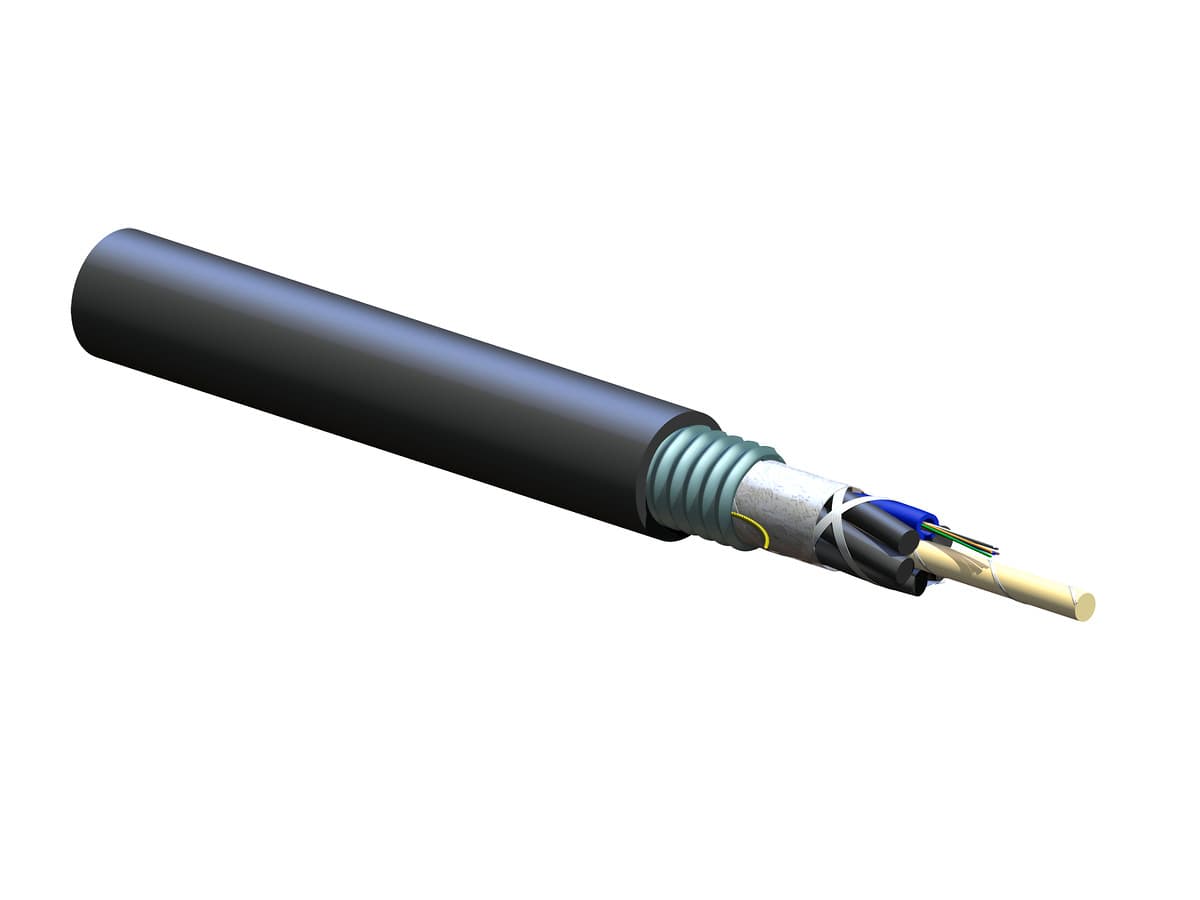

Corning 006KUZ-T4130D2N – 6-F 62.5/125 LT Duct/Aerial 3.4/1.0 dB/km 200/500 MHz*km LSZH Tray Rated

Corning 006KUZ-T4130D2N – 6-F 62.5/125 LT Duct/Aerial 3.4/1.0 dB/km 200/500 MHz*km LSZH Tray Rated

This 6-fiber loose tube interlocking armor cable is designed for rugged outdoor applications including aerial, duct, and direct-buried installations. Built with multimode 62.5 µm OM1 fibers, it supports reliable data transmission with attenuation rates of 3.4 dB/km at 850 nm and 1.0 dB/km at 1300 nm. The cable features a corrugated steel tape armor with a polyethylene outer jacket for enhanced protection in harsh environments. It complies with ANSI/ICEA S-87-640 standards and is RoHS-compliant, ensuring both safety and environmental compatibility. With a strong dielectric central element, water-swellable tapes, and a Telcordia-compliant color code, this cable delivers durability, performance, and easy fiber identification.

General Specifications

• Product Number: 006KUC-T4130D20

• Cable Type: Loose Tube

• Environment: Outdoor

• Product Type: Interlocking Armor

• Fiber Category: 62.5 µm MM (OM1)

• Application: Aerial, Direct Buried, Duct

• Cable Geometry: Round

Standards

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Common Installations: Outdoor lashed aerial, duct, direct-buried, indoor (per NEC® Article 770)

• Design and Test Criteria: ANSI/ICEA S-87-640

Environmental Conditions

• Notes: Corning recommends proper cable storage to meet installation temperature range.

• Installation Temperature Range: -30 °C to 70 °C (-22 °F to 158 °F)

• Operation Temperature Range: -40 °C to 70 °C (-40 °F to 158 °F)

• Storage Temperature Range: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design

• Central Element: Dielectric

• Fiber Count: 6

• Number of Ripcords: 2

• Outer Jacket Color: Black

• Outer Jacket Material: Polyethylene (PE)

• Tensile Strength Elements/Armoring (Layer 1): Corrugated steel tape armor

• Buffer Tube Color: Blue

• Buffer Tube Diameter: 2.5 mm (0.1 in)

• Number of Active Tubes: 1

• Number of Filling Elements: 5

• Number of Tube Positions: 6

• Tape: Water-swellable

• Tape Layer 1: Water-swellable

• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White

• Fibers per Tube: 6

• Color Code Standards: Telcordia

Mechanical Specifications

• Max. Tensile Strength, Long-Term: 890 N (200.08 lbf)

• Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)

• Nominal Outer Diameter: 12.1 mm (0.48 in)

• Min. Bend Diameter Installation: 364 mm (14.33 in)

• Min. Bend Diameter Operation: 242 mm (9.53 in)

Optical Characteristics

• Fiber Code: K

• Performance Option Code: 30

• Fiber Category: OM1

• Fiber Type: Multimode

• Fiber Name: 62.5 µm MM (OM1)

• Maximum Attenuation: 3.4 dB/km @ 850 nm / 1.0 dB/km @ 1300 nm

• Wavelengths: 850 nm / 1300 nm

• Fiber Compliance: ISO/IEC 11801

• Fiber Core Diameter: 62.5 µm

• Coating Diameter: 242 µm

• Serial 1 Gigabit Ethernet: 300 m @ 850 nm / 550 m @ 1300 nm

• Serial 10 Gigabit Ethernet: 33 m / -

• Minimum Effective Modal Bandwidth (EMB): 220 MHz*km / -

• Min. Overfilled Launch (OFL) Bandwidth: 200 MHzkm / 500 MHzkm

Dimensions

• Cable Weight: 129 kg/km (86.68 lb/1000 ft)
