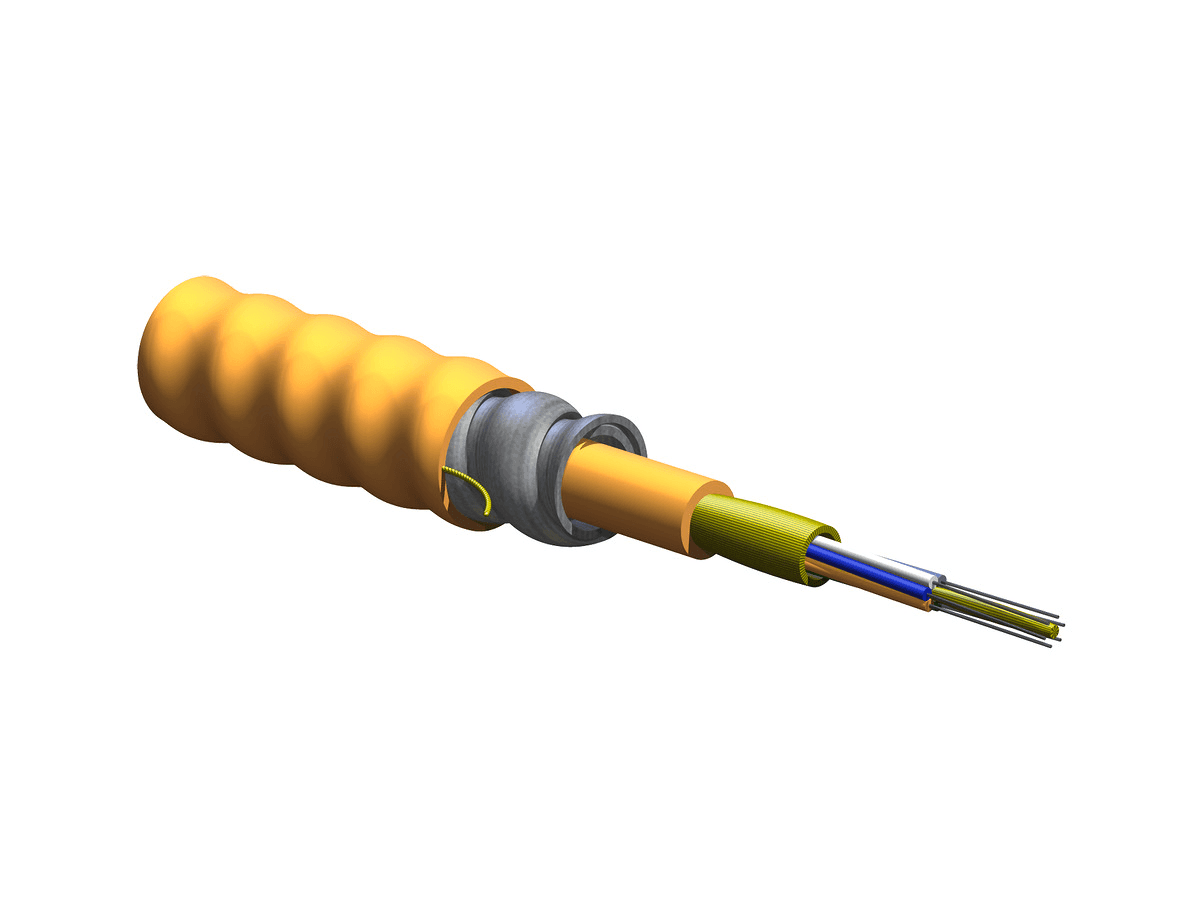

Corning 006T81-31131-A1, Riser 6 F MIC® Tight-Buffered, Interlocking Armored Cable, 50 µm multimode (OM2)

Corning 006T81-31131-A1, Riser 6 F MIC® Tight-Buffered, Interlocking Armored Cable, 50 µm multimode (OM2)

Summary: This Corning 006T81-31131-A1 cable is a Tight-Buffered, Interlocking Armored Cable with 50 µm multimode fiber category (OM2) suitable for indoor environments. It has a Riser flame rating and is designed for horizontal and riser applications with a round cable geometry.

General Specifications:

• Product Number: 006T81-31131-A1
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Interlocking Armor
• Fiber Category: 50 µm MM (OM2)
• Flame Rating: Riser (OFCR)
• Application: Horizontal, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCR, UL 1666, CSA FT-4
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Temperature Range, Operation: -20 °C to 70 °C (-4 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Yarn
• Fiber Count: 6
• Number of Ripcords: 2
• Outer Jacket Color: Orange
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Inner Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 3: Dielectric strength members
• Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White
• Flame Rating: Riser (OFCR)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term, ≤12F: 200 N (44.96 lbf)
• Max. Tensile Strength, Long-Term, >12F: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term, ≤12F: 660 N (148.37 lbf)
• Max. Tensile Strength, Short-Term, >12F: 1320 N (296.75 lbf)
• Min. Bend Radius Installation: 170 mm (6.69 in)
• Min. Bend Radius Operation: 113 mm (4.45 in)
• Nominal Inner Cable Diameter: 509 mm (20.04 in)
• Nominal Outer Diameter: 11.3 mm (0.44 in )

Optical Characteristics:

• Fiber Code: T
• Performance Option Code: 31
• Fiber Category: OM2
• Fiber Type: Multimode
• Fiber Name: 50 µm MM (OM2)
• Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: IEC 60793-2-10
• Fiber Core Diameter: 50 µm
• Serial 1 Gigabit Ethernet: 750 m / 600 m
• Serial 10 Gigabit Ethernet: 150 m / -
• Minimum Effective Modal Bandwidth (EMB): 950 MHz*km / -
• Min. Overfilled Launch (OFL) Bandwidth: 700 MHz*km / 500 MHz*km
