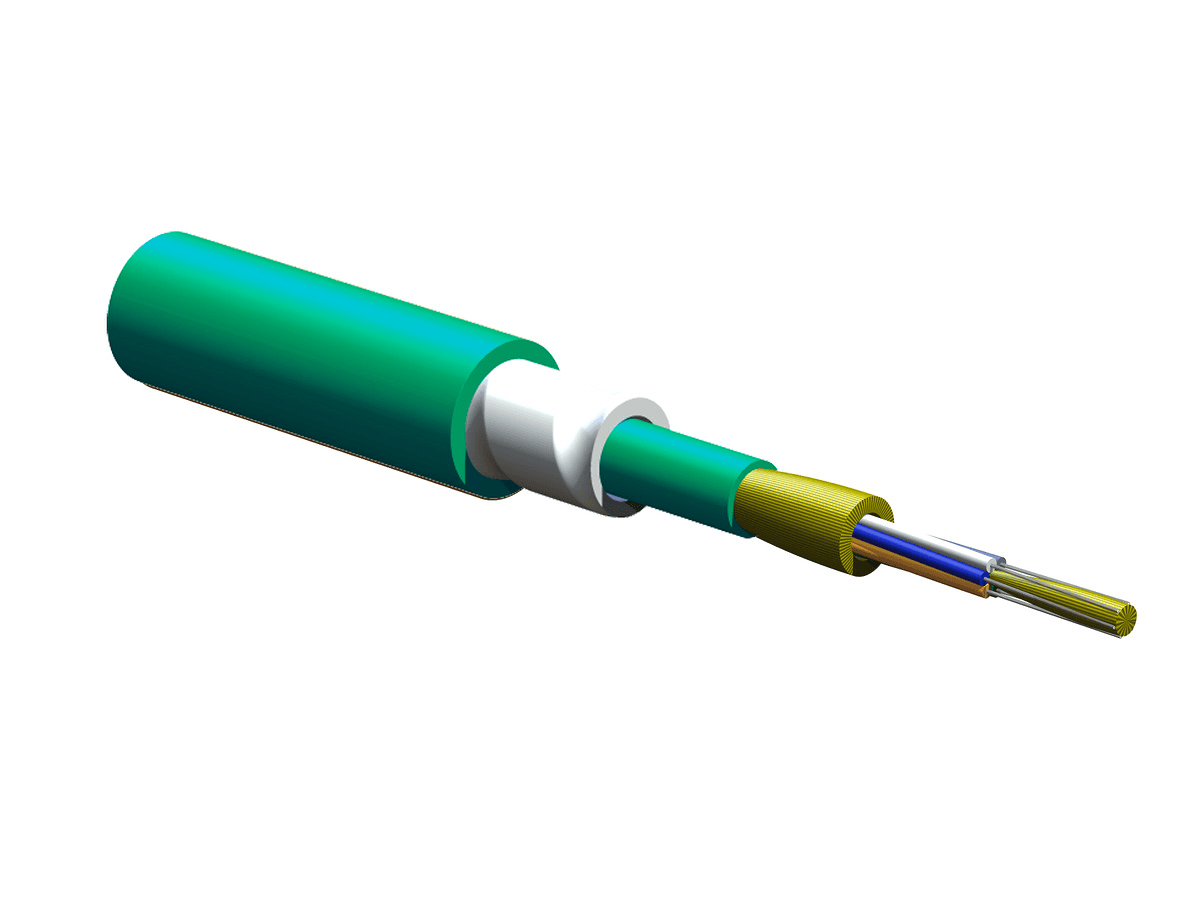

Corning 006T88-31190-D3, Plenum 6 F MIC® DX Tight-Buffered Armored Cable, 50 µm multimode (OM4)

Corning 006T88-31190-D3, Plenum 6 F MIC® DX Tight-Buffered Armored Cable, 50 µm multimode (OM4)

Summary: Corning 006T88-31190-D3 is a plenum 6 F MIC® DX tight-buffered armored cable with 50 µm multimode (OM4) fiber category suitable for indoor environments. It features dielectric armor, round cable geometry, and flame-retardant materials for safe and efficient operation.

General Specifications:

• Product Number: 006T88-31190-D3
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Dielectric armor
• Fiber Category: 50 µm MM (OM4)
• Flame Rating: Plenum (OFNP)
• Application: Horizontal, Plenum
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNP, CSA FT-6
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Fiber Count: 6
• Outer Jacket Color: Aqua
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Inner Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 3: Dielectric armor
• Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 132 N (29.67 lbf)
• Max. Tensile Strength, Short-Term: 440 N (98.92 lbf)
• Min. Bend Radius Installation: 153 mm (6.02 in)
• Min. Bend Radius Operation: 102 mm (4.02 in)
• Nominal Inner Cable Diameter: 5.2 mm (0.2 in)
• Nominal Outer Diameter: 10.2 mm (0.4 in )

Optical Characteristics:

• Fiber Code: T
• Performance Option Code: 90
• Fiber Category: OM4
• Fiber Type: Multimode
• Fiber Name: 50 µm MM (OM4)
• Maximum Attenuation: 3.0 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: IEC 60793-2-10
• Fiber Core Diameter: 50 µm
• Serial 1 Gigabit Ethernet: 1000 m / 600 m
• Serial 10 Gigabit Ethernet: 550 m / -
• Minimum Effective Modal Bandwidth (EMB): 4700 MHz*km / -
• Min. Overfilled Launch (OFL) Bandwidth: 3500 MHz*km / 500 MHz*km

Dimensions:

• Cable Weight: 110 kg/km (73.92 lb/1000 ft)
