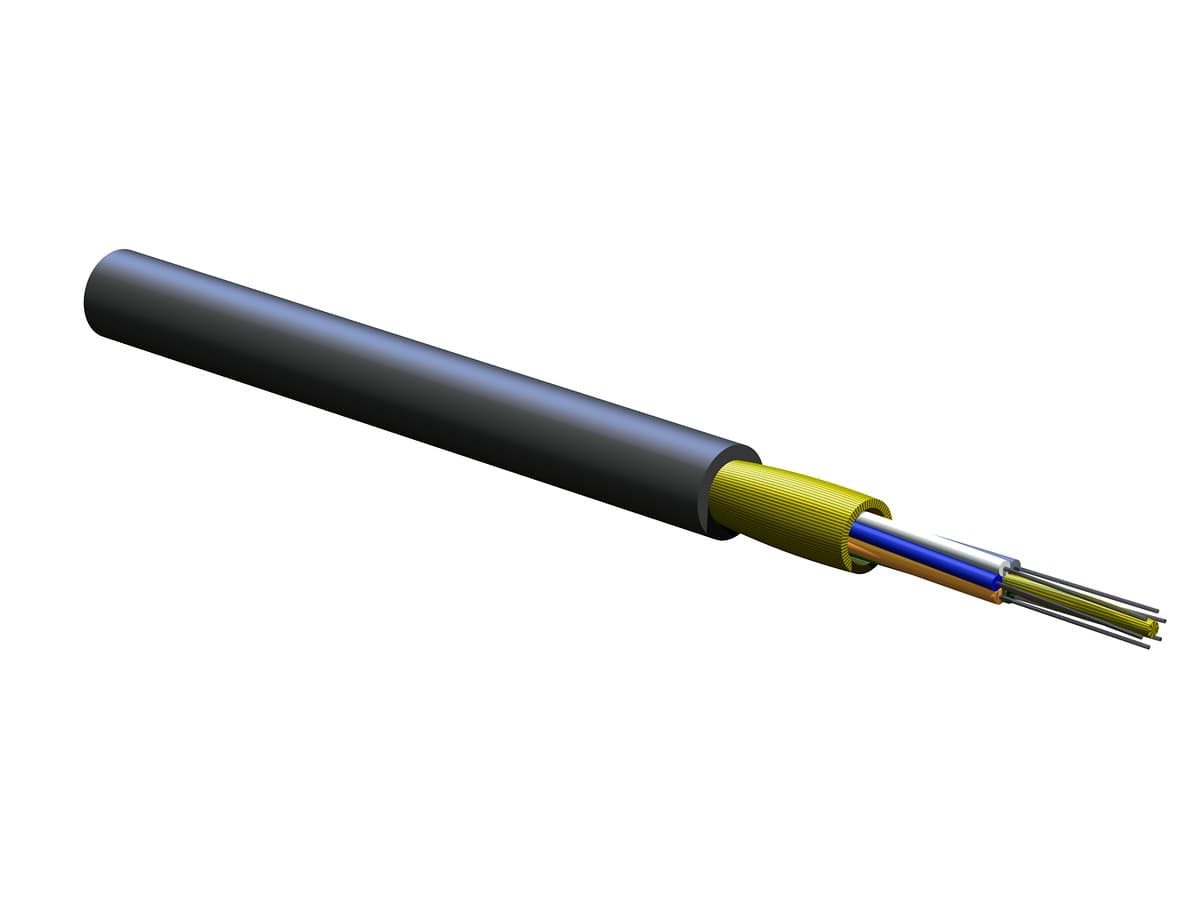

Corning 006T8F-31131-29 6-F — OM2 TB Riser FREEDM ONE 2.8/1.0 dB/km 700/500 MHz·km PRET 150 ClearCurve

6-F OM2 Tight-Buffered Indoor/Outdoor Riser FREEDM ONE Fiber Optic Cable

This cable delivers high-performance multimode connectivity for versatile installations. With a 50 µm OM2 core and ClearCurve® technology, it supports OFL bandwidths of 700 MHz·km at 850 nm and 500 MHz·km at 1300 nm, enabling reliable data transmission up to 750 m at 1 GbE and 150 m at 10 GbE. Built with a UV-resistant, flame-retardant riser-rated jacket and water-swellable strength members, it ensures durability in aerial, duct, general purpose, and riser applications. The tight-buffered design allows for easier termination without the need for fan-out kits, while maintaining an attenuation of 2.8/1.0 dB/km for dependable signal quality. Engineered for environments from -40°C to 70°C, this 6-fiber cable provides a balance of flexibility, protection, and performance for modern network infrastructures.

General Specifications
Product Number: 006T8F-31131-29
Cable Type: Tight-Buffered
Environment: Indoor/Outdoor
Product Type: Dielectric
Fiber Category: 50 µm MM (OM2)
Flame Rating: Riser (OFNR)
Application: Aerial, Direct Buried, Duct, General purpose, Horizontal, Riser
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: National Electrical Code® (NEC®) OFNR, UL-1666, CSA OFN FT-4
Design and Test Criteria: ICEA S-104-696

Environmental Conditions
Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 6
Outer Jacket Color: Black
Outer Jacket Material: Flame-Retardant, UV-Resistant
Tensile Strength Elements and/or Armoring - Layer 1: Water-swellable strength members
Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White

Mechanical Specifications
Max. Tensile Strength, Long-Term: 200 N (44.96 lbf)
Max. Tensile Strength, Short-Term: 675 N (151.75 lbf)
Min. Bend Radius Installation: 82.5 mm (3.25 in)
Min. Bend Radius Operation: 55 mm (2.17 in)
Nominal Outer Diameter: 5.5 mm (0.22 in)

Optical Characteristics
Fiber Code: T
Performance Option Code: 31
Fiber Category: OM2
Fiber Type: Multimode
Fiber Name: 50 µm MM (OM2)
Maximum Attenuation: 2.8 dB/km @ 850 nm / 1.0 dB/km @ 1300 nm
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: IEC 60793-2-10
Fiber Core Diameter: 50 µm
Serial 1 Gigabit Ethernet: 750 m / 600 m
Serial 10 Gigabit Ethernet: 150 m / -
Minimum Effective Modal Bandwidth (EMB): 950 MHz·km / -
Min. Overfilled Launch (OFL) Bandwidth: 700 MHz·km / 500 MHz·km

Dimensions
Cable Weight: 26 kg/km (17.47 lb/1000 ft)
