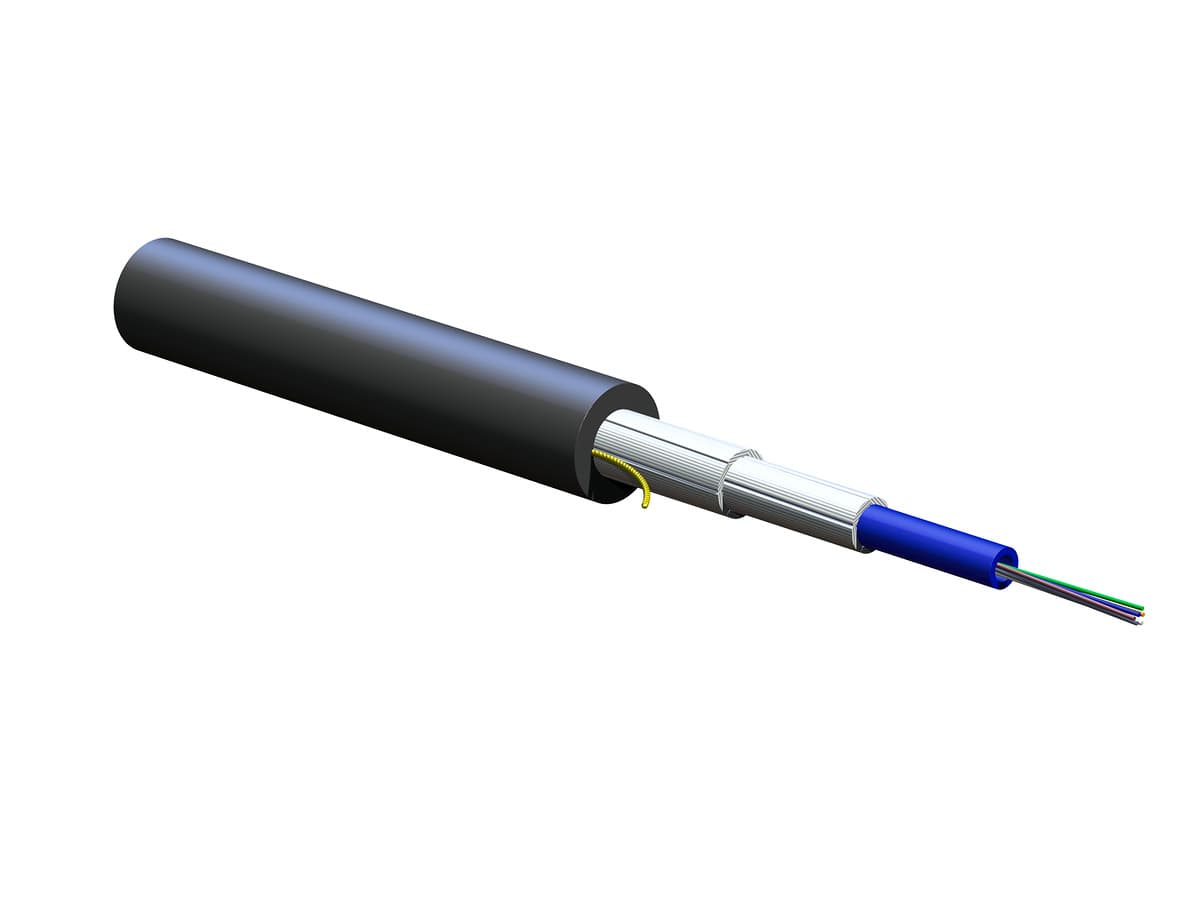

Corning 006TSF-T4180D20 — Indoor/Outdoor Fiber Cable, OM3, Loose Tube, Black, 6 Fiber

Corning  006TSF-T4180D20 — Indoor/Outdoor Fiber Cable, OM3, Loose Tube, Black, 6 Fiber

This Indoor/Outdoor Fiber Cable features a loose tube, dielectric design with 6 OM3 multimode fibers, providing high-performance data transmission for both indoor and outdoor applications. It is riser-rated (OFNR) and meets stringent flame-retardant, UV-resistant, and RoHS compliance standards, making it suitable for aerial, duct, direct buried, and general-purpose installations. The rugged construction includes dielectric strength members, water-swellable elements, and a black flame-retardant jacket for durability in demanding environments. With a nominal outer diameter of 7.4 mm, the cable supports up to 1000 m for 1 Gigabit Ethernet and 300 m for 10 Gigabit Ethernet at 850 nm. Designed to ANSI/ICEA S-104-696 standards, it offers excellent mechanical protection and optical performance for long-lasting reliability.

General Specifications
Product Number: 006TSF-T4180D20
Cable Type: Loose Tube
Environment: Indoor/Outdoor
Product Type: Dielectric
Fiber Category: 50 µm MM (OM3)
Flame Rating: Riser (OFNR)
Application: Aerial, Direct Buried, Duct, General purpose, Horizontal, Riser
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: National Electrical Code® (NEC®) OFCR, CSA OFC FT-4
Common Installations: Outdoor aerial and duct, indoor vertical riser, general purpose horizontal per NEC® Article 770
Design and Test Criteria: ANSI/ICEA S-104-696

Environmental Conditions
Notes: Store in appropriate temperature before installation for optimal results
Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Fiber Count: 6
Number of Ripcords: 1
Outer Jacket Color: Black
Outer Jacket Material: Flame-Retardant, UV-Resistant
Tensile Strength Elements/Armoring Layer 1: Dielectric strength members
Tensile Strength Elements/Armoring Layer 2: Water-swellable dielectric strength members
Number of Active Tubes: 1
Number of Tube Positions: 1
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White
Fibers per Tube: 6

Mechanical Specifications
Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
Min. Bend Radius Installation: 111 mm (4.37 in)
Min. Bend Radius Operation: 37 mm (1.46 in)
Nominal Outer Diameter: 7.4 mm (0.29 in) ± 0.3 mm

Optical Characteristics
Fiber Code: T
Performance Option Code: 80
Fiber Category: OM3
Fiber Type: Multimode
Fiber Name: 50 µm MM (OM3)
Maximum Attenuation: 3.0 dB/km / 1.0 dB/km
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: IEC 60793-2-10
Fiber Core Diameter: 50 µm
Serial 1 Gigabit Ethernet: 1000 m / 600 m
Serial 10 Gigabit Ethernet: 300 m / -
Minimum Effective Modal Bandwidth (EMB): 950 MHzkm / -
Min. Overfilled Launch (OFL) Bandwidth: 1500 MHzkm / - 500 MHz*km

Dimensions
Cable Weight: 56 kg/km (37.63 lb/1000 ft)
