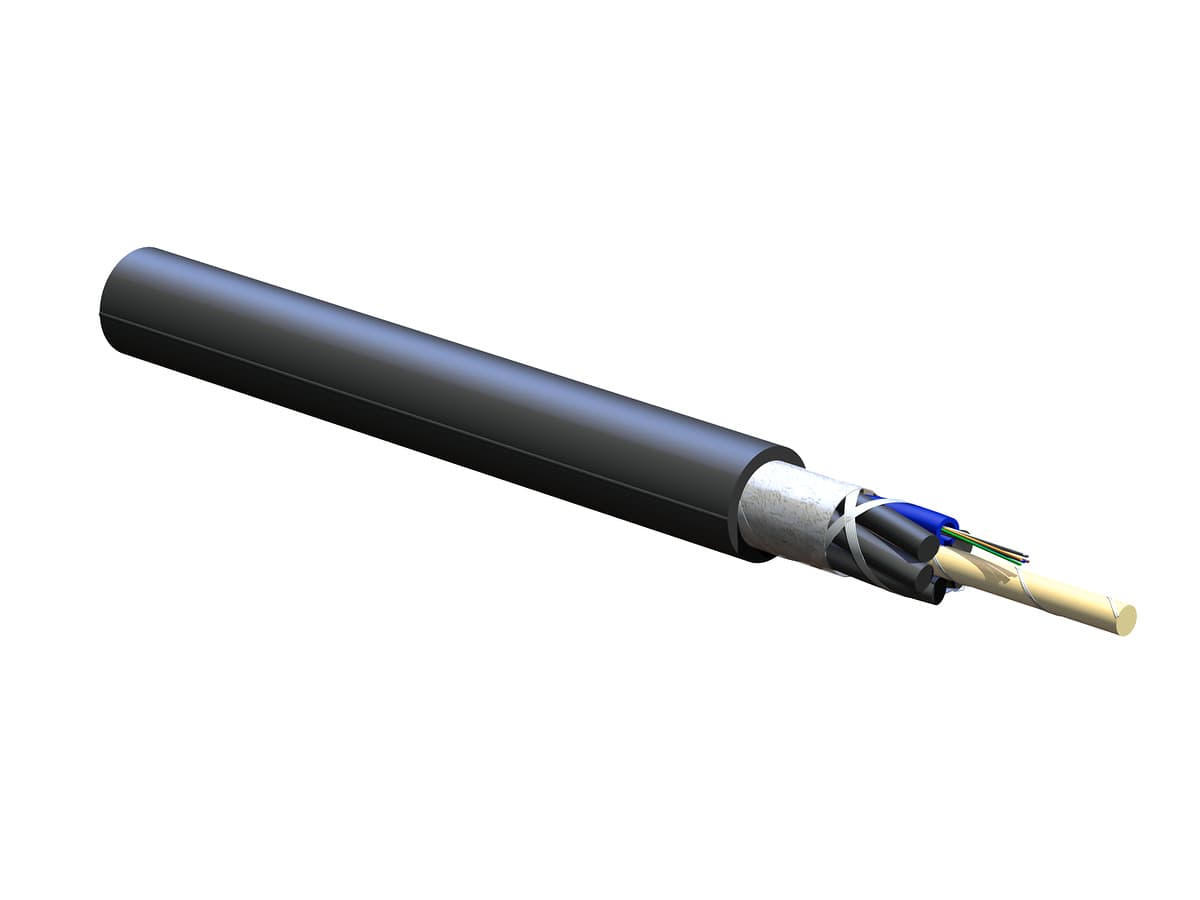

Corning 006TU4-T4780D20 – 6-F OM3 50/125 LT Duct/Aerial Outdoor, Gel-Free 3.0/1.5 dB/km Altos Fast Access

Corning 006TU4-T4780D20 – 6-F OM3 50/125 LT Duct/Aerial Outdoor, Gel-Free 3.0/1.5 dB/km Altos Fast Access

This 6-fiber OM3 loose tube cable is designed for reliable outdoor aerial and duct installations. Featuring a dielectric central element and black polyethylene jacket, it provides durable, gel-free protection for multimode fibers in harsh environments. The cable includes water-swellable tape and Telcordia color-coded fibers for easy identification and moisture resistance. OM3 50 µm fibers deliver low attenuation at 850/1300 nm, supporting high-speed 1G and 10G Ethernet networks over long distances. Engineered to ANSI/ICEA S-87-640 standards, this cable ensures fast deployment, strong mechanical performance, and dependable network access for outdoor infrastructure.

General Specifications
Product Number: 006TU4-T4780D20
Cable Type: Loose Tube
Environment: Outdoor
Product Type: Dielectric
Fiber Category: 50 µm MM (OM3)
Application: Aerial, Duct
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Common Installations: Outdoor lashed aerial and duct, indoor when installed according to National Electrical Code® (NEC®) Article 770
Design and Test Criteria: ANSI/ICEA S-87-640

Environmental Conditions
Notes: Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results.
Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 6
Outer Jacket Color: Black
Outer Jacket Material: Polyethylene (PE)
Buffer Tube Color: Blue
Buffer Tube Diameter: 2.5 mm (0.1 in)
Number of Active Tubes: 1
Number of Filling Elements: 5
Number of Tube Positions: 6
Tape: Water-swellable
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White
Fibers per Tube: 6
Color Code Standards: Telcordia

Mechanical Specifications
Max. Tensile Strength, Long-Term: 890 N (200.08 lbf)
Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
Nominal Outer Diameter: 10.5 mm (0.41 in)
Min. Bend Diameter Installation: 316 mm (12.44 in)
Min. Bend Diameter Operation: 210 mm (8.27 in)

Optical Characteristics
Fiber Code: T
Performance Option Code: 80
Fiber Category: OM3
Fiber Type: Multimode
Fiber Name: 50 µm MM (OM3)
Maximum Attenuation: 3.0 dB/km / 1.0 dB/km
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: IEC 60793-2-10
Fiber Core Diameter: 50 µm
Serial 1 Gigabit Ethernet: 1000 m / 600 m
Serial 10 Gigabit Ethernet: 300 m / -
Minimum Effective Modal Bandwidth (EMB): 950 MHzkm / -
Min. Overfilled Launch (OFL) Bandwidth: 1500 MHzkm / - 500 MHz*km

Dimensions
Cable Weight: 73 kg/km (49.05 lb/1000 ft)
