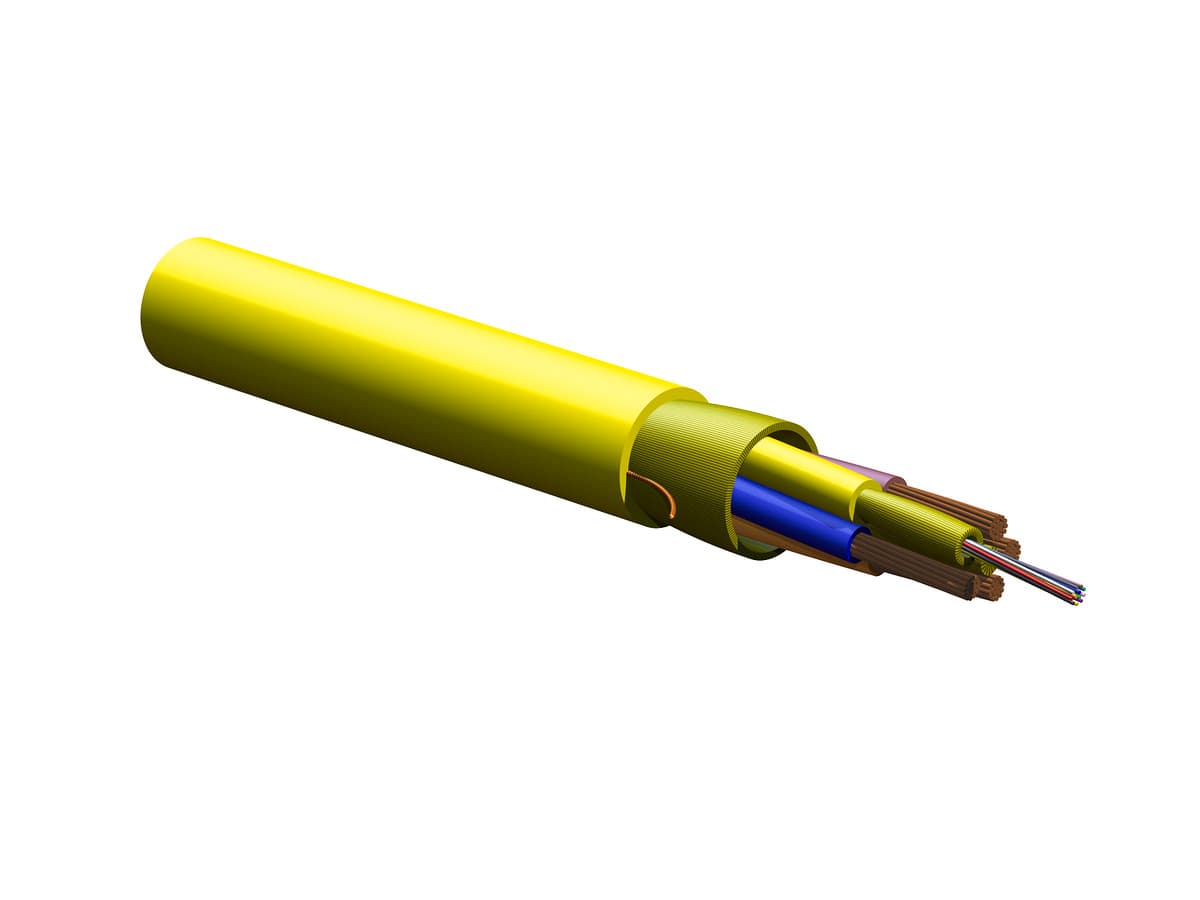

Corning 006ZT8-41Y01M20 – Composite Cable, Interlocked Armor, OS2, Loose Tube, Riser (CL3R), Yellow, 6 Fibers

Corning 006ZT8-41Y01M20 – Indoor Loose Tube Composite Fiber Optic Cable

The Corning 006ZT8-41Y01M20 is a 6-fiber SMF-28 Ultra single-mode composite cable with loose tube construction, designed for indoor plenum applications. It features a yellow flame-retardant outer jacket with a CL3P plenum rating and meets NEC Article 800 standards. The cable includes one active tube containing six fibers, along with four 16 AWG solid conductors, making it suitable for both fiber and electrical connectivity needs. It offers a nominal outer diameter of 7.3 mm, a minimum bend radius of 110 mm during installation, and 73.66 mm in operation. Compliant with ITU-T G.657.A1, it provides low attenuation at 1310 nm, 1383 nm, and 1550 nm wavelengths.

Product Number: 006ZT8-41Y01M20

Environment: Indoor
Cable Type: Loose Tube
Fiber Category: SMF-28 Ultra fiber
Flame Rating: Plenum CL3P
Application: Plenum
Fiber Count: 6

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Approvals and Listings: National Electrical Code (NEC) Article 800

• Common Installations: Compliant with ICEA S-83-596 (compliant at tensile loads listed in the specifications table)

• Design and Test Criteria: ICEA S-120-742, UL 13, 300 VAC, 80 °C, ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 0 °C (32 °F to 32 °F)

• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F)

• Temperature Range, Storage: -40 °C to -40 °C (-40 °F to -40 °F)

Cable Design:

• Central Element: Yarn

• Fiber Count: 6

• Buffer Tube Color Coding: Yellow

• Number of Ripcords: 1

• Outer Jacket Color: Yellow

• Outer Jacket Material: Flame-retardant

• Buffer Tube Color: White

• Buffer Tube Diameter: 2 mm (0.08 in)

• Conductor: 16 AWG

• Number of Active Tubes: 1

• Number of Conductors: 4

• Number of Tube Positions: 1

• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White

• Fibers per Tube: 6

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 200 N (44.96 lbf)

• Max. Tensile Strength, Short-Term: 667 N (149.95 lbf)

• Min. Bend Radius Installation: 110 mm (4.33 in)

• Min. Bend Radius Operation: 73.66 mm (2.9 in)

• Nominal Outer Diameter: 7.3 mm (0.29 in)

Optical Characteristics:

• Fiber Code: Z

• Fiber Name: SMF-28 Ultra fiber

• Fiber Type: Single-mode

• Performance Option Code: 1

• Maximum Attenuation: 0.4 dB/km (1310 nm), 0.4 dB/km (1383 nm), 0.3 dB/km (1550 nm)

• Wavelengths: 1310 nm / 1383 nm / 1550 nm

• Fiber Category: ITU-T G.657.A1

Ordering Information:

• Weight: 8794 kg/km (5909.3 lb/1000 ft)

• Conductor Type: Solid

• Conductor/Pair Count: 4 pair

• Fire Rating: General Purpose

• Jacket Color: Yellow

• Type: Composite

• UNSPSC Code: 26121600
