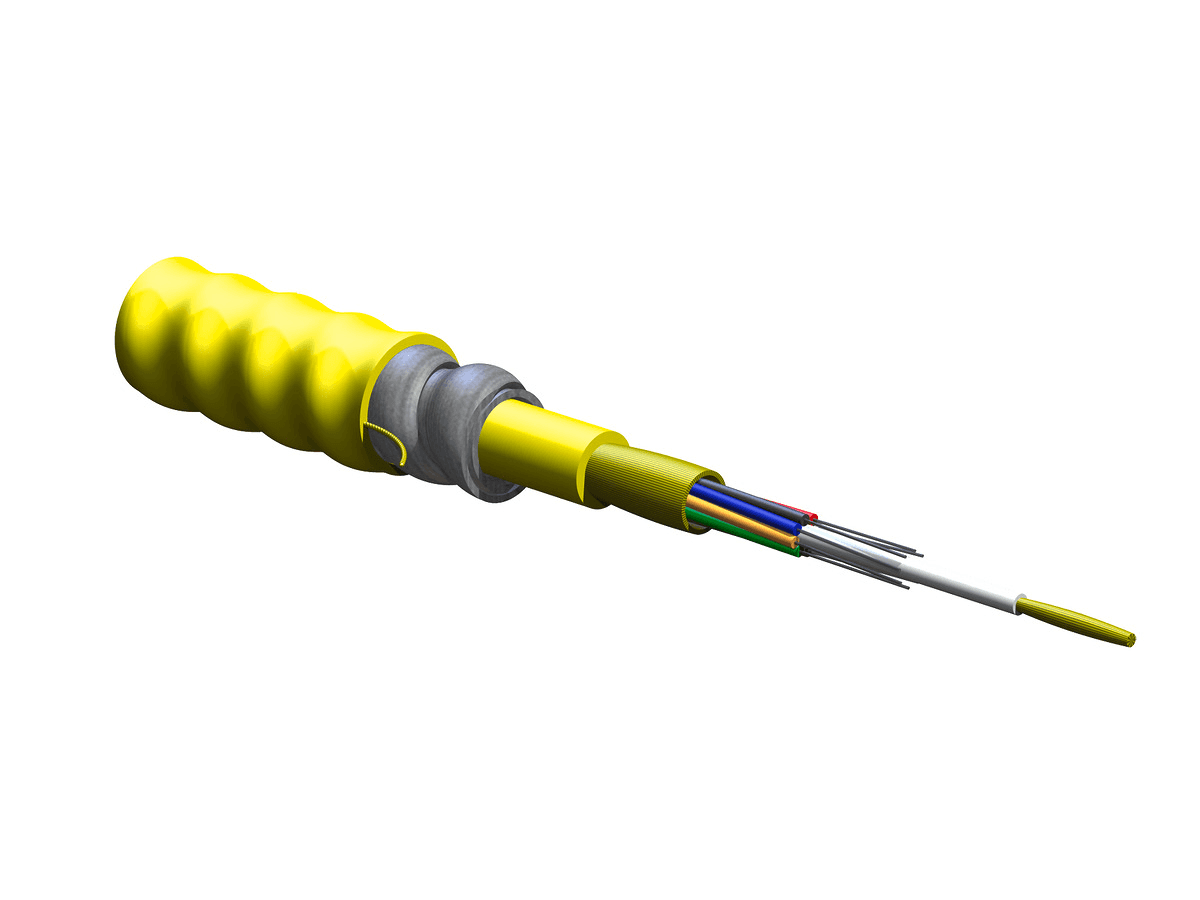

Corning 008E81-31131-A1, Single mode (OS2) MIC® Tight-Buffered Interlocking Armored Cable, Riser 8 F

Corning 008E81-31131-A1, Single mode (OS2) MIC® Tight-Buffered Interlocking Armored Cable, Riser 8 F

Summary: The Corning 008E81-31131-A1 cable is a single-mode (OS2) MIC® tight-buffered interlocking armored cable designed for indoor use. It features a Riser flame rating and is suitable for horizontal and riser applications with a round cable geometry.

General Specifications:

• Product Number: 008E81-31131-A1
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Interlocking Armor
• Fiber Category: Single-mode (OS2)
• Flame Rating: Riser (OFCR)
• Application: Horizontal, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCR, UL 1666, CSA FT-4
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Temperature Range, Operation: -20 °C to 70 °C (-4 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Jacketed GRP
• Fiber Count: 8
• Number of Ripcords: 2
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Inner Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 3: Interlocking Armor
• Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White, Red, Black
• Flame Rating: Riser (OFCR)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term, ≤12F: 200 N (44.96 lbf)
• Max. Tensile Strength, Long-Term, >12F: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term, ≤12F: 660 N (148.37 lbf)
• Max. Tensile Strength, Short-Term, >12F: 1320 N (296.75 lbf)
• Min. Bend Radius Installation: 170 mm (6.69 in)
• Min. Bend Radius Operation: 113 mm (4.45 in)
• Nominal Inner Cable Diameter: 5.55 mm (0.22 in)
• Nominal Outer Diameter: 11.3 mm (0.44 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 993 kg/km (667.27 lb/1000 ft)
