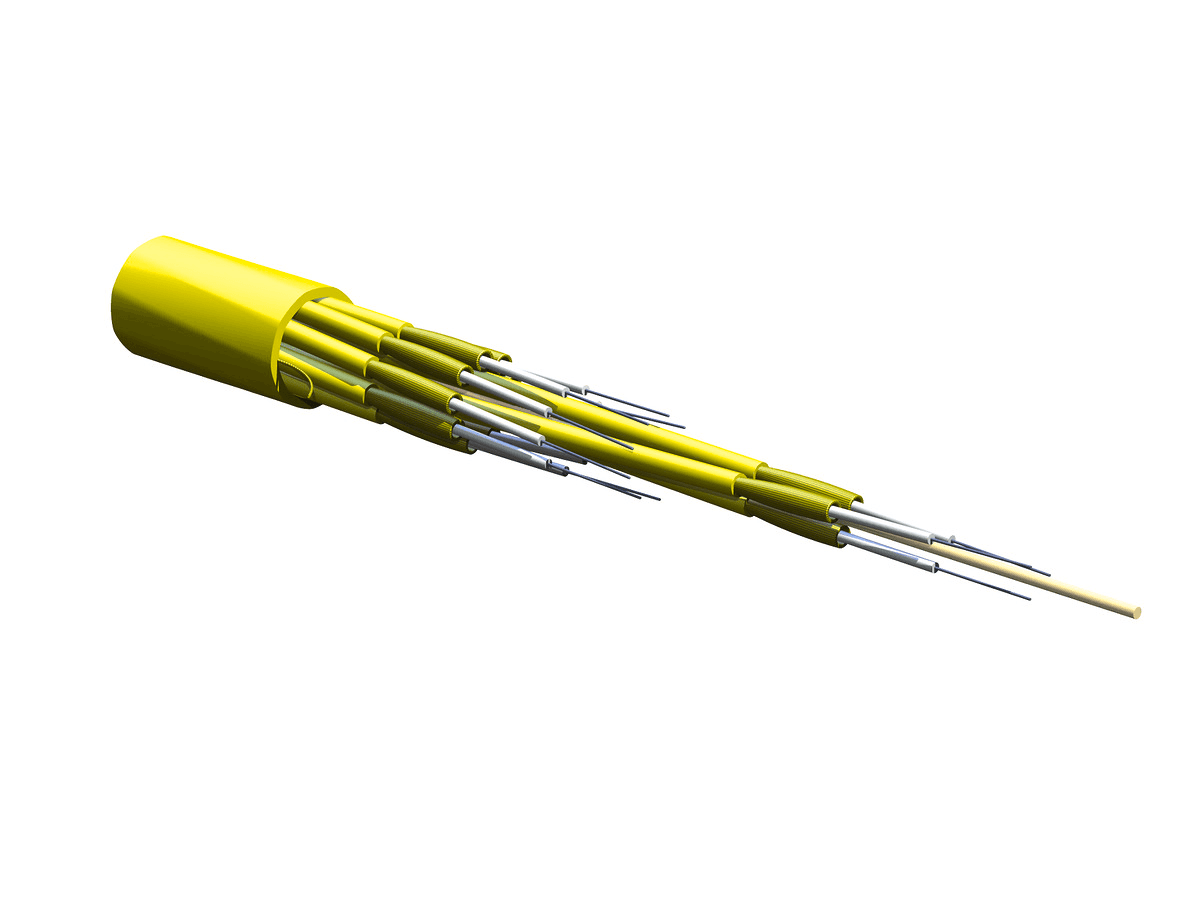

Corning 012E68-31331-29, Plenum 12 F Single-mode Fan-Out Tight-Buffered Cable, 2.0 mm Subunits (OS2)

Corning 012E68-31331-29, Plenum 12 F Single-mode Fan-Out Tight-Buffered Cable, 2.0 mm Subunits (OS2)

Summary: This Corning 012E68-31331-29 cable is a plenum 12 F single-mode fan-out tight-buffered cable suitable for indoor distribution. It has a flame rating of Plenum (OFNP) and is designed for horizontal, plenum, and riser applications.

General Specifications:

• Product Number: 012E68-31331-29
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Distribution
• Fiber Category: Single-mode (OS2)
• Flame Rating: Plenum (OFNP)
• Application: Horizontal, Plenum, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNP, UL-1666, CSA FT-6
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: GRP
• Fiber Count: 12
• Number of Ripcords: 1
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Tensile Strength Elements and/or Armoring - Layer 2: Dielectric strength members
• Number of Subunits Layer 1: 3
• Number of Subunits Layer 2: 9
• Subunit Color: Yellow
• Subunit Diameter: 2 mm (0.08 in)
• Subunit Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 3: Dielectric strength members
• Tight Buffer Color: White
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Short-Term: 440 N (98.92 lbf)
• Min. Bend Radius Installation: 158 mm (6.22 in)
• Min. Bend Radius Operation: 105 mm (4.13 in)

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 99 kg/km (66.52 lb/1000 ft)
