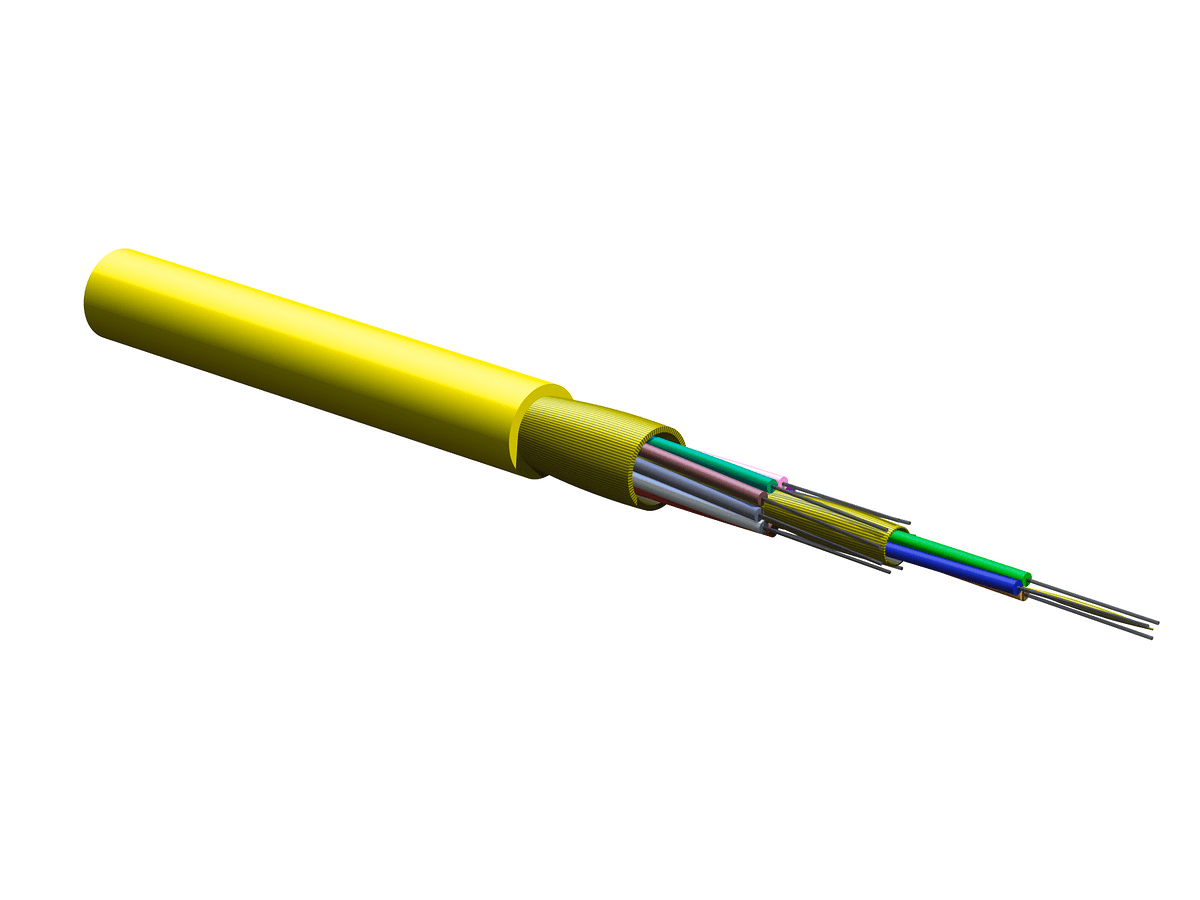

Corning 012E88-33131-29, Plenum 12 F MIC® Tight-Buffered Cable Single-mode (OS2)

Corning 012E88-33131-29, Plenum 12 F MIC® Tight-Buffered Cable Single-mode (OS2)

Summary: This Corning 012E88-33131-29 cable is a plenum-rated, tight-buffered single-mode fiber optic cable designed for indoor distribution applications with a round cable geometry.

General Specifications:

• Product Number: 012E88-33131-29
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Distribution
• Fiber Category: Single-mode (OS2)
• Flame Rating: Plenum (OFNP)
• Application: Horizontal, Plenum, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNP, NFPA 262, CSA FT-6
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Yarn
• Fiber Count: 12
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Tensile Strength Elements and/or Armoring - Layer 2: Dielectric strength members
• Tight Buffer Color, Layer 1: Blue, Orange, Green
• Tight Buffer Color, Layer 2: Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term, ≤12F: 132 N (29.67 lbf)
• Max. Tensile Strength, Long-Term, >12F: 200 N (44.96 lbf)
• Max. Tensile Strength, Short-Term, ≤12F: 440 N (98.92 lbf)
• Max. Tensile Strength, Short-Term, >12F: 660 N (148.37 lbf)
• Min. Bend Radius Installation: 92 mm (3.62 in)
• Min. Bend Radius Operation: 60 mm (2.36 in)
• Nominal Outer Diameter: 6 mm (0.24 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 3.38 kg/km (2.27 lb/1000 ft)
