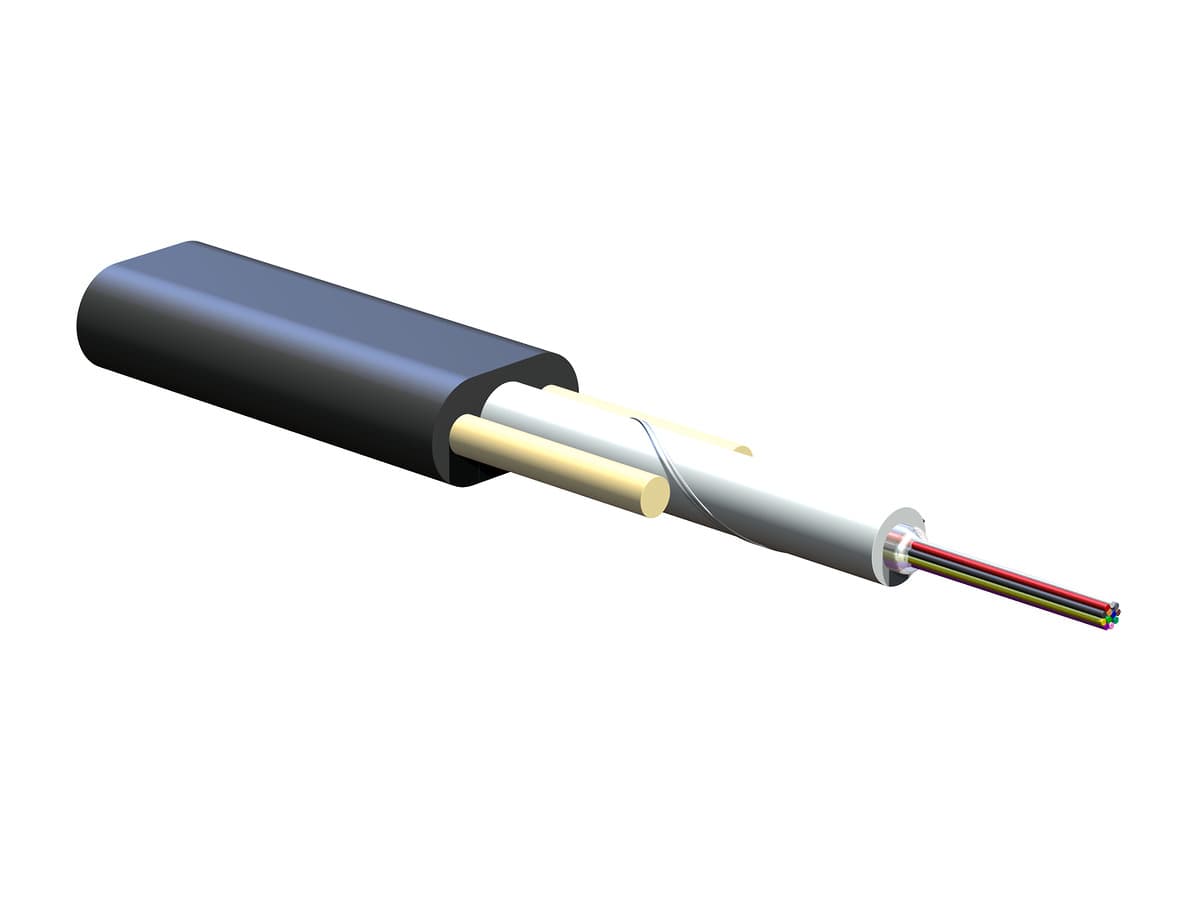

Corning 012EB4-14100A20 – 12-Figure Self-Supporting Drop Cable, Single-mode OS2, All-Dielectric

Corning 012EB4-14100A20 – 12-Figure Self-Supporting Drop Cable, Single-mode OS2, All-Dielectric

This 12-fiber self-supporting drop cable is designed for outdoor installations requiring reliable single-mode (OS2) performance. Featuring an all-dielectric construction with polyethylene jacket and dielectric strength members, it provides excellent durability while eliminating the need for metallic components. The cable supports 1310, 1383, and 1550 nm wavelengths with maximum attenuation of 0.4/0.4/0.25 dB/km, delivering optimal performance for fiber-to-the-home (FTTH) and drop applications. Its figure-8 design allows for easy aerial deployment, and the 12-fiber count is color-coded to Telcordia standards for simple identification. Ideal for USDA rural development programs and other outdoor networks, this cable combines high performance, flexibility, and ease of installation.

General Specifications
Product Number: 012EB4-14101A20
Cable Type: Single Tube
Environment: Outdoor
Product Type: Self-Supporting, Figure-8
Fiber Category: Single-mode (OS2)
Application: Drop
Cable Geometry: Other

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: USDA Rural Development Programs
Compliance: Not Available

Environmental Conditions
Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Fiber Count: 12
Outer Jacket Color: Black
Outer Jacket Material: Polyethylene (PE)
Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
Buffer Tube Diameter: 3 mm (0.12 in)
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Color Code Standards: Telcordia

Mechanical Specifications
Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
Min. Bend Radius Operation: 80 mm (3.15 in)
Nominal Outer Diameter: 8.1 mm x 4.5 mm (0.32 in x 0.18 in)

Optical Characteristics
Fiber Code: E
Performance Option Code: 01
Fiber Category: OS2
Fiber Type: Single-mode (OS2) / 250 µm
Fiber Name: Single-mode (OS2)
Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths: 1310 nm / 1383 nm / 1550 nm
Fiber Compliance: ITU-T G.652.D

Dimensions
Cable Weight: 30 kg/km (20.16 lb/1000 ft)

Ordering Information
Convenient Contractor-sized Packaging Length: 609.6 m (2000 ft), gross weight 65 lbs., no specialized equipment needed
