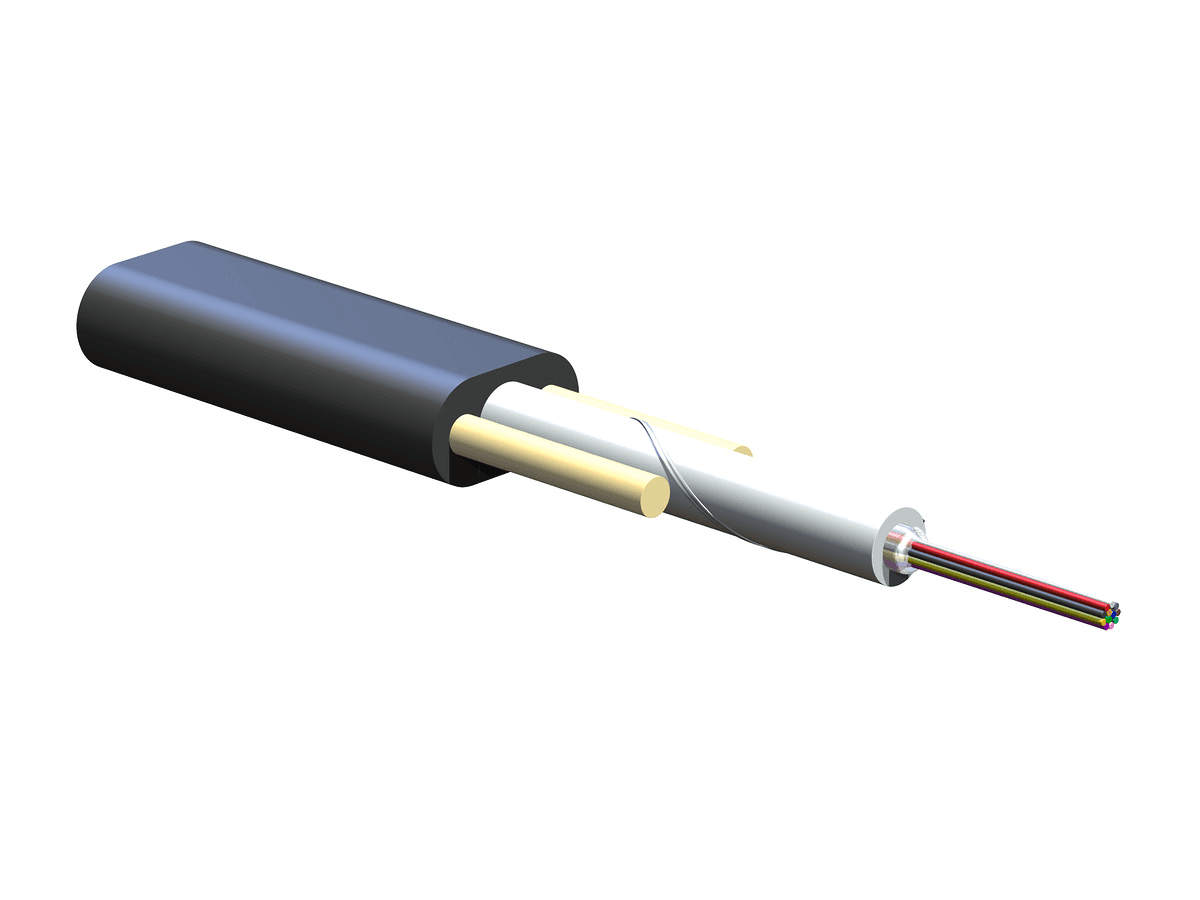

Corning 012EB4-14101A20, 12 F Single-mode (OS2) SST-Drop™ Gel-Filled Single-Tube Cable

Corning 012EB4-14101A20, 12 F Single-mode (OS2) SST-Drop™ Gel-Filled Single-Tube Cable

Summary: Corning 012EB4-14101A20 is a 12 F Single-mode (OS2) SST-Drop™ Gel-Filled Single-Tube Cable designed for outdoor use with dielectric properties and drop application.

General Specifications:

• Product Number: 012EB4-14101A20
• Cable Type: Single Tube
• Environment: Outdoor
• Product Type: Dielectric
• Fiber Category: Single-mode (OS2)
• Application: Drop
• Cable geometry: Other

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: USDA Rural Development Programs
• Compliance: Not Available

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Cable Print Unit of Measure: Feet
• Fiber Count: 12
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Buffer Tube Diameter: 3 mm (0.12 in)
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
• Min. Bend Radius Operation: 80 mm (3.15 in)
• Nominal Outer Diameter: 8.1 mmx 4.5 mm (0.32 inx 0.18 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 30 kg/km (20.16 lb/1000 ft)

Ordering Information:

• Convenient Contractor-sized Packaging Length: 609.6 m (2000 ft) gross weight 65 lbs., no specialized equipment needed
