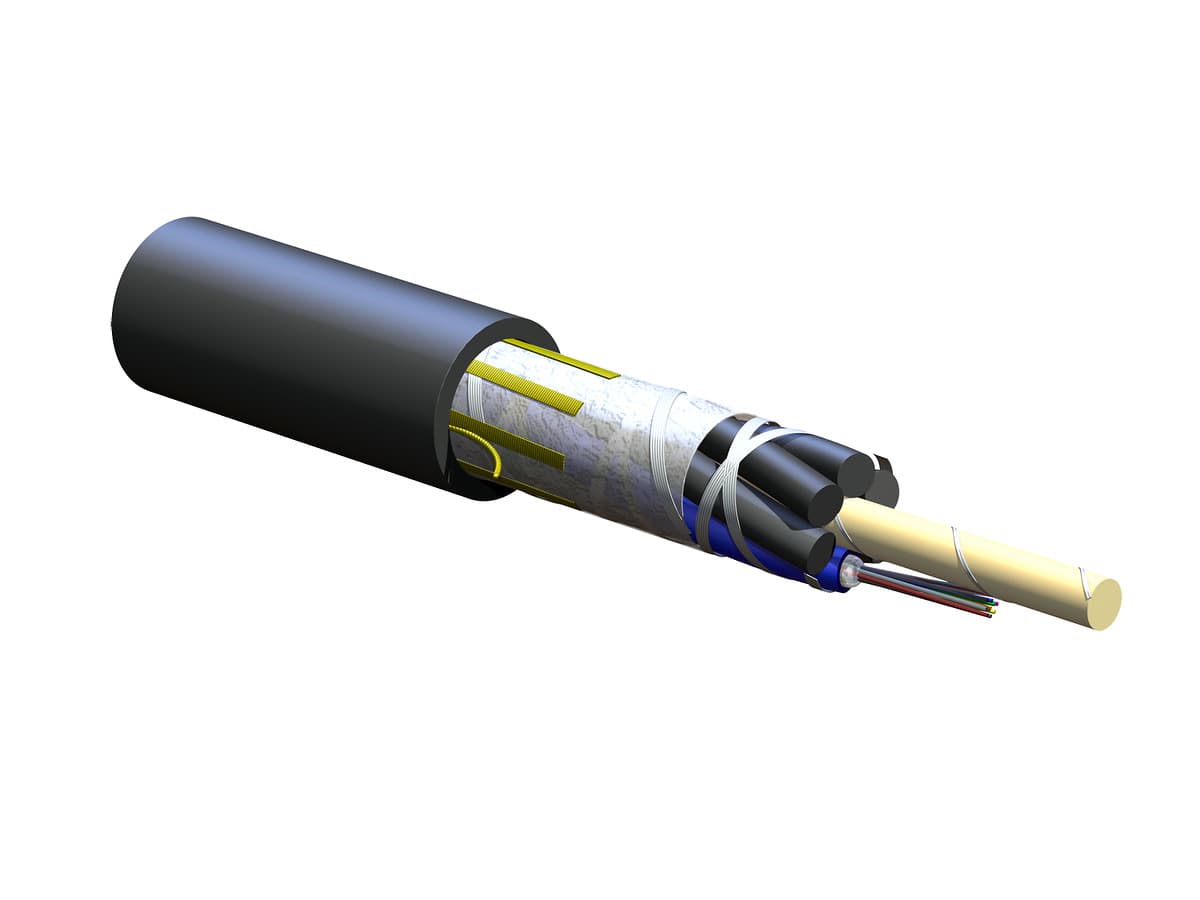

Corning 012EN4-T4S01A20 – Gel-Filled Loose Tube Cable, Single-Mode OS2, Black, Outdoor ADSS, 12-Fiber

Corning 012EN4-T4S01A20 – Gel-Filled Loose Tube Cable, Single-Mode OS2, Black, Outdoor ADSS, 12-Fiber

This 12-fiber gel-filled loose tube cable is designed for outdoor self-supporting aerial (ADSS) deployments, offering high-performance single-mode (OS2) transmission. The dielectric central element and black polyethylene jacket provide mechanical protection and environmental durability, while the gel-filled buffer tube ensures moisture resistance and long-term reliability. Each fiber is color-coded according to Telcordia standards for easy identification, with water-swellable tape providing additional protection against water ingress. Supporting 1310, 1383, and 1550 nm wavelengths with ultra-low attenuation, this cable is suitable for long-distance single-mode applications. Its robust tensile strength, nominal outer diameter, and optimized bend radius allow safe installation and operation under a variety of aerial span conditions.

General Specifications
Product Number: 012EN4-T4S01A20
Cable Type: Loose Tube
Environment: Outdoor
Product Type: Self-Supporting, ADSS
Fiber Category: Single-mode (OS2)
Cable Geometry: Other

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: RDUP 7 CFR 1755.900 (formerly RUS)
Common Installations: Outdoor self-supporting aerial
Design and Test Criteria: ANSI/ICEA S-87-640

Environmental Conditions
Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 12
Number of Ripcords: 1
Buffer Tube Color Coding, Layer 1: Blue
Outer Jacket Color: Black
Outer Jacket Material: Polyethylene (PE)
Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
Buffer Tube Diameter: 2.5 mm (0.1 in)
Number of Active Tubes: 1
Number of Filling Elements: 5
Number of Tube Positions: 6
Tape: Water-swellable
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12

Mechanical Specifications
Nominal Outer Diameter: 10.9 mm (0.43 in)
Min. Bend Diameter Installation: 328 mm (12.91 in)
Min. Bend Diameter Operation: 218 mm (8.58 in)

Optical Characteristics
Fiber Code: E
Performance Option Code: 01
Fiber Category: OS2
Fiber Type: Single-mode (OS2) / 250 µm
Fiber Name: Single-mode (OS2)
Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths: 1310 nm / 1383 nm / 1550 nm
Fiber Compliance: ITU-T G.652.D

Dimensions
Cable Weight: 92 kg/km (61.82 lb/1000 ft)

Installation Conditions
Span vs. Sag/Tension tables are provided for NESC Light, Medium, and Heavy loads across various span lengths from 15 m to 320 m to guide proper installation.
