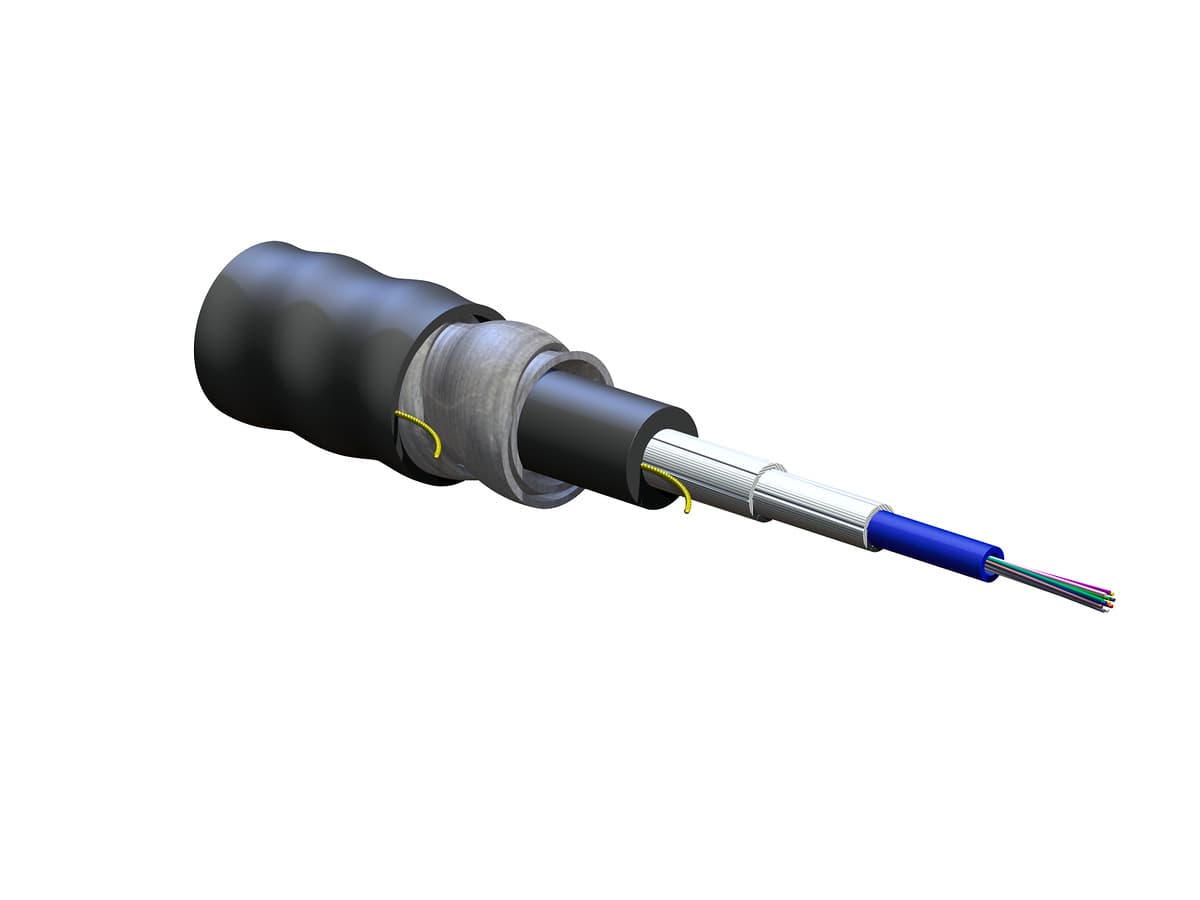

The Corning 012ESF-T4101DA1 cable is a 12-fiber loose tube single-mode (OS2) design with aluminum interlocking armor for robust indoor/outdoor use. It is Riser (OFCR) rated, making it suitable for aerial, duct, direct buried, horizontal, and riser installations. The cable’s construction includes water-swellable dielectric strength members, a UV-resistant flame-retardant jacket, and one active tube containing 12 color-coded fibers. It delivers excellent optical performance with a maximum attenuation of 0.4 dB/km at 1310 and 1383 nm, and 0.3 dB/km at 1550 nm, compliant with ITU-T G.652.D standards. With strong tensile strength, wide temperature tolerance, and corrosion-resistant armor, this cable is built for reliability in challenging environments.

General Specifications
Product Number: 012ESF-T4101DA1
Cable Type: Loose Tube
Environment: Indoor/Outdoor
Product Type: Interlocking Armor
Fiber Category: Single-mode (OS2)
Flame Rating: Riser (OFCR)
Application: Aerial, Direct Buried, Duct, General Purpose, Horizontal, Riser
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: National Electrical Code® (NEC®) OFCR, CSA OFC FT-4
Common Installations: Outdoor aerial and duct, indoor vertical riser, and general-purpose horizontal per NEC® Article 770
Design and Test Criteria: ANSI/ICEA S-104-696

Environmental Conditions
Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Fiber Count: 12
Number of Ripcords: 1
Outer Jacket Color: Black
Outer Jacket Material: Flame-Retardant, UV-Resistant
Tensile Strength Elements and/or Armoring - Layer 1: Water-swellable dielectric strength members
Tensile Strength Elements and/or Armoring - Layer 2: Interlocking Armor
Inner Jacket Material: Flame-Retardant, UV-Resistant
Number of Active Tubes: 1
Number of Tube Positions: 1
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12

Mechanical Specifications
Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
Min. Bend Radius Installation: 205 mm (8.07 in)
Min. Bend Radius Operation: 137 mm (5.39 in)
Nominal Outer Diameter: 13.7 mm (0.54 in)

Optical Characteristics
Fiber Code: E
Performance Option Code: 01
Fiber Category: OS2
Fiber Type: Single-mode (OS2) / 250 µm
Fiber Name: Single-mode (OS2)
Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths: 1310 nm / 1383 nm / 1550 nm
Fiber Compliance: ITU-T G.652.D

Dimensions
Cable Weight: 146 kg/km (98.11 lb/1000 ft)
