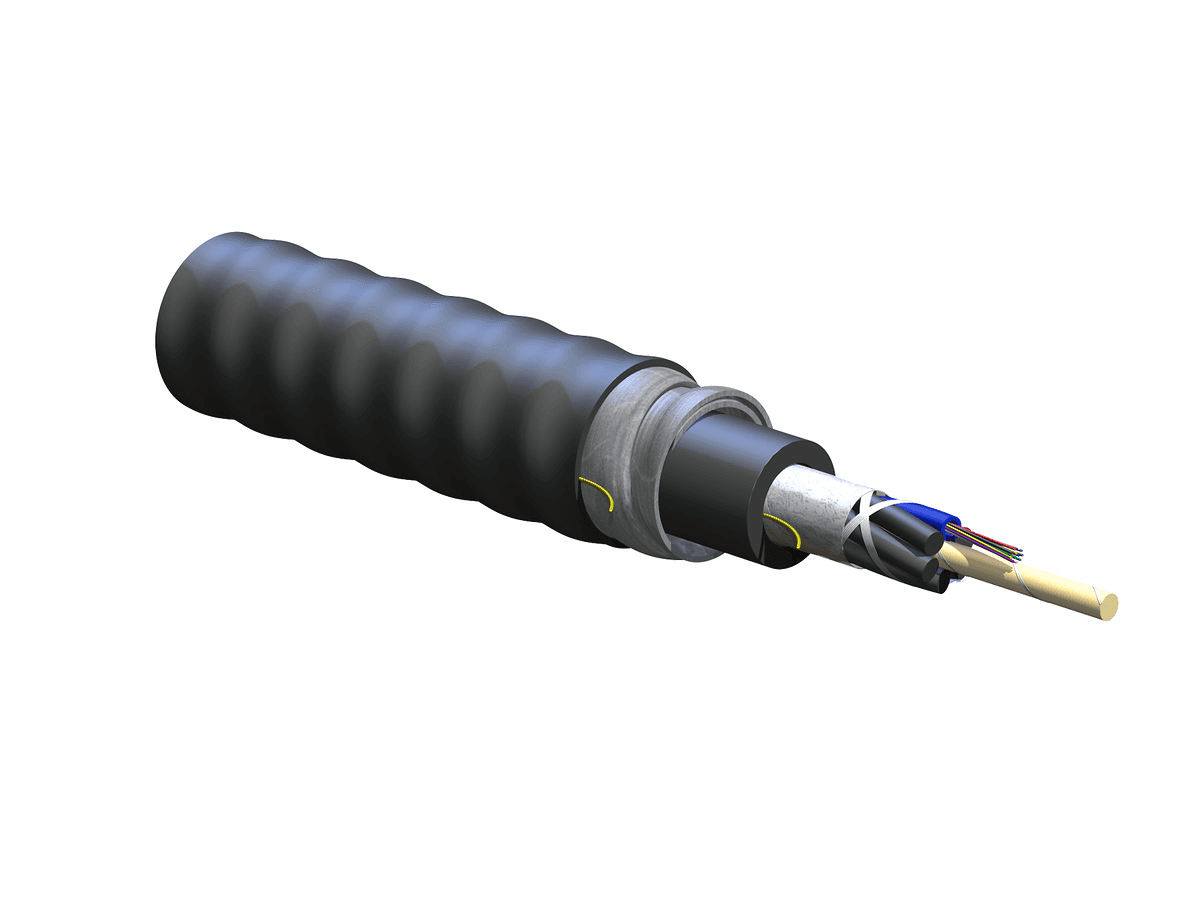

Corning 012ESP-T4101DA3, 12 F Single-mode (OS2) Plenum Interlocking Armored Cable, FREEDM® Loose Tube, Gel-Free

Corning 012ESP-T4101DA3, 12 F Single-mode (OS2) Plenum Interlocking Armored Cable, FREEDM® Loose Tube, Gel-Free

Summary: Corning 012ESP-T4101DA3 is a 12 F single-mode (OS2) plenum interlocking armored cable designed for indoor/outdoor use with a flame rating of Plenum (OFCP) and a round cable geometry.

General Specifications:

• Product Number: 012ESP-T4101DA3
• Cable Type: Loose Tube
• Environment: Indoor/Outdoor
• Product Type: Interlocking Armor
• Fiber Category: Single-mode (OS2)
• Flame Rating: Plenum (OFCP)
• Application: Aerial, Direct Buried, Duct, Horizontal
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNP
• Common Installations: Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: ANSI/ICEA S-104-696, CSA FT-6

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 12
• Number of Ripcords: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Interlocking Armor
• Buffer Tube Color: Blue
• Buffer Tube Diameter: 3 mm (0.12 in)
• Inner Jacket Material: Flame-Retardant, UV-Resistant
• Number of Active Tubes: 1
• Number of Filling Elements: 5
• Number of Tube Positions: 6
• Tape: Water-swellable
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
• Min. Bend Radius Installation: 226.5 mm (8.92 in)
• Min. Bend Radius Operation: 151 mm (5.94 in)
• Nominal Outer Diameter: 15.1 mm (0.59 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 1924 kg/km (1292.87 lb/1000 ft)
