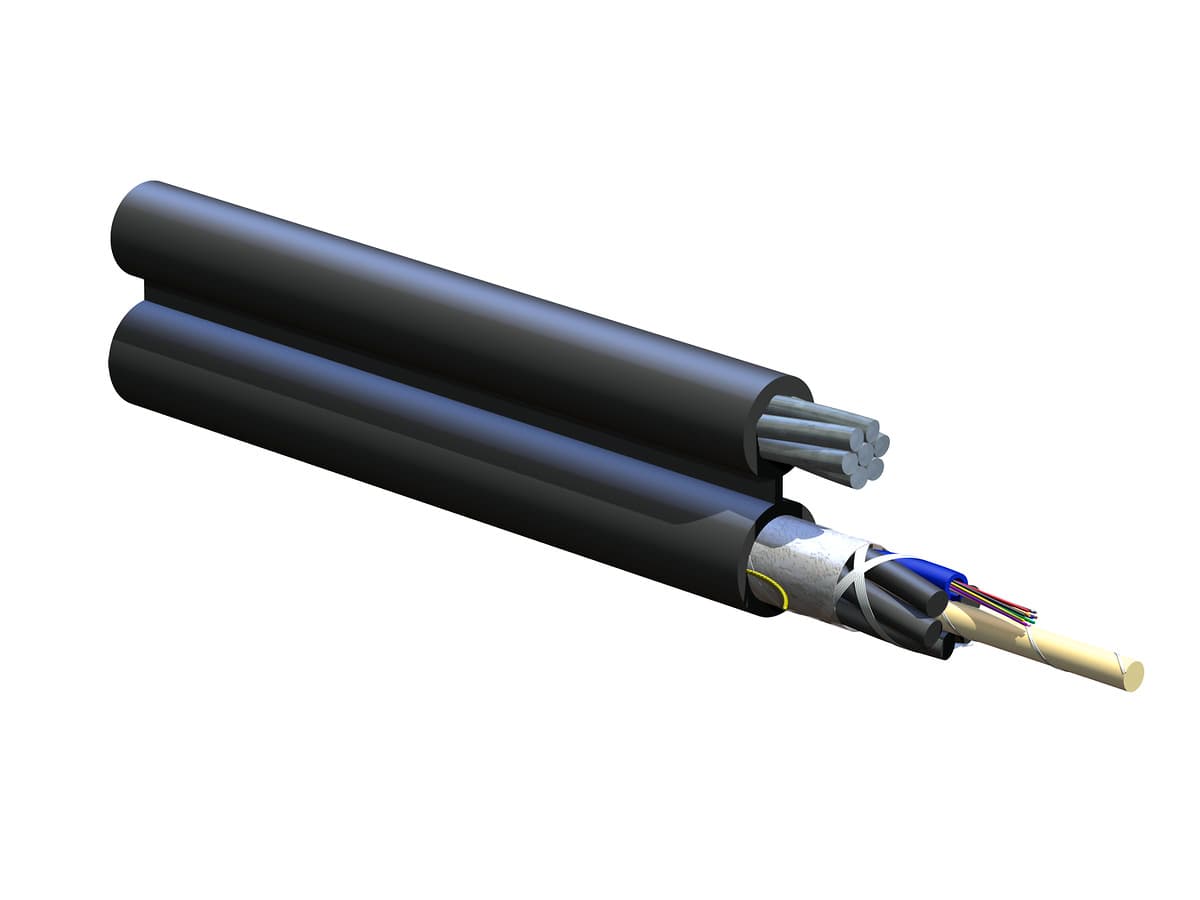

Corning 012EUA-T4101D20 – 12-Fiber 8.3/125 Single-Mode OS2, Loose Tube, Gel-Free, Figure-8 Aerial, Dielectric-Central-Member

Corning 012EUA-T4101D20 – 12-Fiber 8.3/125 Single-Mode OS2, Loose Tube, Gel-Free, Figure-8 Aerial, Dielectric-Central-Member

This 12-fiber, gel-free, loose tube aerial cable is designed for self-supporting outdoor installations, featuring a figure-8 design with a dielectric central member. Engineered for single-mode OS2 applications, it supports 1310, 1383, and 1550 nm wavelengths with low attenuation for reliable high-speed data transmission. The cable is protected by a black polyethylene jacket and includes a stranded steel messenger for aerial support, while water-swellable tape ensures moisture protection without the need for gel filling. Each fiber is color-coded according to Telcordia standards for easy identification, and the 2.5 mm buffer tubes keep fibers organized and secure. With robust mechanical specifications and flexible bend radius, this cable is ideal for long-term, high-performance outdoor aerial deployments.

General Specifications
Product Number: 012EUA-T4101D20
Cable Type: Loose Tube
Environment: Outdoor
Product Type: Self-Supporting, Figure-8
Fiber Category: Single-mode (OS2)
Application: Aerial
Cable Geometry: Other

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Common Installations: Outdoor self-supporting aerial
Design and Test Criteria: ANSI/ICEA S-87-640

Environmental Conditions
Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 12
Number of Ripcords: 1
Outer Jacket Color: Black
Outer Jacket Material: Polyethylene (PE)
Buffer Tube Color: Blue
Buffer Tube Diameter: 2.5 mm (0.1 in)
Messenger: Stranded steel
Number of Active Tubes: 1
Number of Filling Elements: 5
Number of Tube Positions: 6
Tape: Water-swellable
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12
Color Code Standards: Telcordia

Mechanical Specifications
Nominal Cable Height: 22.1 mm (0.87 in)
Nominal Outer Diameter: 10.5 mm (0.41 in)
Min. Bend Diameter Installation: 316 mm (12.44 in)
Min. Bend Diameter Operation: 210 mm (8.27 in)

Optical Characteristics
Fiber Code: E
Performance Option Code: 01
Fiber Category: OS2
Fiber Type: Single-mode (OS2) / 250 µm
Fiber Name: Single-mode (OS2)
Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths: 1310 nm / 1383 nm / 1550 nm
Fiber Compliance: ITU-T G.652.D

Dimensions
Cable Weight: 297 kg/km (199.57 lb/1000 ft)
