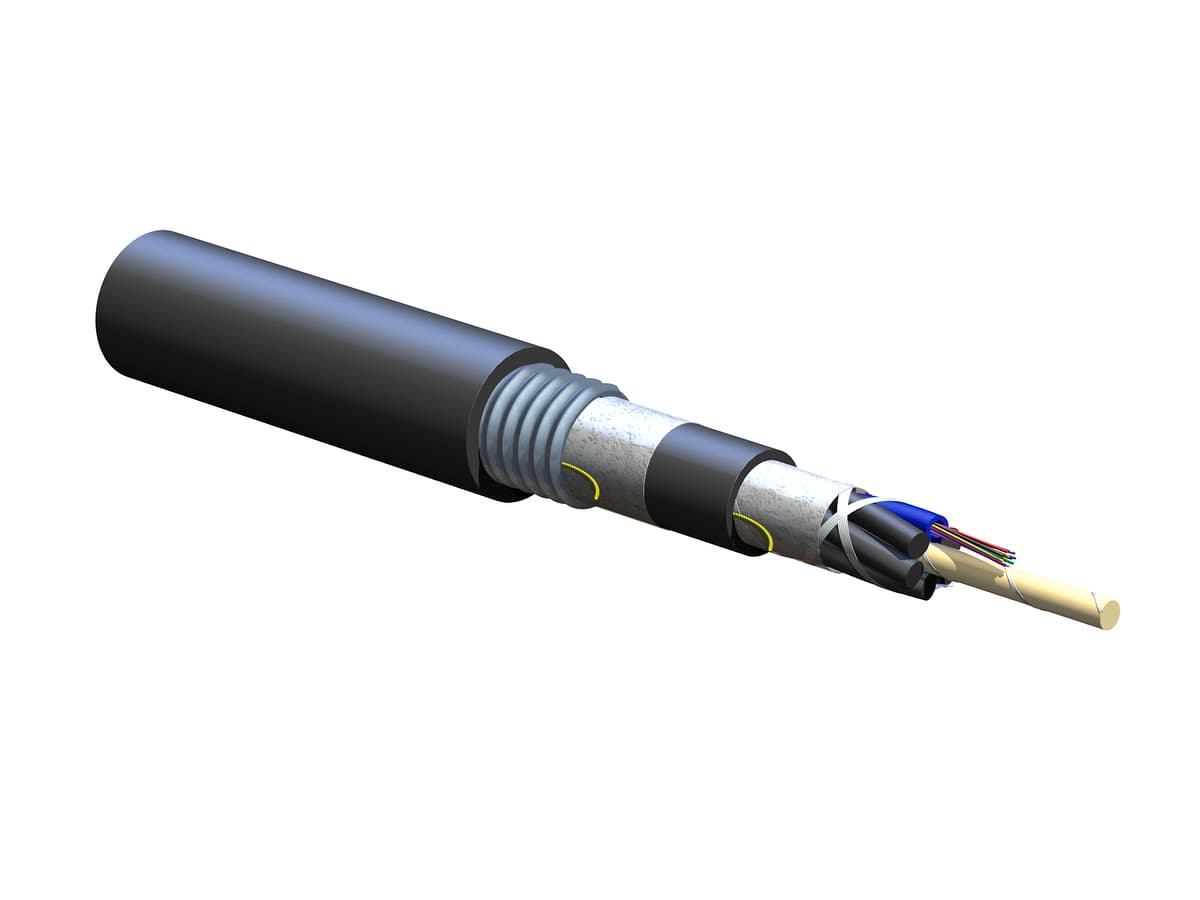

Corning 012EUZ-T4101D2N — Indoor/Outdoor Fiber Cable, OS2, Loose Tube, Black – 12 Fiber, Corrugated Steel Armor

This 12-fiber single-mode (OS2) loose tube cable is built for versatile indoor/outdoor use, offering exceptional durability and protection in challenging environments. It features corrugated steel armor for superior mechanical protection against crushing forces and rodent damage, while maintaining flame-retardant, low-smoke zero-halogen (FRNC/LSZH) materials for safety. Designed for aerial, direct burial, duct, riser, and general-purpose applications, it meets strict NEC, IEEE, and IEC standards, ensuring long-term reliability. The cable supports ITU-T G.652.D performance with maximum attenuation of 0.4/0.4/0.3 dB/km at 1310, 1383, and 1550 nm wavelengths. With a robust design, wide temperature tolerance, and Telcordia color-coded fibers, this cable delivers dependable high-speed connectivity in both indoor and outdoor installations.

General Specifications

Product Number: 012EUV-T4101D20
Cable Type: Loose Tube
Environment: Indoor/Outdoor
Product Type: Corrugated Steel Armor
Fiber Category: Single-mode (OS2)
Flame Rating: LSZH (OFCR-LS)
Application: Aerial, Direct Buried, Duct, General purpose, Horizontal, Riser
Cable Geometry: Round

Standards

RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: National Electrical Code® (NEC®) OFCR-LS/Riser, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034
Common Installations: Outdoor aerial and duct, indoor vertical riser, and general-purpose horizontal according to NEC Article 770
Design and Test Criteria: ANSI/ICEA S-104-696, UL 13, UL 444, UL 1277, UL 1685, CSA C22.2 No. 230 and No. 232, CSA OFC (FT-4-S1)

Environmental Conditions

Temperature Range, Installation: -30 °C to 60 °C (-22 °F to 140 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design

Central Element: Dielectric
Fiber Count: 12
Number of Ripcords: 3
Outer Jacket Color: Black
Outer Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
Tensile Strength Elements and/or Armoring - Layer 1: Corrugated steel tape armor
Buffer Tube Color: Blue
Buffer Tube Diameter: 2.5 mm (0.1 in)
Inner Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
Number of Active Tubes: 1
Number of Filling Elements: 5
Number of Tube Positions: 6
Tape: Water-swellable
Tape, Layer 2: Flame-retardant tape
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12
Color Code Standards: Telcordia

Mechanical Specifications

Max. Tensile Strength, Long-Term: 810 N (182.1 lbf)
Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
Min. Bend Radius Installation: 222 mm (8.74 in)
Min. Bend Radius Operation: 148 mm (5.83 in)
Nominal Outer Diameter: 14.8 mm (0.58 in)

Optical Characteristics

Fiber Code: E
Performance Option Code: 01
Fiber Category: OS2
Fiber Type: Single-mode (OS2) / 250 µm
Fiber Name: Single-mode (OS2)
Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths: 1310 nm / 1383 nm / 1550 nm
Fiber Compliance: ITU-T G.652.D

Dimensions

Cable Weight: 238.89 kg/km (160.53 lb/1000 ft)
