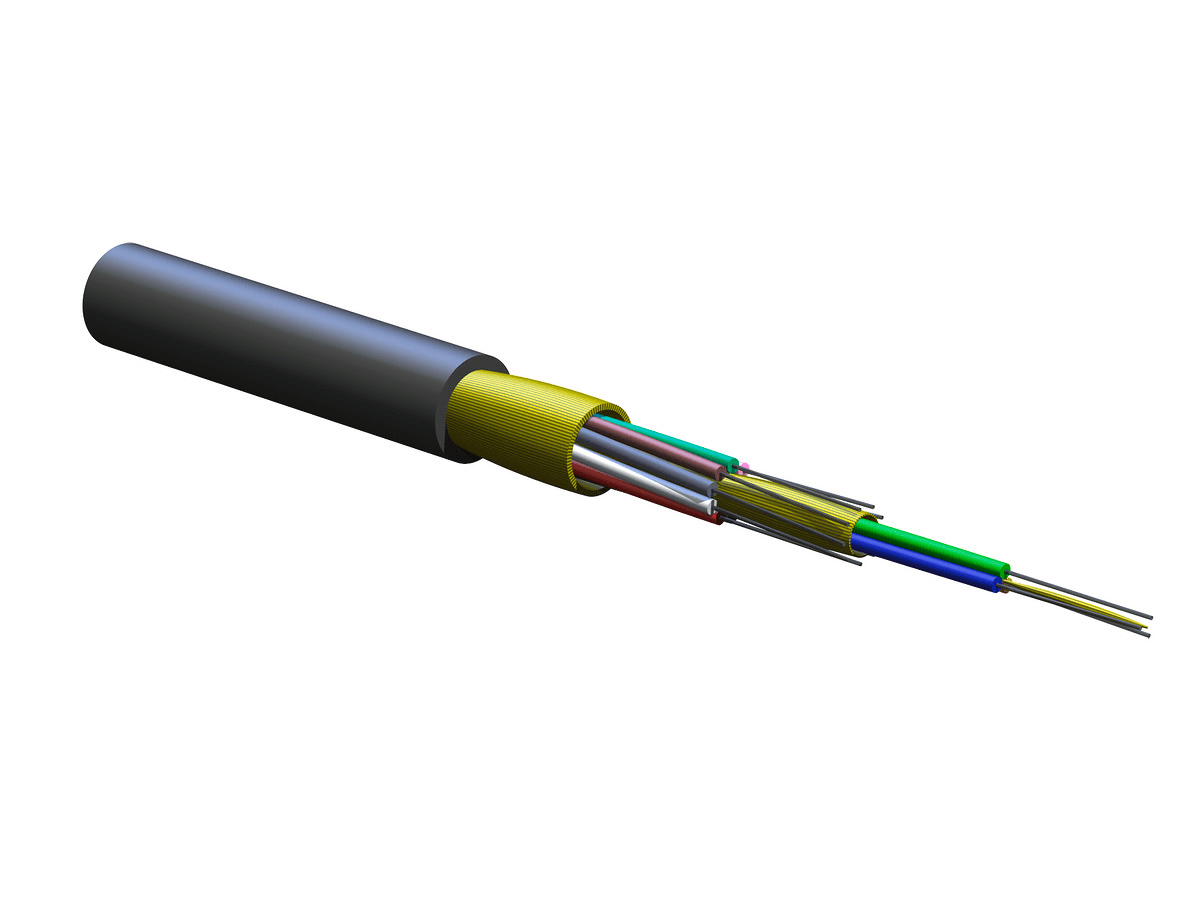

Corning 012J8F-31131-29, Riser 12 F Single-mode (OS2) FREEDM® One Tight-Buffered Cable
Description
Corning 012J8F-31131-29, Riser 12 F Single-mode (OS2) FREEDM® One Tight-Buffered Cable
Summary: Corning 012J8F-31131-29 is a Riser 12 F Single-mode (OS2) FREEDM® One Tight-Buffered Cable suitable for indoor/outdoor use, featuring a dielectric product type, flame rating of Riser (OFNR), and round cable geometry.
General Specifications:
- Product Number: 012J8F-31131-29
- Cable Type: Tight-Buffered
- Environment: Indoor/Outdoor
- Product Type: Dielectric
- Fiber Category: Single-mode (OS2)
- Flame Rating: Riser (OFNR)
- Application: Aerial, Duct, Horizontal, Riser
- Cable geometry: Round
Standards:
- RoHS: Free of hazardous substances according to RoHS 2011/65/EU
- Approvals and Listings: National Electrical Code® (NEC®) OFNR, UL-1666, CSA OFN FT-4
- Design and Test Criteria: ICEA S-104-696
Environmental Conditions:
- Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F )
- Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
- Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )
Cable Design:
- Central Element: Dielectric
- Fiber Count: 12
- Outer Jacket Color: Black
- Outer Jacket Material: Flame-Retardant, UV-Resistant
- Tensile Strength Elements and/or Armoring - Layer 1: Water-swellable strength members
- Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
- Flame Rating: Riser (OFNR)
Mechanical Specifications:
- Max. Tensile Strength, Long-Term: 200 N (44.96 lbf)
- Max. Tensile Strength, Short-Term: 675 N (151.75 lbf)
- Min. Bend Radius Installation: 97.5 mm (3.84 in)
- Min. Bend Radius Operation: 65 mm (2.56 in)
- Nominal Outer Diameter: 6.5 mm (0.26 in )
Optical Characteristics:
- Fiber Code: J
- Performance Option Code: 31
- Fiber Category: OS2
- Fiber Type: Single-mode (OS2) / 250 µm
- Fiber Name: ClearCurve® LBL
- Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
- Wavelengths: 1310 nm / 1383 nm / 1550 nm
- Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A2/B2
- Coating diameter: 242 µm
Dimensions:
- Cable Weight: 35.9 kg/km (24.12 lb/1000 ft)
Specifications
| Attribute | Value |
|---|---|
| Priced Per | FT |
