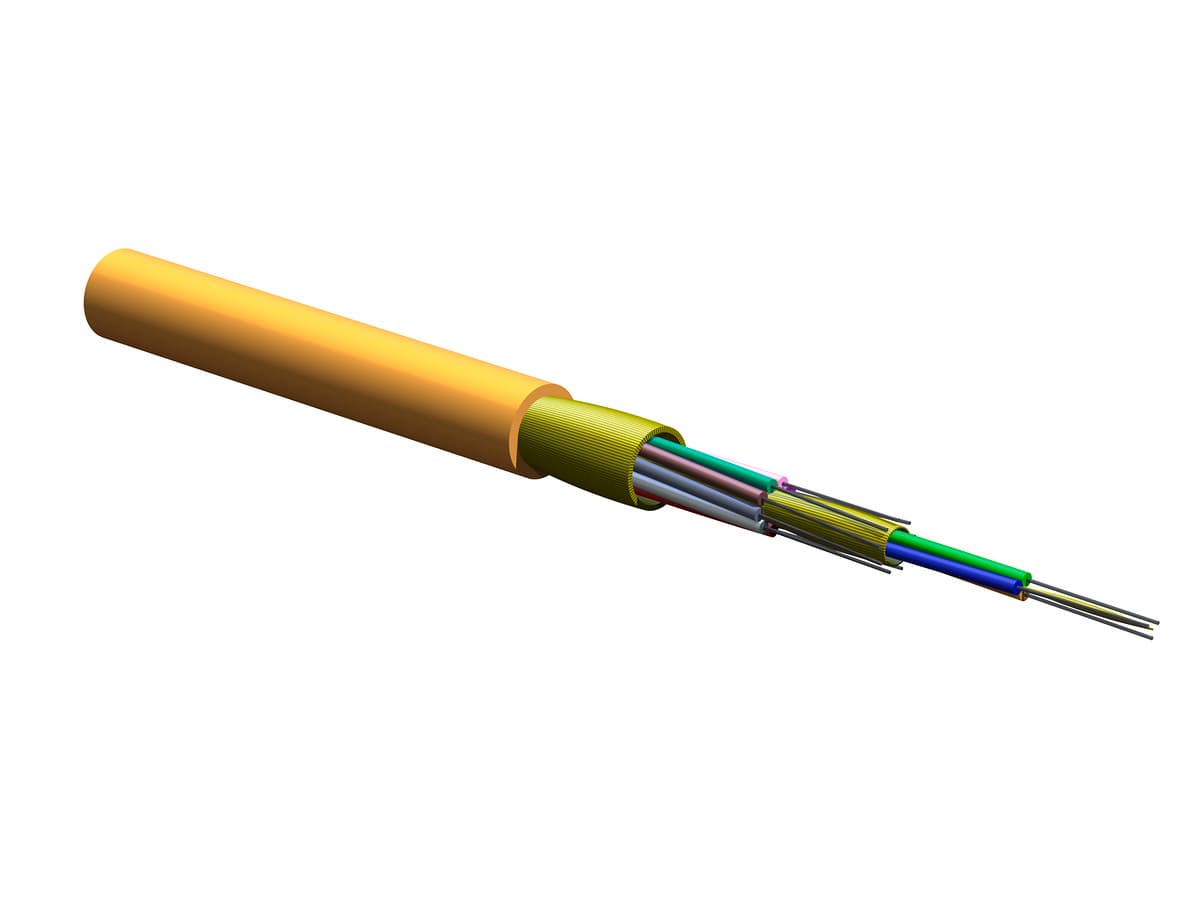

Corning 012K88-33130-29 – 12-Fiber 62.5/125 OM1 Tight-Buffered Plenum MIC, 3.4/1.0 dB/km, 200/500 MHz·km

Corning 012K88-33130-29 – 12-Fiber 62.5/125 OM1 Tight-Buffered Plenum MIC, 3.4/1.0 dB/km, 200/500 MHz·km

The 12-Fiber 62.5/125 OM1 Tight-Buffered Plenum MIC cable is designed for high-performance indoor applications. It features a flame-retardant orange jacket and is rated Plenum (OFNP) for compliance with strict safety standards. With a maximum attenuation of 3.4 dB/km at 850 nm and 1.0 dB/km at 1300 nm, it ensures reliable data transmission over distances of up to 550 m for Gigabit Ethernet. The cable supports multiple applications including general purpose, horizontal, plenum, and riser installations. Its durable construction includes dielectric strength members and tight-buffered fibers for enhanced protection and easy handling.

Product Number: 012K88-33130-29
Cable Type: Tight-Buffered
Environment: Indoor
Product Type: Distribution
Fiber Category: 62.5 µm MM (OM1)
Flame Rating: Plenum (OFNP)
Application: General purpose, Horizontal, Plenum, Riser
Cable Geometry: Round

Standards

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Approvals and Listings: National Electrical Code® (NEC®) OFNP, NFPA 262, CSA FT-6

• Design and Test Criteria: ICEA S-83-596

Environmental Conditions

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F)

• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F)

• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design

• Central Element: Yarn

• Fiber Count: 12

• Outer Jacket Color: Orange

• Outer Jacket Material: Flame-retardant

• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members

• Tensile Strength Elements and/or Armoring - Layer 2: Dielectric strength members

• Tight Buffer Color, Layer 2: Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua

Mechanical Specifications

• Max. Tensile Strength, Long-Term, ≤12F: 132 N (29.67 lbf)

• Max. Tensile Strength, Long-Term, >12F: 200 N (44.96 lbf)

• Max. Tensile Strength, Short-Term, ≤12F: 440 N (98.92 lbf)

• Max. Tensile Strength, Short-Term, >12F: 660 N (148.37 lbf)

• Min. Bend Radius Installation: 92 mm (3.62 in)

• Min. Bend Radius Operation: 60 mm (2.36 in)

• Nominal Outer Diameter: 6 mm (0.24 in)

Optical Characteristics

• Fiber Code: K

• Performance Option Code: 30

• Fiber Category: OM1

• Fiber Type: Multimode

• Fiber Name: 62.5 µm MM (OM1)

• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km

• Wavelengths: 850 nm / 1300 nm

• Fiber Compliance: ISO/IEC 11801

• Fiber Core Diameter: 62.5 µm

• Coating Diameter: 242 µm

• Serial 1 Gigabit Ethernet: 300 m / 550 m

• Serial 10 Gigabit Ethernet: 33 m / -

• Minimum Effective Modal Bandwidth (EMB): 220 MHz·km / -

• Min. Overfilled Launch (OFL) Bandwidth: 200 MHz·km / 500 MHz·km

Dimensions

• Cable Weight: 3.38 kg/km (2.27 lb/1000 ft)
