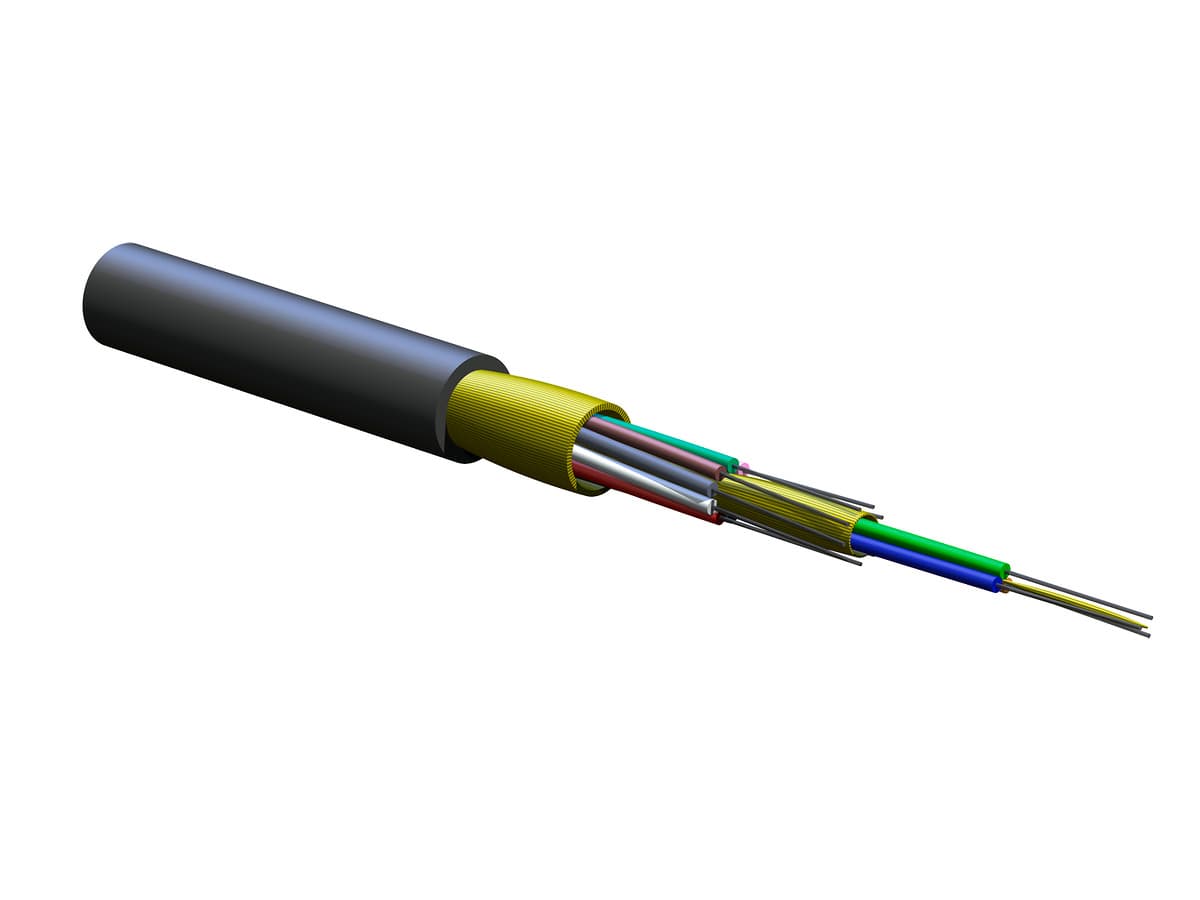

Corning 012K8P-31130-29 – 12-F Indoor/Outdoor Om1 Tight-Buffered Plenum Dielectric Freedm One Black

Corning 012K8P-31130-29 – 12-F Indoor/Outdoor Om1 Tight-Buffered Plenum Dielectric Freedm One Black

This 12-Fiber Indoor/Outdoor OM1 tight-buffered cable is a dielectric plenum-rated design engineered for versatility and high performance. With a 62.5 µm multimode fiber core (OM1), it ensures reliable data transmission at 850 nm and 1300 nm with attenuation rates of 3.4 dB/km and 1.0 dB/km. The cable features a flame-retardant, UV-resistant black jacket and water-swellable strength members for durability in plenum, riser, duct, aerial, and general-purpose installations. It is compliant with RoHS, NEC OFNP, and FT-6 standards, making it safe for demanding environments. With a 12-fiber count, color-coded tight buffers, and excellent bend radius performance, this cable is optimized for both Gigabit Ethernet and short-range 10 Gigabit Ethernet applications.

General Specifications

Product Number: 012K8P-31130-29
Cable Type: Tight-Buffered
Environment: Indoor/Outdoor
Product Type: Dielectric
Fiber Category: 62.5 µm MM (OM1)
Flame Rating: Plenum (OFNP)
Application: Aerial, Duct, General purpose, Horizontal, Riser, Plenum
Cable Geometry: Round

Standards

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Approvals and Listings: National Electrical Code® (NEC®) OFNP, FT-6

• Design and Test Criteria: ICEA S-104-696

Environmental Conditions

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F)

• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)

• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design

• Central Element: Dielectric

• Fiber Count: 12

• Outer Jacket Color: Black

• Outer Jacket Material: Flame-Retardant, UV-Resistant

• Tensile Strength Elements: Water-swellable strength members

• Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua

• Flame Rating: Plenum (OFNP)

Mechanical Specifications

• Max. Tensile Strength, Long-Term: 200 N (44.96 lbf)

• Max. Tensile Strength, Short-Term: 675 N (151.75 lbf)

• Min. Bend Radius Installation: 94.5 mm (3.72 in)

• Min. Bend Radius Operation: 63 mm (2.48 in)

• Nominal Outer Diameter: 6.3 mm (0.25 in)

Optical Characteristics

• Fiber Code: K

• Performance Option Code: 30

• Fiber Category: OM1

• Fiber Type: Multimode

• Fiber Name: 62.5 µm MM (OM1)

• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km

• Wavelengths: 850 nm / 1300 nm

• Fiber Compliance: ISO/IEC 11801

• Fiber Core Diameter: 62.5 µm

• Coating Diameter: 242 µm

• Serial 1 Gigabit Ethernet: 300 m / 550 m

• Serial 10 Gigabit Ethernet: 33 m / -

• Minimum Effective Modal Bandwidth (EMB): 220 MHz*km / -

• Min. Overfilled Launch (OFL) Bandwidth: 200 MHzkm / 500 MHzkm

Dimensions

• Cable Weight: 37.57 kg/km (25.25 lb/1000 ft)
