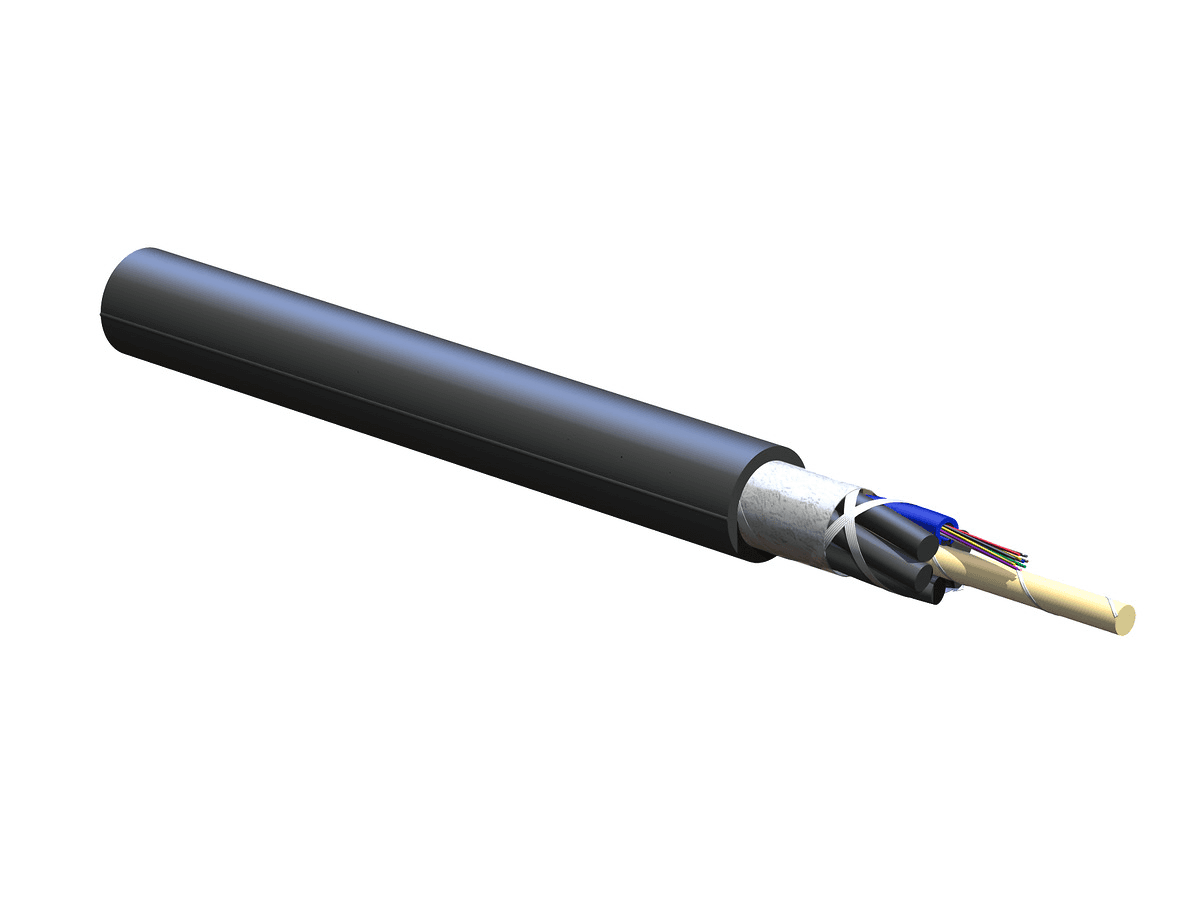

Corning 012KU4-T4730D20, ALTOS® 12 F, 62.5 µm Multimode (OM1) Loose Tube All-Dielectric Cable with FastAccess® Technology, Gel-Free

Corning 012KU4-T4730D20, ALTOS® 12 F, 62.5 µm Multimode (OM1) Loose Tube All-Dielectric Cable with FastAccess® Technology, Gel-Free

Summary: Corning 012KU4-T4730D20, ALTOS® 12 F, 62.5 µm Multimode (OM1) Loose Tube All-Dielectric Cable with FastAccess® Technology, Gel-Free is designed for outdoor use and features a round cable geometry. It meets RoHS standards and has a temperature range suitable for various environmental conditions.

General Specifications:

• Product Number: 012KU4-T4730D20
• Cable Type: Loose Tube
• Environment: Outdoor
• Product Type: Dielectric
• Fiber Category: 62.5 µm MM (OM1)
• Application: Aerial, Duct
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Common Installations: Outdoor lashed aerial and duct, indoor when installed according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: ANSI/ICEA S-87-640

Environmental Conditions:

• Notes: Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results.
• Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 12
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Buffer Tube Color: Blue
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Number of Active Tubes: 1
• Number of Filling Elements: 5
• Number of Tube Positions: 6
• Tape: Water-swellable
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 890 N (200.08 lbf)
• Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
• Nominal Outer Diameter: 10.5 mm (0.41 in )
• Min. Bend Diameter Installation: 316 mm (12.44 in)
• Min. Bend Diameter Operation: 210 mm (8.27 in)

Optical Characteristics:

• Fiber Code: K
• Performance Option Code: 30
• Fiber Category: OM1
• Fiber Type: Multimode
• Fiber Name: 62.5 µm MM (OM1)
• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: ISO/IEC 11801
• Fiber Core Diameter: 62.5 µm
• Coating diameter: 242 µm
• Serial 1 Gigabit Ethernet: 300 m / 550 m
• Serial 10 Gigabit Ethernet: 33 m / -
• Minimum Effective Modal Bandwidth (EMB): 220 MHz*km / -
• Min. Overfilled Launch (OFL) Bandwidth: 200 MHz*km / 500 MHz*km

Dimensions:

• Cable Weight: 73 kg/km (49.05 lb/1000 ft)
