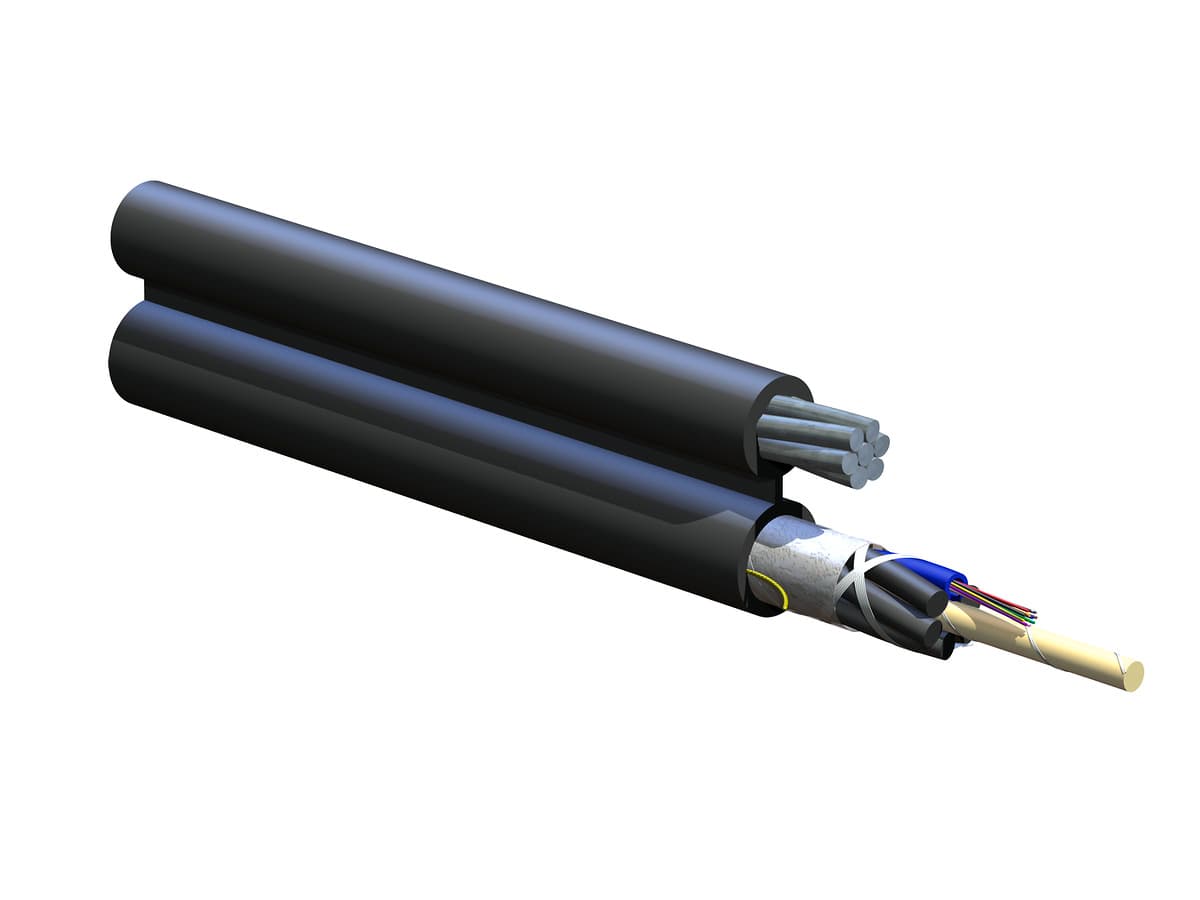

Corning 012KUA-T4130D20 – Figure-8 Aerial Fiber Optic Cable, OM1, 62.5/125 µm, Dielectric Central Member, 12 Fiber, ALTOS®

Corning 012KUA-T4130D20 – Figure-8 Aerial Fiber Optic Cable, OM1, 62.5/125 µm, Dielectric Central Member, 12 Fiber, ALTOS®

This 12-fiber OM1 figure-8 aerial fiber optic cable is designed for self-supporting outdoor installations. Featuring a dielectric central member with a stranded steel messenger, the cable provides robust aerial performance while maintaining light weight and flexibility. Constructed with loose tube design, water-swellable elements, and a black polyethylene jacket, it ensures protection against environmental factors and complies with ANSI/ICEA S-87-640 and Telcordia color standards. The cable delivers multimode 62.5/125 µm performance with maximum attenuation of 3.4 dB/km at 850 nm and 1.0 dB/km at 1300 nm, supporting 1G and 10G Ethernet over standard distances. Ideal for reliable aerial network deployment, the Altos figure-8 cable combines durability, ease of installation, and high-performance optical transmission.

General Specifications
Product Number: 012KUA-T4130D20
Cable Type: Loose Tube
Environment: Outdoor
Product Type: Self-Supporting, Figure-8
Fiber Category: 62.5 µm MM (OM1)
Application: Aerial
Cable Geometry: Other

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Common Installations: Outdoor self-supporting aerial
Design and Test Criteria: ANSI/ICEA S-87-640

Environmental Conditions
Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 12
Number of Ripcords: 1
Outer Jacket Color: Black
Outer Jacket Material: Polyethylene (PE)
Buffer Tube Color: Blue
Buffer Tube Diameter: 2.5 mm (0.1 in)
Messenger: Stranded steel
Number of Active Tubes: 1
Number of Filling Elements: 5
Number of Tube Positions: 6
Tape: Water-swellable
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12
Color Code Standards: Telcordia

Mechanical Specifications
Nominal Cable Height: 22.1 mm (0.87 in)
Nominal Outer Diameter: 10.5 mm (0.41 in)
Min. Bend Diameter Installation: 316 mm (12.44 in)
Min. Bend Diameter Operation: 210 mm (8.27 in)

Optical Characteristics
Fiber Code: K
Performance Option Code: 30
Fiber Category: OM1
Fiber Type: Multimode
Fiber Name: 62.5 µm MM (OM1)
Maximum Attenuation: 3.4 dB/km / 1.0 dB/km
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: ISO/IEC 11801
Fiber Core Diameter: 62.5 µm
Coating Diameter: 242 µm
Serial 1 Gigabit Ethernet: 300 m / 550 m
Serial 10 Gigabit Ethernet: 33 m / -
Minimum Effective Modal Bandwidth (EMB): 220 MHzkm / -
Min. Overfilled Launch (OFL) Bandwidth: 200 MHzkm / 500 MHz*km

Dimensions
Cable Weight: 297 kg/km (199.57 lb/1000 ft)
