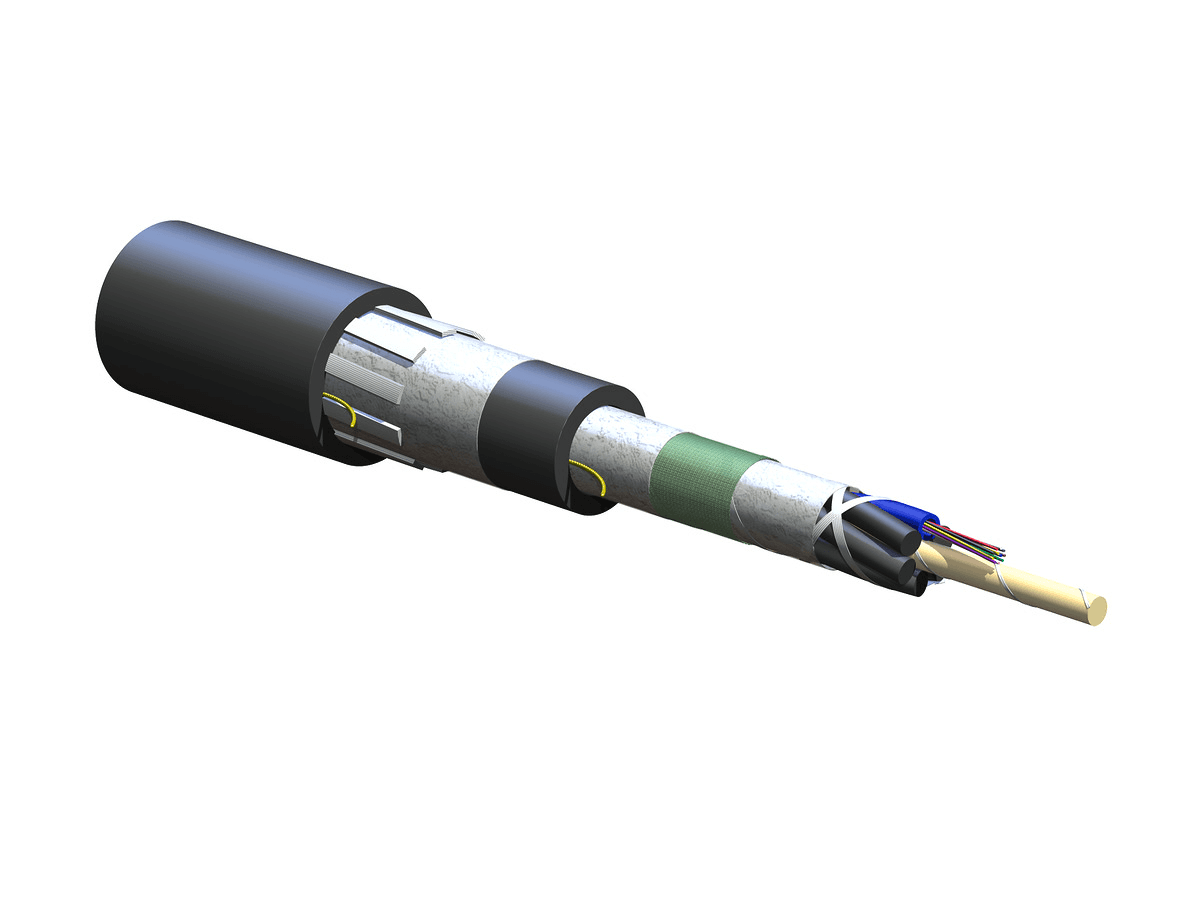

Corning 012KUL-T4630D2N, 12F Industrial LSZH™ Tray-Rated Double-Jacket Cable, 62.5 µm multimode (OM1), Loose Tube, Gel-Free

Corning 012KUL-T4630D2N, 12F Industrial LSZH™ Tray-Rated Double-Jacket Cable, 62.5 µm multimode (OM1), Loose Tube, Gel-Free

Summary: Corning 012KUL-T4630D2N is a 12F Industrial LSZH™ Tray-Rated Double-Jacket Cable designed for indoor/outdoor use with a flame rating of LSZH (OFN-LS). It features a loose tube construction, dielectric product type, and fiber category of 62.5 µm multimode (OM1) suitable for various applications.

General Specifications:

• Product Number: 012KUL-T4630D2N
• Cable Type: Loose Tube
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: 62.5 µm MM (OM1)
• Flame Rating: LSZH (OFN-LS)
• Application: Aerial, Direct Buried, Duct, Horizontal, Tray-Rated
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCR-LS/Riser, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034
• Common Installations: Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770
• Design and Test Criteria: ANSI/ICEA S-104-696, UL 13, UL 444, UL 1277, UL 1685, CSA C22.2, No. 230 and No. 232, CSA OFC (FT-4-S1)

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 60 °C (-22 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 12
• Number of Ripcords: 4
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Buffer Tube Color: Blue
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Inner Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
• Number of Active Tubes: 1
• Number of Filling Elements: 5
• Number of Tube Positions: 6
• Tape: Water-swellable
• Tape, Layer 1: Water-swellable
• Tape, Layer 2: Flame-retardant tape
• Tape, Layer 3: Water-swellable
• Tape, Layer 4: Water-swellable
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 1500 N (337.21 lbf)
• Max. Tensile Strength, Short-Term: 4500 N (1011.64 lbf)
• Min. Bend Radius Installation: 269 mm (10.59 in)
• Min. Bend Radius Operation: 179 mm (7.05 in)
• Nominal Outer Diameter: 17.9 mm (0.7 in )

Optical Characteristics:

• Fiber Code: K
• Performance Option Code: 30
• Fiber Category: OM1
• Fiber Type: Multimode
• Fiber Name: 62.5 µm MM (OM1)
• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km
• Wavelengths: 850
