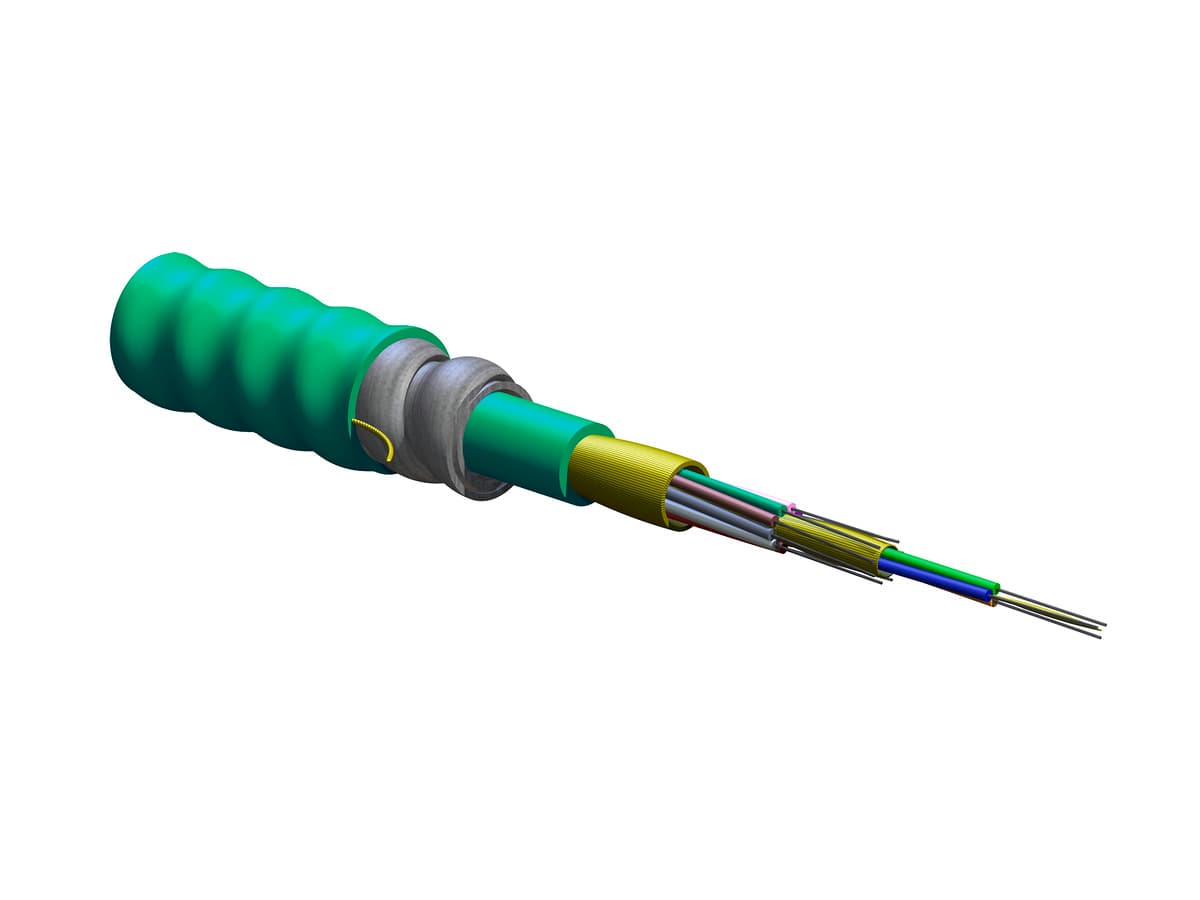

Corning 012T81-33180-A1 – Interlocking Fiber Cable, OM3, Tight Buffered, 50 µm, 12 Fiber, Riser Rated

Corning 012T81-33180-A1 – Interlocking Fiber Cable, OM3, Tight Buffered, 50 µm, 12 Fiber, Riser Rated

This 12-fiber tight-buffered interlocking cable features OM3 multimode performance with a 50 µm core diameter, ideal for high-speed horizontal and riser applications. It is riser-rated (OFCR) with flame-retardant aqua outer jacket and inner jacket, and provides robust dielectric strength members along with interlocking armor for enhanced mechanical protection. Designed for indoor installations, it offers long-term tensile strength of up to 200 N and short-term tensile strength of 660 N, with a minimum bend radius of 170 mm during installation. The cable supports 1 Gigabit and 10 Gigabit Ethernet, delivering maximum attenuation of 2.8 dB/km at 850 nm and 1.0 dB/km at 1300 nm. Optimized for reliable high-bandwidth connectivity, it provides an effective modal bandwidth (EMB) of 2000 MHz*km.

General Specifications
Product Number: 012T81-33180-A1
Cable Type: Tight-Buffered
Environment: Indoor
Product Type: Interlocking Armor
Fiber Category: 50 µm MM (OM3)
Flame Rating: Riser (OFCR)
Application: Horizontal, Riser
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: NEC® OFCR, UL 1666, CSA FT-4
Design and Test Criteria: ICEA S-83-596

Environmental Conditions
Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F)
Temperature Range, Operation: -20 °C to 70 °C (-4 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Yarn
Fiber Count: 12
Number of Ripcords: 2
Outer Jacket Color: Aqua
Outer Jacket Material: Flame-retardant
Inner Jacket Material: Flame-retardant
Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
Tensile Strength Elements and/or Armoring - Layer 2: Dielectric strength members
Tensile Strength Elements and/or Armoring - Layer 3: Interlocking Armor
Tight Buffer Color: Blue, Orange, Green
Tight Buffer Color, Layer 2: Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua

Mechanical Specifications
Max. Tensile Strength, Long-Term, ≤12F: 200 N (44.96 lbf)
Max. Tensile Strength, Short-Term, ≤12F: 660 N (148.37 lbf)
Max. Tensile Strength, Long-Term, >12F: 400 N (89.92 lbf)
Max. Tensile Strength, Short-Term, >12F: 1320 N (296.75 lbf)
Min. Bend Radius Installation: 170 mm (6.69 in)
Min. Bend Radius Operation: 113 mm (4.45 in)
Nominal Inner Cable Diameter: 6.1 mm (0.24 in)
Nominal Outer Diameter: 11.3 mm (0.44 in)

Optical Characteristics
Fiber Code: T
Performance Option Code: 80
Fiber Category: OM3
Fiber Type: Multimode
Fiber Name: 50 µm MM (OM3)
Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: IEC 60793-2-10
Fiber Core Diameter: 50 µm
Serial 1 Gigabit Ethernet: 1000 m / 600 m
Serial 10 Gigabit Ethernet: 300 m / -
Minimum Effective Modal Bandwidth (EMB): 2000 MHzkm / -
Min. Overfilled Launch (OFL) Bandwidth: 1500 MHzkm / 500 MHz*km

Dimensions
Cable Weight: 105 kg/km (70.56 lb/1000 ft)
