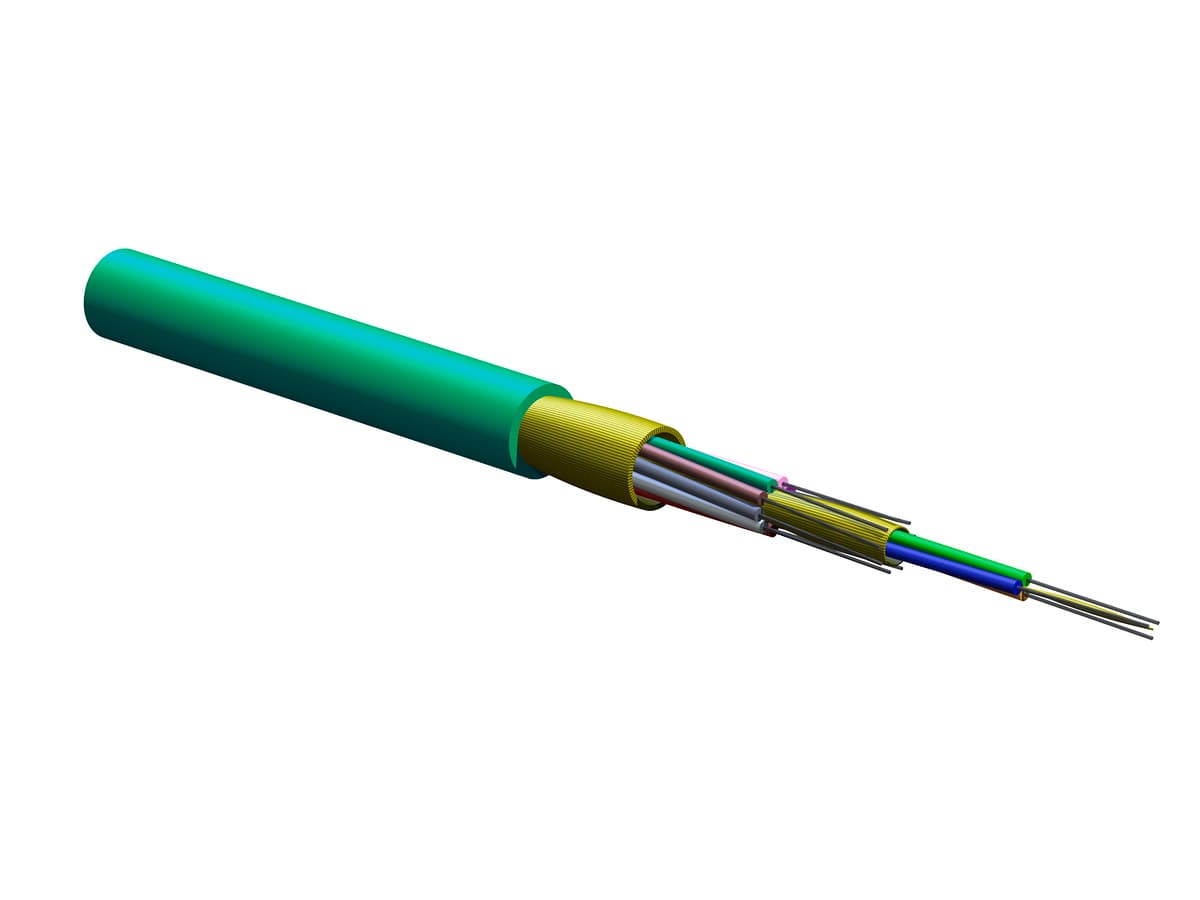

Corning 012T88-33190-29 – 12-F 50/125 Om4 Tb Plenum Mic 2.8/1.0 Db/Km 3500/500 Mhz*Km 10g 550m Clearcurve

Corning 012T88-33190-29 – 12-F 50/125 Om4 Tb Plenum Mic 2.8/1.0 Db/Km 3500/500 Mhz*Km 10g 550m Clearcurve

This 12-fiber tight-buffered distribution cable is an indoor-rated OM4 multimode solution designed for high-performance data networks. With a plenum (OFNP) flame rating, it meets stringent safety requirements for general purpose, horizontal, plenum, and riser applications. The cable features an aqua flame-retardant outer jacket, color-coded tight buffer fibers, and dielectric strength members for added durability. It supports Gigabit Ethernet up to 1000 m and 10 Gigabit Ethernet up to 550 m, with high modal bandwidth of 4700 MHz*km at 850 nm. Engineered for reliable performance, it complies with IEC standards and offers low attenuation of 2.8 dB/km at 850 nm and 1.0 dB/km at 1300 nm.

General Specifications

Product Number: 012T88-33190-29
Cable Type: Tight-Buffered
Environment: Indoor
Product Type: Distribution
Fiber Category: 50 µm MM (OM4)
Flame Rating: Plenum (OFNP)
Application: General purpose, Horizontal, Plenum, Riser
Cable Geometry: Round

Standards

RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: National Electrical Code® (NEC®) OFNP, NFPA 262, CSA FT-6
Design and Test Criteria: ICEA S-83-596

Environmental Conditions

Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F)
Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design

Central Element: Yarn
Fiber Count: 12
Outer Jacket Color: Aqua
Outer Jacket Material: Flame-retardant
Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
Tensile Strength Elements and/or Armoring - Layer 2: Dielectric strength members
Tight Buffer Color: Blue, Orange, Green
Tight Buffer Color, Layer 2: Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Flame Rating: Plenum (OFNP)

Mechanical Specifications

Max. Tensile Strength, Long-Term, ≤12F: 132 N (29.67 lbf)
Max. Tensile Strength, Long-Term, >12F: 200 N (44.96 lbf)
Max. Tensile Strength, Short-Term, ≤12F: 440 N (98.92 lbf)
Max. Tensile Strength, Short-Term, >12F: 660 N (148.37 lbf)
Min. Bend Radius Installation: 92 mm (3.62 in)
Min. Bend Radius Operation: 60 mm (2.36 in)
Nominal Outer Diameter: 6 mm (0.24 in)

Optical Characteristics

Fiber Code: T
Performance Option Code: 90
Fiber Category: OM4
Fiber Type: Multimode
Fiber Name: 50 µm MM (OM4)
Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: IEC 60793-2-10
Fiber Core Diameter: 50 µm
Serial 1 Gigabit Ethernet: 1000 m / 600 m
Serial 10 Gigabit Ethernet: 550 m / -
Minimum Effective Modal Bandwidth (EMB): 4700 MHzkm / -
Min. Overfilled Launch (OFL) Bandwidth: 3500 MHzkm / 500 MHz*km

Dimensions

Cable Weight: 3.38 kg/km (2.27 lb/1000 ft)
