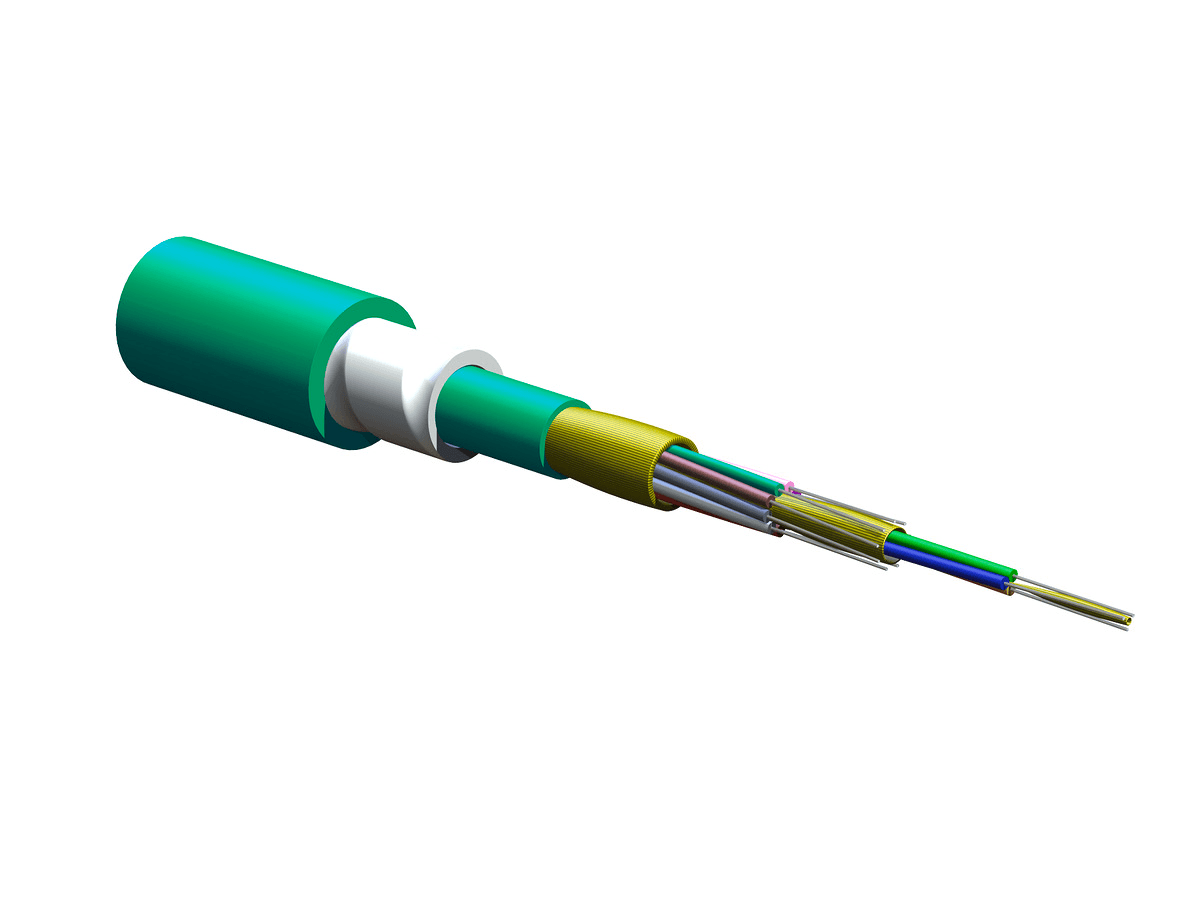

Summary: The Corning 012T88-33191-D3 is a plenum 12 F MIC® DX tight-buffered armored cable designed for indoor use. It features a 50 µm multimode fiber category with extended 10G distance capabilities (OM4).

General Specifications:

• Product Number: 012T88-33191-D3
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Dielectric armor
• Fiber Category: 50 µm MM (OM4+)
• Flame Rating: Plenum (OFNP)
• Application: Horizontal, Plenum
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCP, NFPA 262, CSA FT-6
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Fiber Count: 12
• Outer Jacket Color: Aqua
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Tensile Strength Elements and/or Armoring - Layer 2: Dielectric strength members
• Inner Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 3: Dielectric armor
• Tight Buffer Color, Layer 1: Blue, Orange, Green
• Tight Buffer Color, Layer 2: Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 593 N (133.31 lbf)
• Max. Tensile Strength, Short-Term: 1000 N (224.81 lbf)
• Min. Bend Radius Installation: 173 mm (6.81 in)
• Min. Bend Radius Operation: 115 mm (4.53 in)
• Nominal Inner Cable Diameter: 5.6 mm (0.22 in)
• Nominal Outer Diameter: 11.5 mm (0.45 in )

Optical Characteristics:

• Fiber Code: T
• Performance Option Code: 91
• Fiber Category: OM4 Extended Distance
• Fiber Type: Multimode
• Fiber Name: 50 µm MM (OM4+)
• Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: IEC 60793-2-10
• Fiber Core Diameter: 50 µm
• Serial 1 Gigabit Ethernet: 1100 m / 600 m
• Serial 10 Gigabit Ethernet: 600 m / -
• Minimum Effective Modal Bandwidth (EMB): 5350 MHz*km / -
• Min. Overfilled Launch (OFL) Bandwidth: 3500 MHz*km / 500 MHz*km
