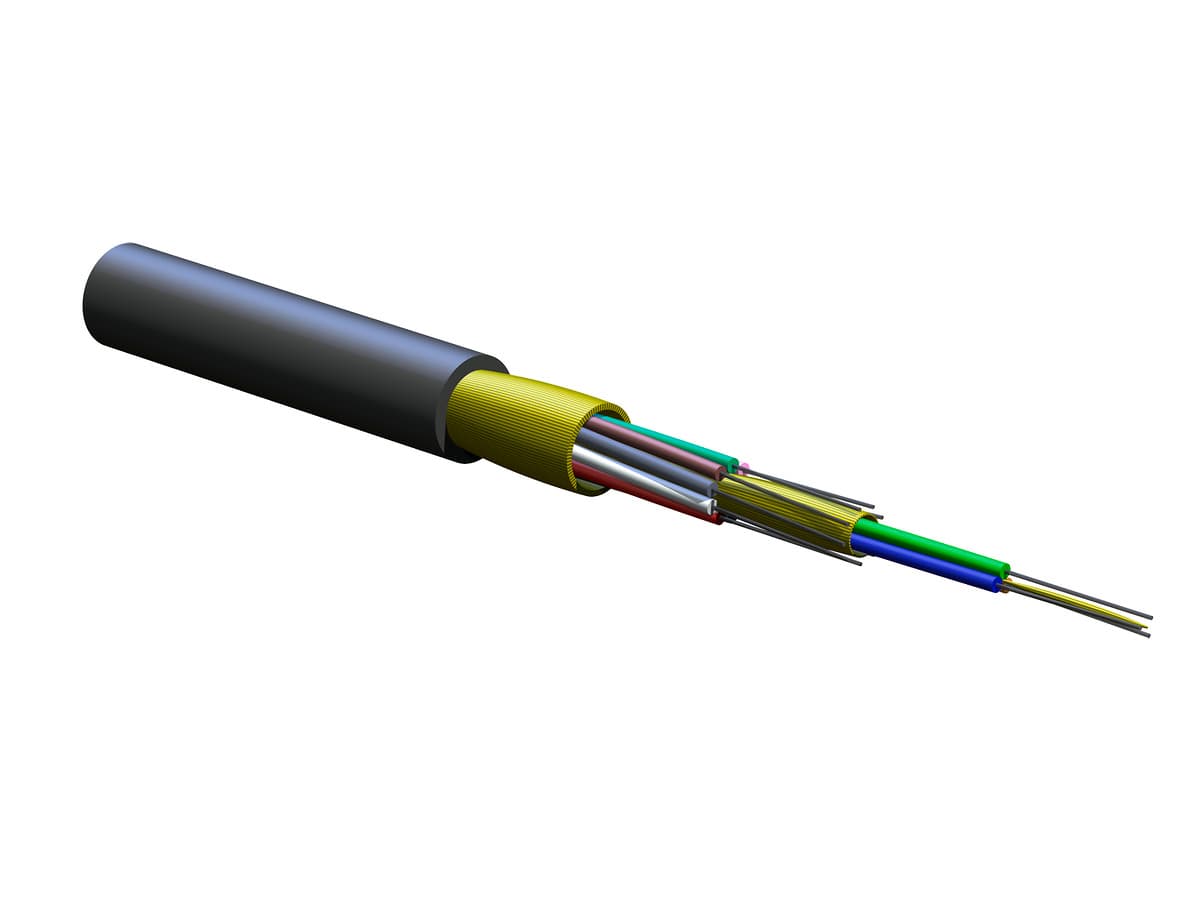

Corning 012T8P-31180-29 — 12-F OM3 Tight-Buffered Plenum FREEDM ONE, 2.8/1.0 dB/km, 1500/500 MHz·km, Pretium 300, ClearCurve

Corning 012T8P-31180-29 — 12-F OM3 Tight-Buffered Plenum FREEDM ONE, 2.8/1.0 dB/km, 1500/500 MHz·km, Pretium 300, ClearCurve

This 12-fiber OM3 tight-buffered plenum cable from the FREEDM ONE series is designed for high-performance indoor and outdoor networking applications, including aerial, duct, riser, horizontal, and plenum environments. It supports 50 µm multimode (OM3) fibers with low attenuation of 2.8 dB/km at 850 nm and 1.0 dB/km at 1300 nm, delivering excellent bandwidth performance of 1500/500 MHz·km and Pretium 300 ClearCurve bend-insensitive fiber technology. Built with a durable flame-retardant, UV-resistant plenum-rated (OFNP) black jacket and water-swellable strength members, it ensures superior protection against environmental challenges. The compact 6.3 mm diameter and lightweight 37.57 kg/km design allow for easy installation with bend radii of 94.5 mm (installation) and 63 mm (operation). Fully compliant with NEC, FT-6, and IEC standards, this cable is RoHS-compliant for safe, reliable, and high-speed data transmission in demanding network infrastructures.

General Specifications
Product Number: 012T8P-31180-29
Cable Type: Tight-Buffered
Environment: Indoor/Outdoor
Product Type: Dielectric
Fiber Category: 50 µm MM (OM3)
Flame Rating: Plenum (OFNP)
Application: Aerial, Duct, General purpose, Horizontal, Riser, Plenum
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: National Electrical Code® (NEC®) OFNP, FT-6
Design and Test Criteria: ICEA S-104-696

Environmental Conditions
Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 12
Outer Jacket Color: Black
Outer Jacket Material: Flame-Retardant, UV-Resistant
Tensile Strength Elements and/or Armoring - Layer 1: Water-swellable strength members
Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Flame Rating: Plenum (OFNP)

Mechanical Specifications
Max. Tensile Strength, Long-Term: 200 N (44.96 lbf)
Max. Tensile Strength, Short-Term: 675 N (151.75 lbf)
Min. Bend Radius Installation: 94.5 mm (3.72 in)
Min. Bend Radius Operation: 63 mm (2.48 in)
Nominal Outer Diameter: 6.3 mm (0.25 in)

Optical Characteristics
Fiber Code: T
Performance Option Code: 80
Fiber Category: OM3
Fiber Type: Multimode
Fiber Name: 50 µm MM (OM3)
Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: IEC 60793-2-10
Fiber Core Diameter: 50 µm
Serial 1 Gigabit Ethernet: 1000 m / 600 m
Serial 10 Gigabit Ethernet: 300 m / -
Minimum Effective Modal Bandwidth (EMB): 2000 MHz·km / -
Min. Overfilled Launch (OFL) Bandwidth: 1500 MHz·km / 500 MHz·km

Dimensions
Cable Weight: 37.57 kg/km (25.25 lb/1000 ft)
