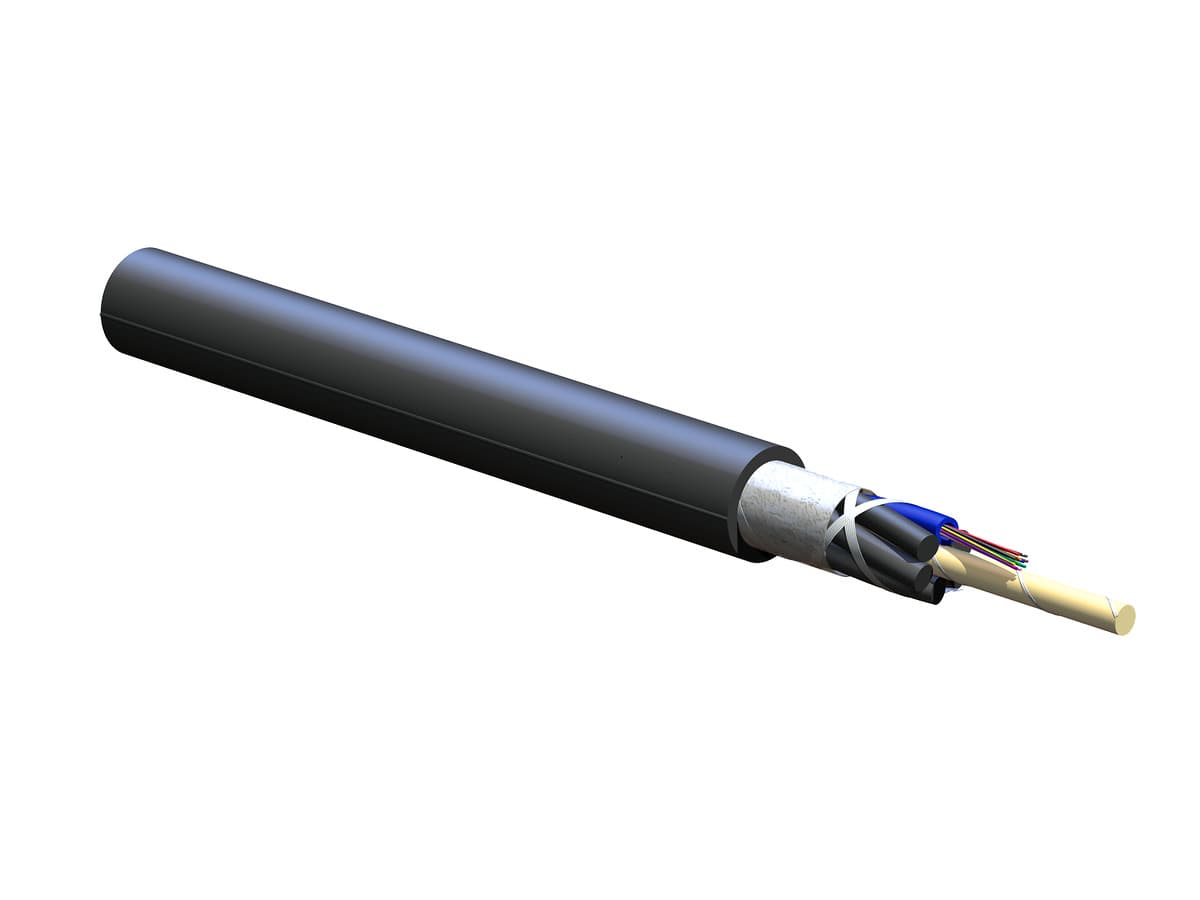

Corning 012TU4-T4731D20 – 12-F OM2 50/125 LT Duct/Aerial Outdoor, Gel-Free, 3.0/1.0 dB/km, Altos Fast Access

Corning 012TU4-T4731D20 – 12-F OM2 50/125 LT Duct/Aerial Outdoor, Gel-Free, 3.0/1.0 dB/km, Altos Fast Access

This 12-fiber OM2 loose tube cable is designed for reliable outdoor duct and aerial installations, offering gel-free construction for simplified handling and fast access. It features a dielectric central element and a durable black polyethylene jacket, providing excellent mechanical and environmental protection. Water-swellable tape ensures moisture resistance, while fibers are color-coded per Telcordia standards for easy identification. Supporting 50 µm multimode OM2 fibers, the cable provides low attenuation at 850/1300 nm and high bandwidth for 1G and 10G Ethernet applications. Engineered to ANSI/ICEA S-87-640 standards, this cable delivers strong performance, durability, and efficient deployment for outdoor network infrastructure.

General Specifications
Product Number: 012TU4-T4731D20
Cable Type: Loose Tube
Environment: Outdoor
Product Type: Dielectric
Fiber Category: 50 µm MM (OM2)
Application: Aerial, Duct
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Common Installations: Outdoor lashed aerial and duct, indoor when installed according to National Electrical Code® (NEC®) Article 770
Design and Test Criteria: ANSI/ICEA S-87-640

Environmental Conditions
Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 12
Outer Jacket Color: Black
Outer Jacket Material: Polyethylene (PE)
Buffer Tube Color: Blue
Buffer Tube Diameter: 2.5 mm (0.1 in)
Number of Active Tubes: 1
Number of Filling Elements: 5
Number of Tube Positions: 6
Tape: Water-swellable
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12
Color Code Standards: Telcordia

Mechanical Specifications
Max. Tensile Strength, Long-Term: 890 N (200.08 lbf)
Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
Nominal Outer Diameter: 10.5 mm (0.41 in)
Min. Bend Diameter Installation: 316 mm (12.44 in)
Min. Bend Diameter Operation: 210 mm (8.27 in)

Optical Characteristics
Fiber Code: T
Performance Option Code: 31
Fiber Category: OM2
Fiber Type: Multimode
Fiber Name: 50 µm MM (OM2)
Maximum Attenuation: 3.0 dB/km / 1.0 dB/km
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: IEC 60793-2-10
Fiber Core Diameter: 50 µm
Serial 1 Gigabit Ethernet: 750 m / 600 m
Serial 10 Gigabit Ethernet: 150 m / -
Minimum Effective Modal Bandwidth (EMB): 950 MHzkm / -
Min. Overfilled Launch (OFL) Bandwidth: 700 MHzkm / 500 MHz*km

Dimensions
Cable Weight: 73 kg/km (49.05 lb/1000 ft)
