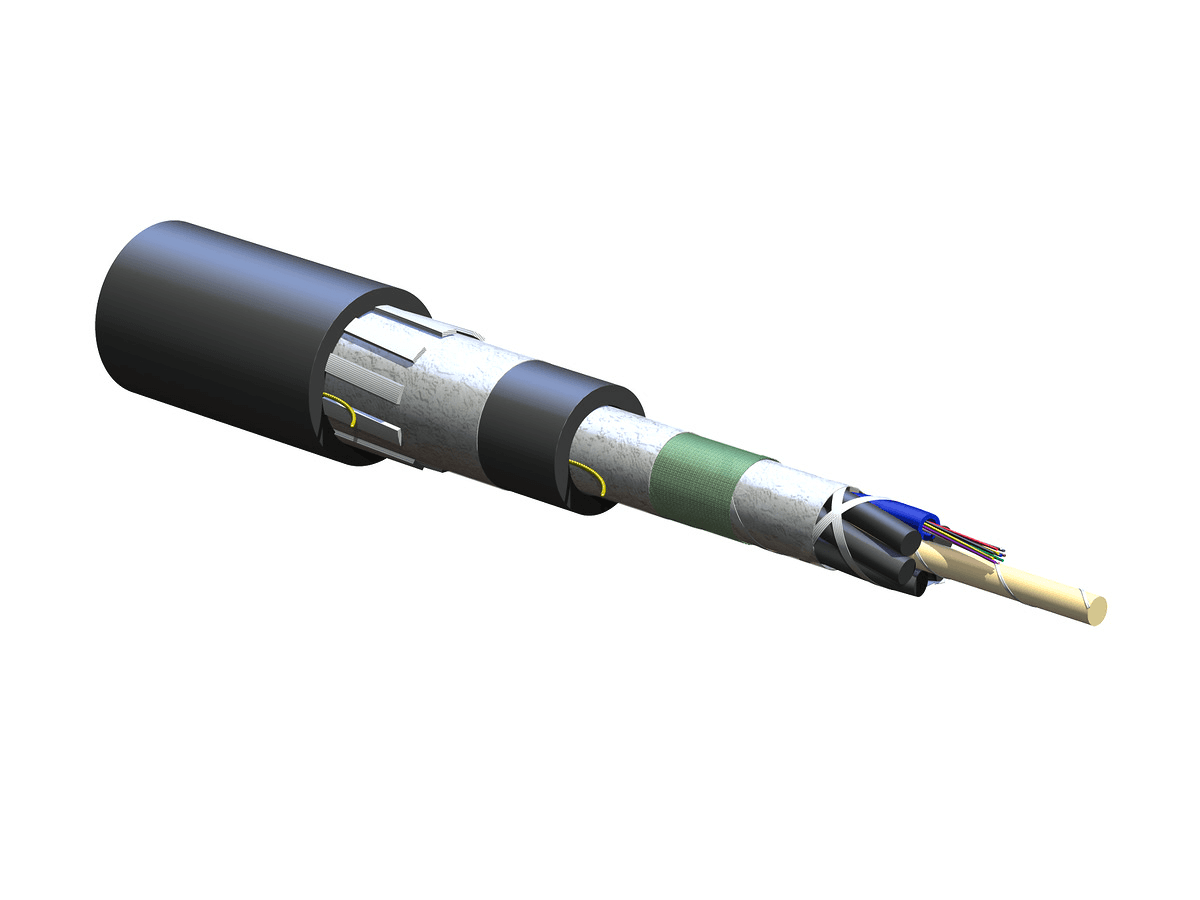

Corning 012TUK-T3690D2M, 12 F LSZH™ Riser Indoor/Outdoor Mining and Petrochemical Tray-Rated Loose Tube Gel-Free Cable, 50 µm multimode (OM4)

Corning 012TUK-T3690D2M, 12 F LSZH™ Riser Indoor/Outdoor Mining and Petrochemical Tray-Rated Loose Tube Gel-Free Cable, 50 µm multimode (OM4)

Summary:

This Corning 012TUK-T3690D2M cable is a 12 F LSZH™ Riser Indoor/Outdoor Mining and Petrochemical Tray-Rated Loose Tube Gel-Free Cable designed for various applications with its dielectric construction and 50 µm multimode fiber category (OM4).

General Specifications:

• Product Number: 012TUK-T3690D2M
• Cable Type: Loose Tube
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: 50 µm MM (OM4)
• Flame Rating: LSZH (OFNR-LS)
• Application: Aerial, Duct, Tray-Rated
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCR-LS/Riser, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 60 °C (-22 °F to 140 °F )
• Temperature Range, Operation: -50 °C to 75 °C (-58 °F to 167 °F )
• Temperature Range, Storage: -50 °C to 75 °C (-58 °F to 167 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 12
• Number of Ripcords: 4
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Buffer Tube Color: Blue
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Inner Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
• Number of Active Tubes: 1
• Number of Filling Elements: 5
• Number of Tube Positions: 6
• Tape, Layer 1: Water-swellable
• Tape, Layer 2: Flame-retardant tape
• Tape, Layer 3: Water-swellable
• Tape, Layer 4: Water-swellable
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 1500 N (337.21 lbf)
• Max. Tensile Strength, Short-Term: 4500 N (1011.64 lbf)
• Min. Bend Radius Installation: 264 mm (10.39 in)
• Min. Bend Radius Operation: 176 mm (6.93 in)
• Nominal Outer Diameter: 17.6 mm (0.69 in )

Optical Characteristics:

• Fiber Code: T
• Performance Option Code: 90
• Fiber Category: OM4
• Fiber Type: Multimode
• Fiber Name: 50 µm MM (OM4)
• Maximum Attenuation: 3.0 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: IEC 60793-2-10
• Fiber Core Diameter: 50 µm
• Serial 1 Gigabit Ethernet: 1000 m / 600 m
• Serial 10 Gigabit Ethernet: 550 m / -
• Minimum Effective Modal Bandwidth (EMB): 4700 MHz*km / -
• Min. Overfilled Launch (OFL) Bandwidth: 3500 MHz*km / 500 MHz*km
