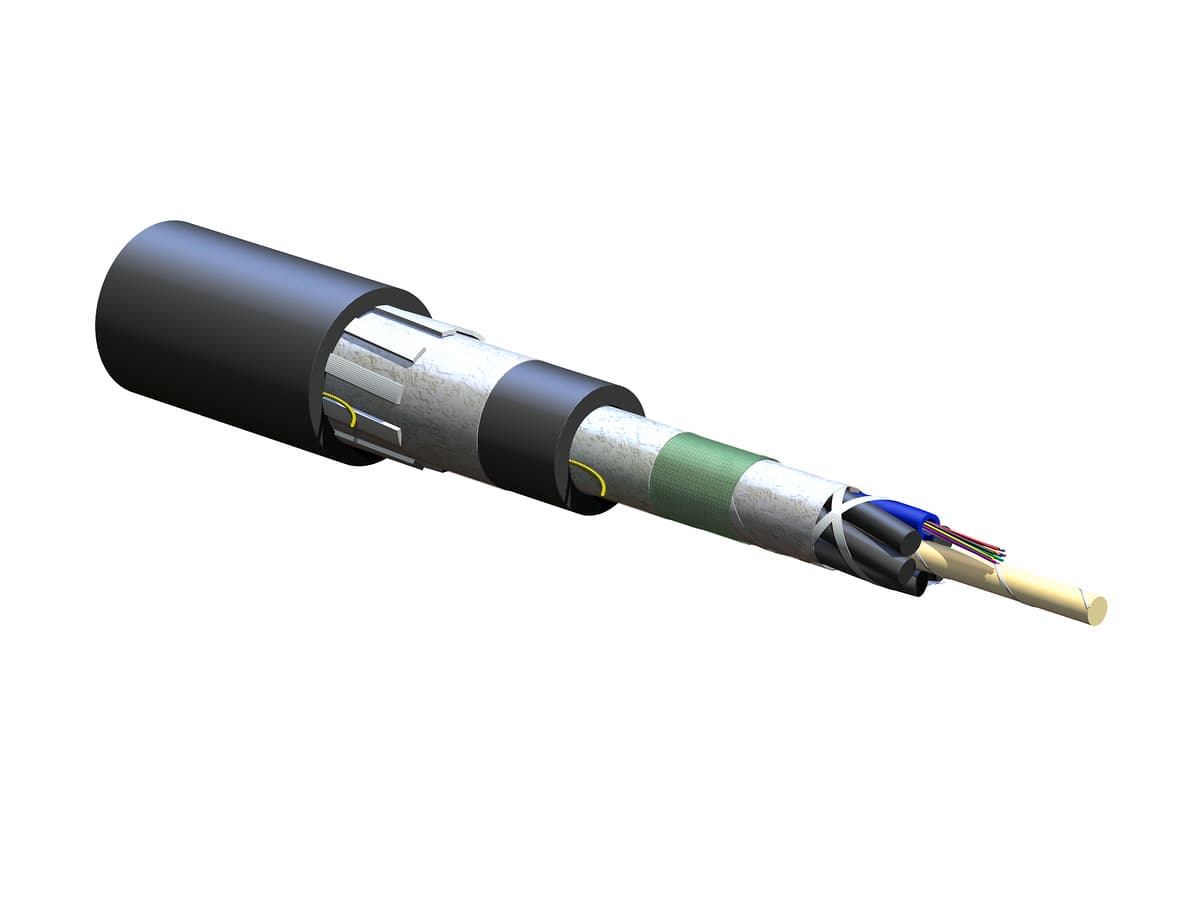

Corning 012TUL-T4680D2N — Indoor/Outdoor Fiber Cable, OM3, Loose Tube, Black, Armored

Corning 012TUL-T4680D2N — Indoor/Outdoor Fiber Cable, OM3, Loose Tube, Black, Armored

The Indoor/Outdoor Fiber Cable, OM3, Loose Tube, Black, Armored is a high-performance, dielectric, loose tube fiber optic cable designed for aerial, duct, and tray-rated applications. With a 12-fiber OM3 multimode configuration, it supports high-speed data transmission with minimum effective modal bandwidth (EMB) of 950 MHz·km and OFL bandwidth of 1500 MHz·km at 850 nm. This LSZH (Low Smoke Zero Halogen) flame-rated cable is sunlight resistant, suitable for direct burial, and engineered to withstand harsh installation environments with a temperature range from -40 °C to 70 °C. Its rugged construction features multiple water-swellable tapes, FRNC/LSZH inner and outer jackets, and dielectric strength members for exceptional tensile strength (up to 4500 N short-term). Ideal for industrial and telecom networks, it combines durability, safety, and optical performance in one robust solution.

General Specifications
Product Number: 012TUK-T4680D2N
Cable Type: Loose Tube
Environment: Indoor/Outdoor
Product Type: Dielectric
Fiber Category: 50 µm MM (OM3)
Flame Rating: LSZH (OFNR-LS)
Application: Aerial, Duct, Tray-Rated
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: National Electrical Code® (NEC®) OFCR-LS/Riser, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034

Environmental Conditions
Temperature Range, Installation: -30 °C to 60 °C (-22 °F to 140 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 12
Number of Ripcords: 4
Outer Jacket Color: Black
Outer Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
Buffer Tube Color: Blue
Buffer Tube Diameter: 2.5 mm (0.1 in)
Inner Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
Number of Active Tubes: 1
Number of Filling Elements: 5
Number of Tube Positions: 6
Tape, Layer 1: Water-swellable
Tape, Layer 2: Flame-retardant tape
Tape, Layer 3: Water-swellable
Tape, Layer 4: Water-swellable
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12
Color Code Standards: Telcordia

Mechanical Specifications
Max. Tensile Strength, Long-Term: 1500 N (337.21 lbf)
Max. Tensile Strength, Short-Term: 4500 N (1011.64 lbf)
Min. Bend Radius Installation: 269 mm (10.59 in)
Min. Bend Radius Operation: 179 mm (7.05 in)
Nominal Outer Diameter: 17.9 mm (0.7 in)

Optical Characteristics
Fiber Code: T
Performance Option Code: 80
Fiber Category: OM3
Fiber Type: Multimode
Fiber Name: 50 µm MM (OM3)
Maximum Attenuation: 3.0 dB/km / 1.0 dB/km
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: IEC 60793-2-10
Fiber Core Diameter: 50 µm
Serial 1 Gigabit Ethernet: 1000 m / 600 m
Serial 10 Gigabit Ethernet: 300 m / -
Minimum Effective Modal Bandwidth (EMB): 950 MHz·km / -
Min. Overfilled Launch (OFL) Bandwidth: 1500 MHz·km / - 500 MHz·km

Dimensions
Cable Weight: 312 kg/km (209.65 lb/1000 ft)
